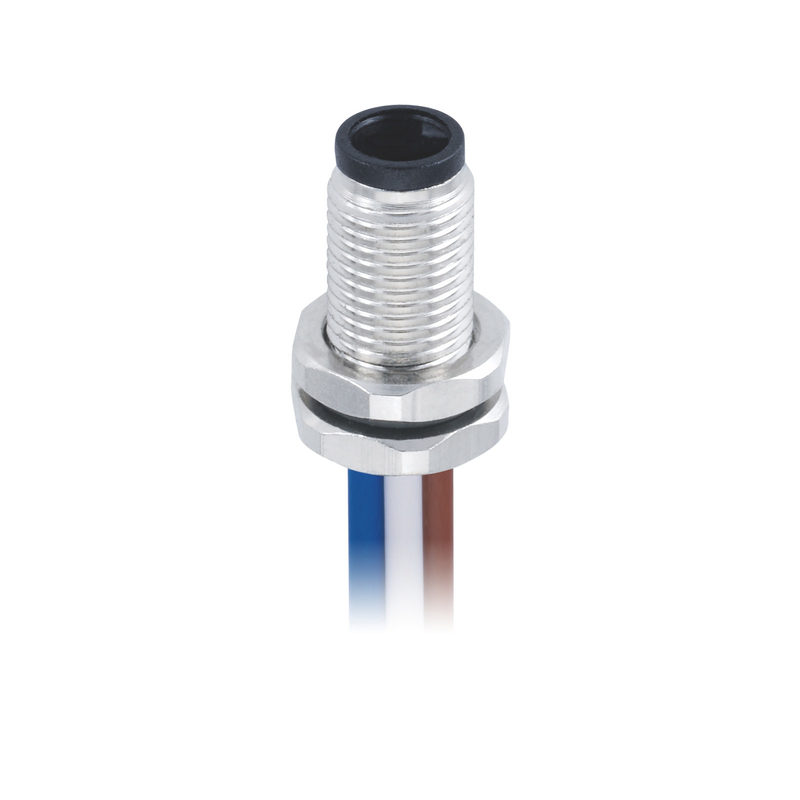

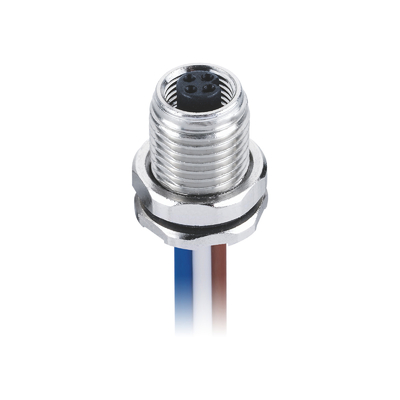

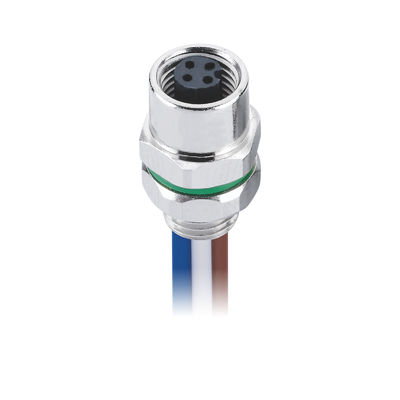

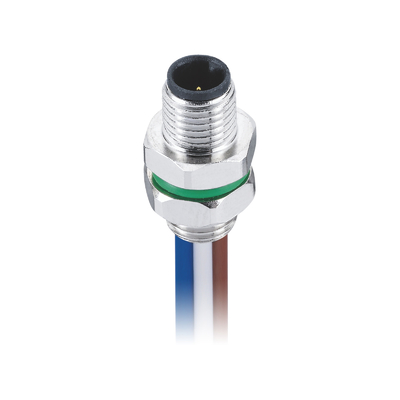

1A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector

1A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector

  • 1A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector
  • 1A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector
  • 1A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector
  • 1A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector
1A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: M5 Panel Mount Connector Contacts No.: 3Pin, 4Pin
Length Opions: 0.2, 0.3, 0.5M Reference Standard: IEC 61076-2-105
Contact: Male: Brass, Female: Phosphor Bronze Rated Current: 1A
Rated Voltage: 60V Protection Degree: IP67
High Light:

1A 60V M5 Circular Connector

,

Panel Mount M5 Circular Connector

,

M5 Panel Mount Connector

M5 A Code Male Female Circular Panel Connector Front Rear Mount With Single Wires

Connector Technical Data
Contacts No. 3Pin, 4Pin
Reference standard IEC 61076-2-105
Rated current 1A
Rated voltage 60V
Impulse voltage 500V
Locking system M5×0.5 screw
Tightening torque Recommend: 0.5Nm, Max: 0.2Nm
Termination Soldering
Wire gauge 0.14mm²(AWG 26)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤6mΩ
Over-molding TPU
Contact carrier TPU+GF, Black
Screw nut Brass, CNC, Nickel-plated
Contact Male: Brass, Female: Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67
Pollution degree 3


Description

The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.



Features of M5 connector cables



● Straight connector or 90 degree connector are available

● 3Pin, 4Pin are optional

● Cable length is at buyer's option

● IP67, water and oil resistant

● M8 & M12 connectors also available





FAQ



● What is M5 connector?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.



● What is Panel Mount connector?
Panel Mount is a mechanical feature or features built into the design of a connector half. It allows the connector to be secured to an equipment panel, external case or enclosure. Often (but not always), connectors fitted with panel mount features will be cable connectors.

1A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector 01A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector 11A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector 21A 60V M5 Circular Connector A Code 3Pin 4Pin Panel Mount Connector 3
