Waterproof M5 Female Connector 4Pin Molded Right Angled Connector

Waterproof M5 Female Connector 4Pin Molded Right Angled Connector

  • Waterproof M5 Female Connector 4Pin Molded Right Angled Connector
Waterproof M5 Female Connector 4Pin Molded Right Angled Connector
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MA04C2RSAB26CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: M5 Cable Female Right Angled Connector Contacts No.: 3Pin, 4 Pin
Over-molding: TPU Contact Carrier: TPU+GF, Black
Screw Nut: Brass, CNC, Nickel-plated Contact: Brass
Reference Standard: IEC 61076-2-105 Warranty: 1 Year
High Light:

Waterproof M5 Female Connector

,

4Pin M5 Female Connector

,

M5 Right Angled Connector

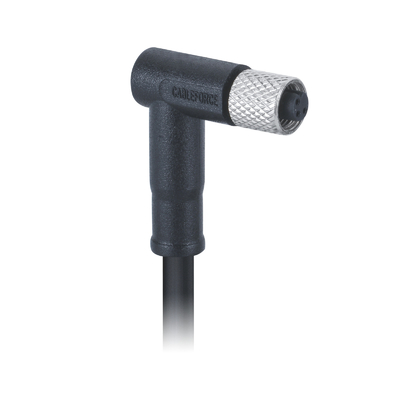

M5 A Code Circular Female Right Angled Connector 4Pin Molded With 1M PVC Cable

Connector Technical Data
Contacts No. 3Pin, 4Pin
Reference standard IEC 61076-2-105
Rated current 1A
Rated voltage 60V
Locking system M5×0.5 screw
Tightening torque Recommend: 0.1Nm, Max: 0.15Nm
Wire gauge 0.14mm²(AWG 26)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤6mΩ
Over-molding TPU
Contact carrier TPU+GF, Black
Screw nut Brass, CNC, Nickel-plated
Contact Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67
Pollution degree 3


Description


The most compact connector type in the M-Series range, our waterproof M5 sensor connectors come in straight and angled forms with PVC or PUR overmolded cable connector options and a variety of panel mount receptacles. With a screw coupling mechanism and IP67 rating, this M5 circular connector product line is particularly suited to automotive, process control, commercial electronics & instrumentation applications that require reliable and robust miniature sensors.



CABLEFORCE Products Features

● 3Pin, 4Pin are available
● RoHS, CE compliant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements
● We can also quote on a huge selection of products that are not normally stocked
● High quality gold-plated solid phosphor bronze contacts, ≥600 times mating life
● Anti-vibration locking screw design
● Support samples retail and bulk orders





FAQ



● What is M5 connector?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.
