Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |
| Model Number: | MA04C5LSAB26CK10 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |

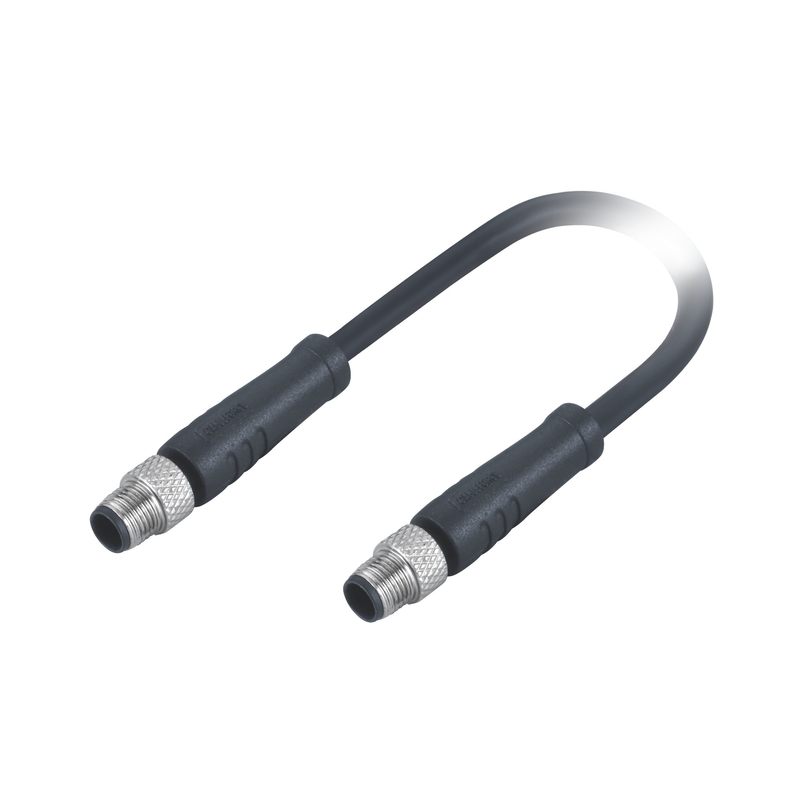

| Connector Type: | M5 Male To Male Connecting Cable | Contacts No.: | 3Pin, 4Pin |
|---|---|---|---|
| Reference Standard: | IEC 61076-2-105 | Contact: | Male: Brass, Female: Phosphor Bronze |
| Rated Current: | 1A | Rated Voltage: | 60V |
| Insulation Resistance: | ≥100MΩ | Contact Resistance: | ≤6mΩ |
| High Light: | IP67 M5 Circular Connector,4Pin M5 Circular Connector,M5 Male To Male Connector |
||
| Connector Technical Data | |
| Contacts No. | 3Pin, 4Pin |
| Reference standard | IEC 61076-2-105 |
| Rated current | 1A |
| Rated voltage | 60V |
| Impulse voltage | 500V |
| Locking system | M5×0.5 screw |
| Tightening torque | Recommend: 0.1Nm, Max: 0.15Nm |
| Termination | Soldering |
| Wire gauge | 0.14mm²(AWG 26) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤6mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF, Black |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Male: Brass |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67 |
| Pollution degree | 3 |
Features of M5 connector cables
● Straight connector or 90 degree connector are available
● 3Pin, 4Pin are optional
● Cable length is at buyer's option
● IP67, water and oil resistant
● M8 & M12 connectors also available
FAQ
● What is M5 connector?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.
