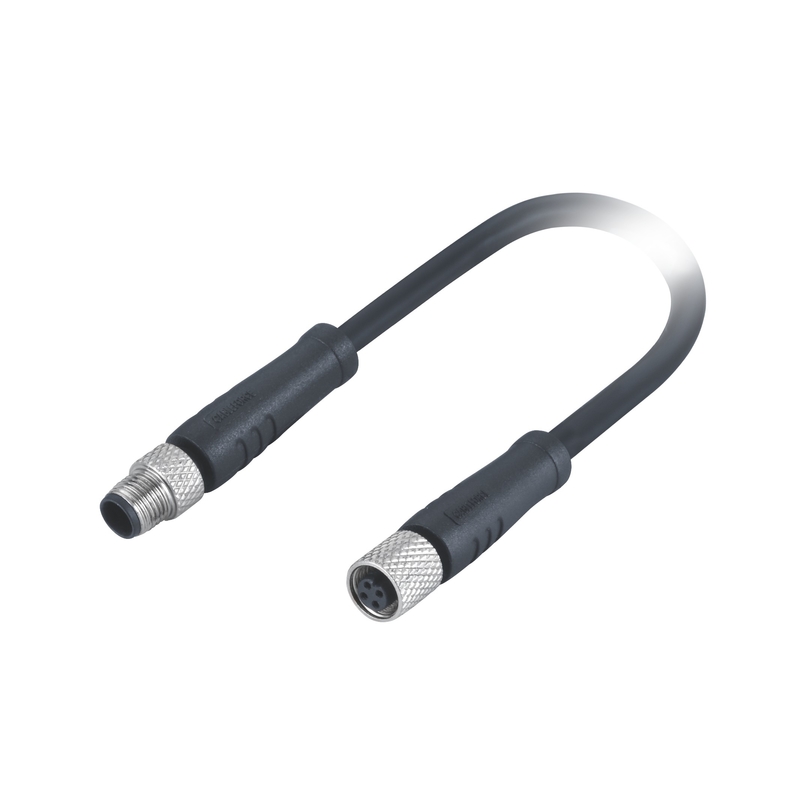

3Pin Molded M5 Circular Connector Male To Female Connector With 1M PVC Cable

3Pin Molded M5 Circular Connector Male To Female Connector With 1M PVC Cable

  • 3Pin Molded M5 Circular Connector Male To Female Connector With 1M PVC Cable
3Pin Molded M5 Circular Connector Male To Female Connector With 1M PVC Cable
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MA03C3LSAB26CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: M5 Male To Female Connecting Cable Contacts No.: 3Pin, 4Pin
Rated Current: 1A Rated Voltage: 60V
Insulation Resistance: ≥100MΩ Contact Resistance: ≤6mΩ
Contact: Male: Brass, Female: Phosphor Bronze Reference Standard: IEC 61076-2-105
High Light:

3Pin Molde M5 Circular Connector

,

Male To Female M5 Circular Connector

,

M5 Male To Female Connector

M5 A Code Circular Male To Female Connector 3Pin Molded With 1M PVC Cable

Connector Technical Data
Contacts No. 3Pin, 4Pin
Reference standard IEC 61076-2-105
Rated current 1A
Rated voltage 60V
Impulse voltage 500V
Locking system M5×0.5 screw
Tightening torque Recommend: 0.1Nm, Max: 0.15Nm
Termination Soldering
Wire gauge 0.14mm²(AWG 26)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤6mΩ
Over-molding TPU
Contact carrier TPU+GF, Black
Screw nut Brass, CNC, Nickel-plated
Contact Male: Brass, Female: Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67
Pollution degree 3


Description

The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.



Features of M5 connector cables



● Straight connector or 90 degree connector are available

● Male or female are available

● 3Pin, 4Pin are optional

● Cable length is at buyer's option

● IP67, water and oil resistant





FAQ



● What is M5 connector?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.



● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.



● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
