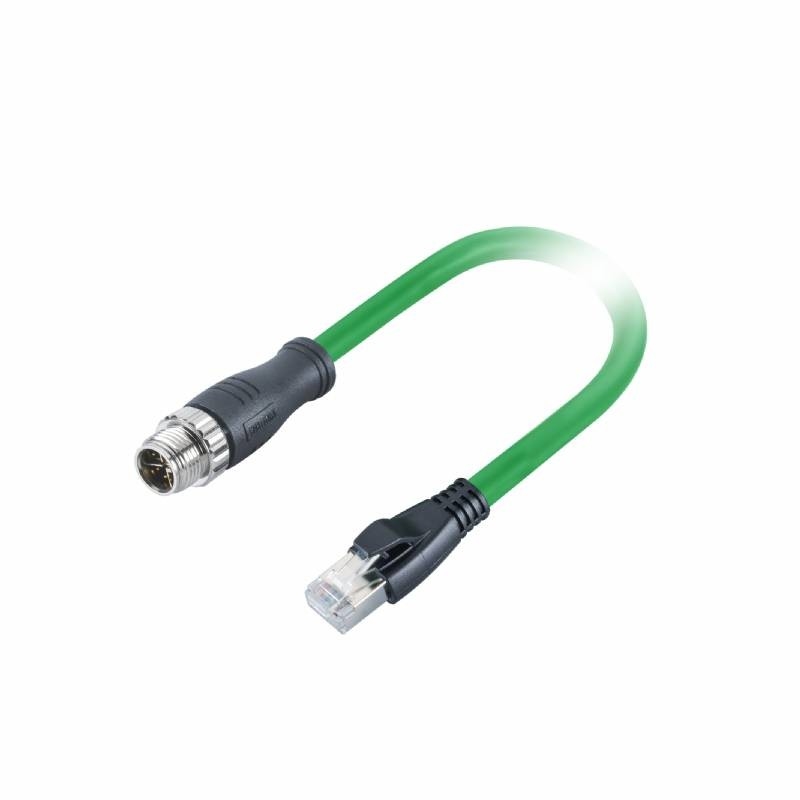

M12 X Code 8 Pin Profinet Cable Rj45 8P8C Male Plug Cat 6a SFTP Cable

M12 X Code 8 Pin Profinet Cable Rj45 8P8C Male Plug Cat 6a SFTP Cable

  • M12 X Code 8 Pin Profinet Cable Rj45 8P8C Male Plug Cat 6a SFTP Cable
M12 X Code 8 Pin Profinet Cable Rj45 8P8C Male Plug Cat 6a SFTP Cable
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: RJ6AC1-MC08C1LSXSB26CG10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Coding: X Coding Gender: Male To Male
Cable Specification: Cat 6A SFTP 4x2x26AWG (0.14mm2) Ethernet Cable Termination: M12: Soldering, RJ45: Piercing
Application: Profinet Ethernet Characteristic Impedance: 100Ω ±15
Over-molding: TPU Reference Standard: IEC 61076-2-109
High Light:

M12 Profinet Cable Rj45

,

Cat 6a Profinet Cable Rj45

,

M12 Rj45 Cat 6a SFTP Cable

M12 Profinet Ethernet Connector Male to RJ45 8 pin X Code 1m Shielded PVC

Connector Technical Data
Model Number RJ6AC1-MC08C1LSXSB26CG10
Contact No 8 pin
Coding
X coded
Contact Resistance ≤5mΩ
Characteristic Impedance
150Ω ±15
Wire Gauge
 0.14mm²(AWG 26) CAT 6A SFTP
Type
M12 X Code Cable Connector
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel-plated
Contact
Male: Brass, Female: Phosphor bronze
Drag Chain Bending 2 Million times
Protection Degree
IP67,IP68


Description

The M12 X-Code 8Pin Male Connector to RJ45 8P8C Male Plug is customized cable which molded with 10Gbps per 500Mhz Cat 6a SFTP 26AWG x 4Pair PUR Cable, mostly use in the vision control technology system, the cable length can be customized, cable we offers PVC and PUR sheath as the option.





CABLEFORCE Products Features


● Degree of protection IP65 IP67

● 8P poles are available

● TPU over molded and PA+GF or metal shell
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.



FAQ



Is RJ45 and Ethernet the same?

RJ45 connectors are often used for ethernet networking. Ethernet cables can also be called as RJ45 cables as they have an RJ45 connector on each end. These connectors have eight coloured wires and 8 different pins.



Is Cat5 and RJ45 the same?

What most people don't know is that although these terms are often used to refer to the same cables, they are not the same. RJ45 is the electrical interconnection standard that defines the connector and how the wires are arranged at the end of the cable while CAT5 is a standard regarding Ethernet cables.



What is difference between PROFIBUS and Ethernet?

PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.





M12 X Code 8 Pin Profinet Cable Rj45 8P8C Male Plug Cat 6a SFTP Cable 0

M12 X Code 8 Pin Profinet Cable Rj45 8P8C Male Plug Cat 6a SFTP Cable 1
