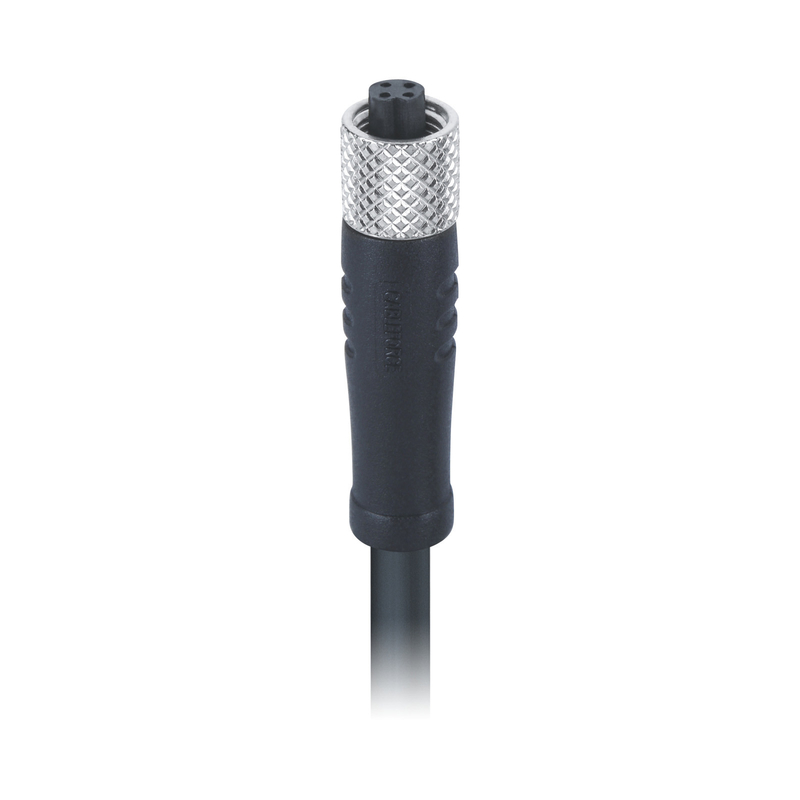

Female M5 Circular Connector 1A 60V 3Pin 4Pin A Code IEC 61076-2-105 Standard

Female M5 Circular Connector 1A 60V 3Pin 4Pin A Code IEC 61076-2-105 Standard

  • Female M5 Circular Connector 1A 60V 3Pin 4Pin A Code IEC 61076-2-105 Standard
Female M5 Circular Connector 1A 60V 3Pin 4Pin A Code IEC 61076-2-105 Standard
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MA04C2LSAB26CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: M5 Cable Female Connector Contacts No.: 3 4 Pin
Insulation Resistance: ≥100MΩ Contact Resistance: ≤6mΩ
Rated Current: 1A Rated Voltage: 60V
Reference Standard: IEC 61076-2-105 Warranty: 1 Year
High Light:

Female M5 Circular Connector

,

M5 Circular Connector 1A 60V

,

A Code M5 Female Connector

M5 A Code Circular Female Connector 4Pin Molded With 1M PVC Un-Shielded Cable

Connector Technical Data
Contacts No. 3Pin, 4Pin
Reference standard IEC 61076-2-105
Rated current 1A
Rated voltage 60V
Locking system M5×0.5 screw
Tightening torque Recommend: 0.1Nm, Max: 0.15Nm
Wire gauge 0.14mm²(AWG 26)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤6mΩ
Over-molding TPU
Contact carrier TPU+GF, Black
Screw nut Brass, CNC, Nickel-plated
Contact Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67
Pollution degree 3


Description

The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.


CABLEFORCE Products Features

● 3Pin, 4Pin are available
● RoHS, CE compliant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements
● We can also quote on a huge selection of products that are not normally stocked
● High quality gold-plated solid phosphor bronze contacts, ≥600 times mating life
● Anti-vibration locking screw design
● Support samples retail and bulk orders





FAQ



● What is M5 connector?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.



● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.



● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
