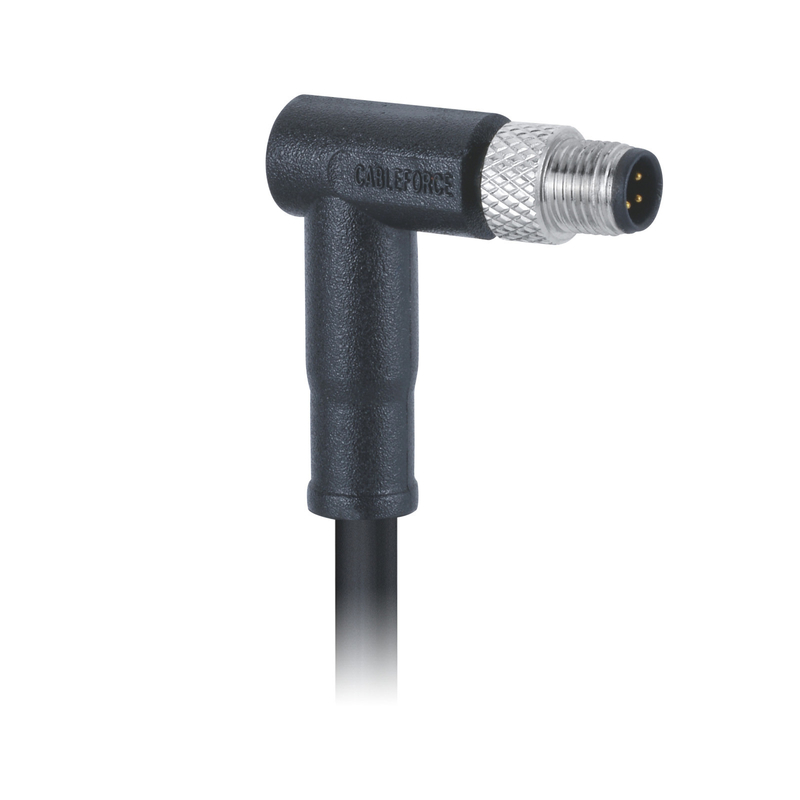

UL Certified M5 Right Angle Connector TPU Over Molding Brass Contact

UL Certified M5 Right Angle Connector TPU Over Molding Brass Contact

  • UL Certified M5 Right Angle Connector TPU Over Molding Brass Contact
UL Certified M5 Right Angle Connector TPU Over Molding Brass Contact
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MA03C1RSAB26CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: M5 Cable Right Angled Connector Contacts No.: 3 4 Pin
Rated Current: 1A Rated Voltage: 60V
Reference Standard: IEC 61076-2-105 Screw Nut: Brass, CNC, Nickel-plated
Protection Degree: IP67 Pollution Degree: 3
High Light:

UL M5 Right Angle Connector

,

Brass Contact M5 Right Angle Connector

M5 A Code Circular Male Right Angled Connector 3Pin Molded With 1M PVC Cable

Connector Technical Data
Contacts No. 3Pin, 4Pin
Reference standard IEC 61076-2-105
Rated current 1A
Rated voltage 60V
Wire gauge 0.14mm²(AWG 26)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤6mΩ
Over-molding TPU
Contact carrier TPU+GF, Black
Screw nut Brass, CNC, Nickel-plated
Contact Brass
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67
Pollution degree 3


Description

The M5 connectors provide 3 and 4 position cable cordsets and panel-mounted receptacles. All connectors are either factory PUR/PVC overmolded or supplied with attached wire leads.



Cableforce Core Benefits



● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● High impact strength even
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH





FAQ



● What is M5 connector?
The Sure-Seal M5 connector series is specifically designed to accommodate the rigors of miniature sensors and other applications that require a multitude of connections within a small footprint. The M5 connector series is designed per IEC 61076-2-105 standard.



What is an A coded connector?

A-coded connectors are the most common style of connector. These are used for sensors, actuators, motors, and most other standard devices. A-coded connectors can vary in its number of pins, anywhere between two pins and 12 pins. B-coded connectors are mostly used in network cables for fieldbus connections.
