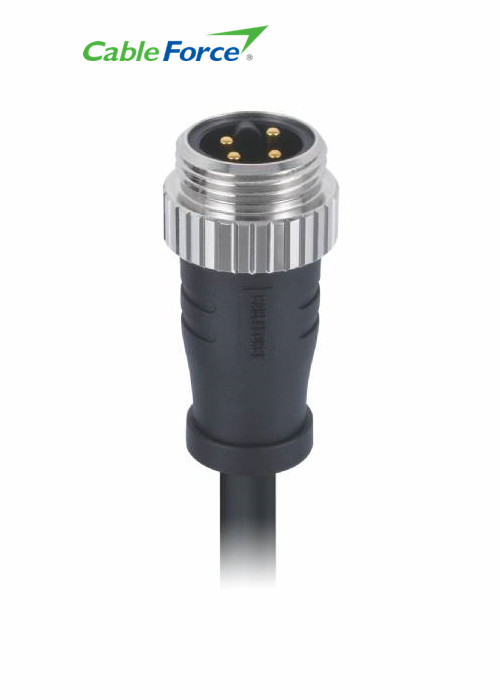

Name: Mini Change Male 4 Pin Connector Molded With 2M PVC 16AWG UnShielded Cable
Brand: CABLEFORCE
SKU: MF04C1LCABCK20
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (104 reviews)

Home Products Mini Change Connectors

Mini Change Male 4 Pin Connector Molded With 2M PVC 16AWG UnShielded Cable

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MF04C1LCABCK20

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Product No.:	MF04C1LCABCK20	Connector Gender:	Male Connector
Keyway Coding:	A-Coding	Over Molding:	TPU
Cable Length:	2M	Cable Jacket:	PVC
Wire Gauge:	0.75~1.25mm² (AWG 16~18)	Wire Color:	White, Brown, Green, Yellow, Grey, Pink, Blue, Red, Orange, Violet, Black, Light Purple
Rated Current:	13A, 8A	Rated Voltage:	300V
Locking System:	7/8'' Screw	Termination:	Crimping
Screw Nut:	Brass,CNC,nickel-plated	Tightening Torque:	1.5Nm
Contact Carrier:	TPU+GF	Contacts:	3, 4, 5Pins
High Light:	300V Mini Change Connector , 16AWG Mini Change Connectors , UnShielded Cable Mini Change Connectors

7/8 Inch Mini-Change Male 4 Pin Connector Molded With 2M PVC 16AWG UnShielded Cable

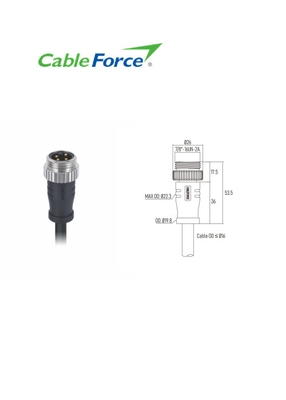

Connector Technical Data
Model Number	MF04C1LCABCK20
Connectors No.	4 Pin
Gender	Male
Rated Current	13A,8A
Coding	A Coding
Rated Voltage	300V
Impulse Voltage	2500V
Rated Temperature	-25℃~+80℃
O ring	FKM , Silicon
Tightening Torque	1.5Nm
Over-molding	TPU
Locking System	7/8'' screw
Insulation Resistance	≥100MΩ
Contact Resistence	≤5MΩ
Type of Cable	PVC or PUR
Wire Gauge	0.75~1.25mm² (AWG 16~18)
Cable Length	2M
Termination	Crimping
Protection Degree	IP67,IP68
Contact Carrier	TPU+GF
Pollution Degree	3

Description

7/8 Inch Mini-Change Male 4 Pin Connector Molded With 2M PVC 16AWG UnShielded Cable was included in Cableforce 7/8''Mini-change series connector,which are mating-compatibel with industry mini-change connectors and designed for both signal and electricity current application.Cableforce offers 7/8'' over molded cables (PVC or PUR),7/8''Field wireable connectors and 7/8'' panel mount receptacles.

7/8''Mini-change Circular Cable Connectors Feature

●Degree of protection IP67

●3P,4P,5P are available

●Custom cable specification,PUR and PVC cable option

●TPU over molded or plastic shell

●Current rating:8S~13A

●Operating voltage:300V

●Power connection for rough environments such as mining,automotive,machine building technologies.

FAQ

● What is your Core competitiveness?

Providing application orientated product’s design and solution
Over 15 years working experience in cable & connector manufacturing industry
Choosing reliable and higher performance material for products

●About Cableforce Brief?

Cableforce focuses on the industrial cable and connector‘s R&D, Manufacture and Sales. We located in Dongguan City, in the southern China, with 3000㎡ premises and efficient modern machinery and equipment for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.Cableforce globally supplying customers with excellent quality cable and connectors at affordable price.

● What kind of machine can be used of Cableforce connector in Factory Automation?
