Place of Origin: | Guangdong, China |
Brand Name: | CABLEFORCE |
Certification: | UL Certified, CUL Certified, IP67, IP69K |
Model Number: | MF05C2 MC04C1SB 16CK50 |
Minimum Order Quantity: | 100 |
---|---|
Price: | Negotiated |
Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
Delivery Time: | 2~3 weeks |
Payment Terms: | T/T |
Supply Ability: | 60000 pcs/month |
Contacts Poles: | 5 Pin, 4 Pin | Gender: | Female To Male |
---|---|---|---|
Jacket Color: | Black | Keyway Coding: | A Coding, S Coding |
Locking System: | Screw | Wire Gauge: | 1.25 M㎡ |
Contacts Plating: | Gold | Over Molding: | TPU |
High Light: | UL Female Male Mini Change Connectors,Female To M12 Mini Change Connectors |
Connector Technical Data
|
|||||||||
Model Number
|

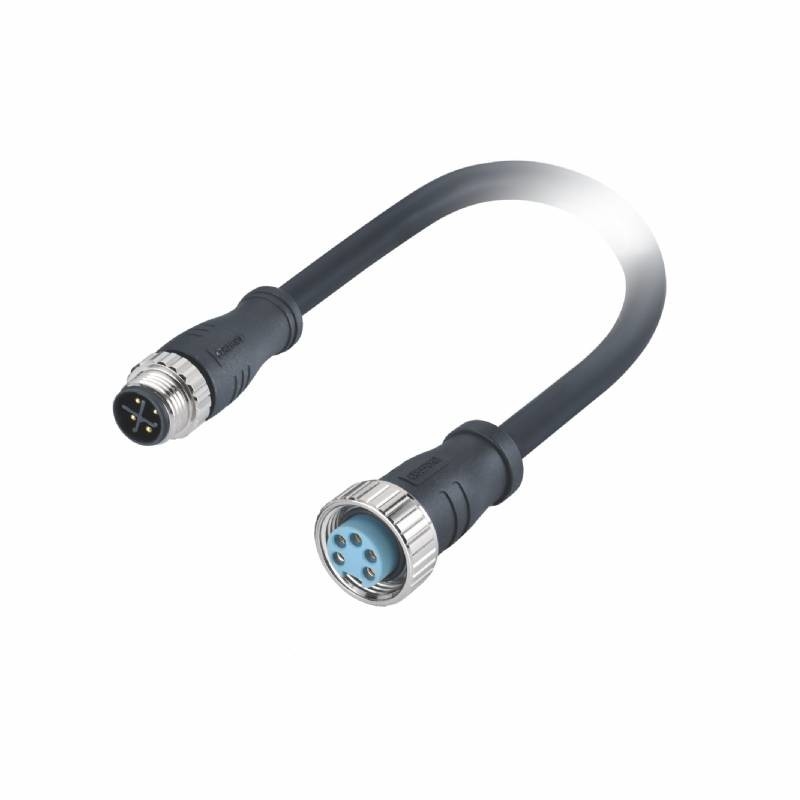

MF05C2 MC04C1SB 16CK50 | ||||||||
Connectors No.
|
A Code, 5 Pin, Female
|
||||||||
Connectors No. | M12 S Code 4 Pin Male | ||||||||
Rated Current
|
12 A
|
||||||||
Rated Voltage
|
300V
|
||||||||
Impulse Voltage
|
2500V
|
||||||||
Screw nut | Brass, CNC, nickel plated | ||||||||
Over molding | TPU | ||||||||
Contact carrier | TPU+GF | ||||||||
Contect | Phosphor bronze, Brass | ||||||||
Termination | Crimping | ||||||||
Protection degree | IP 67, IP68 |
When communication simply needs to work in industrial environments, Mini change system and complete Industrial Communications portfolio offer proven reliability that meet industry standards. Whether it is for controllers and sensors or robotics and molding machines, the Mini change connector system offers you a solution that is time-saving, error-free and without the use of tools.
FAQ
● What Does It Mean to Be UL Listed?
As we learned above, UL recognition is for components and UL Listed is for stand-alone products. While they both ensure a set of industry standards, they are used for different products and in different capacities. This is why UL Listed is so much more recognizable to most people because it ensures the safety of consumer-ready products that then go to market.
Far more testing is involved in UL Listed certification. The UL Listed seal means that the product has been tested by UL to nationally recognized safety and sustainability standards. Additionally, it has been found to be free from a reasonably foreseeable risk of fire, electric shock in a Division 2 environment. Division 2 environment refers to an area where ignitable concentrations are used.
