Place of Origin: | Guangdong, China |
Brand Name: | CABLEFORCE |
Certification: | UL Certified, CUL Certified, IP67, IP69K |
Model Number: | MF05C1 MC04C2SB 16CK50 |
Minimum Order Quantity: | 100 |
---|---|
Price: | Negotiated |
Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
Delivery Time: | 2~3 weeks |
Payment Terms: | T/T |
Supply Ability: | 60000 pcs/month |
Contacts Poles: | 5 Pin, 4 Pin | Gender: | Male To Female |
---|---|---|---|
Jacket Color: | Black | Keyway Coding: | A Coding, S Coding |
Locking System: | Screw | Wire Gauge: | 1.25 M㎡ |
Contacts Plating: | Gold | Over Molding: | TPU |

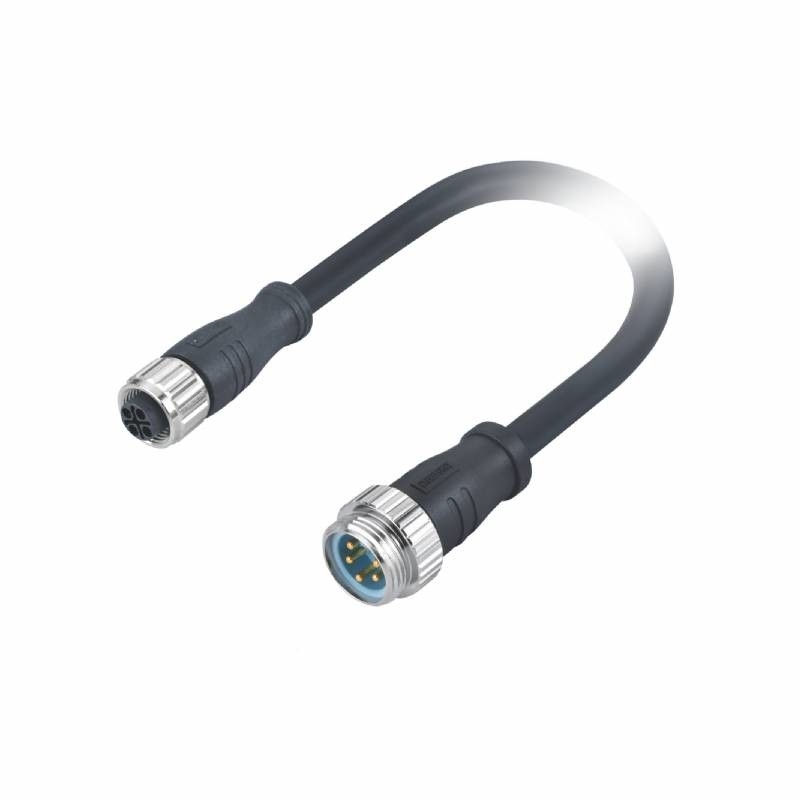

High Light: | 12A 300V Mini Change Connector,PUR Mini Change Connector,IP67 Male To Female Connector |
Connector Technical Data
|
|||||||||
Model Number
|
MF05C1 MC04C2SB 16CK50 | ||||||||
Connectors No.
|
A Code, 5 Pin, Female
|
||||||||
Connectors No. | M12 S Code 4 Pin Male | ||||||||
Rated Current
|
12 A
|
||||||||
Rated Voltage
|
300V
|
||||||||
Impulse Voltage
|
2500V
|
||||||||
Screw nut | Brass, CNC, nickel plated | ||||||||
Over molding | TPU | ||||||||
Contact carrier | TPU+GF | ||||||||
Contect | Phosphor bronze, Brass | ||||||||
Termination | Crimping | ||||||||
Protection degree | IP 67, IP68 |
When communication simply needs to work in industrial environments, Mini change system and complete Industrial Communications portfolio offer proven reliability that meet industry standards. Whether it is for controllers and sensors or robotics and molding machines, the Mini change connector system offers you a solution that is time-saving, error-free and without the use of tools.
FAQ
● What’s the difference between PUR and PVC cables?
A PUR cable is a flexible, silicone, and halogen-free cable with PUR outer sheath polypropylene conductor insulation. It is oil and flame resistant and can be used in drag chain applications with minimal bend radius.
● PVC better then PUR cable?
Well there are two valid replies to this question. The first is cost. PVC cable is a lower cost compared to PUR cable, as a rule of thumb PUR cable is around 10% to 20% more for a similar specification of cable, so if you don’t need to use PUR then there is no benefit!
From a technical point of view however, it depends on the application. If you have a wet environment then PVC tends to be the most suitable cable as it has good resistance to water and is therefore the preferred cable for food-processing applications. In machining applications PUR becomes the cable to use owing to its better resistance to cutting and hydraulic oils. There is another downside to PUR with regards to installation – it is harder to strip – so if you don't need to use it, PVC is always the better choice.
