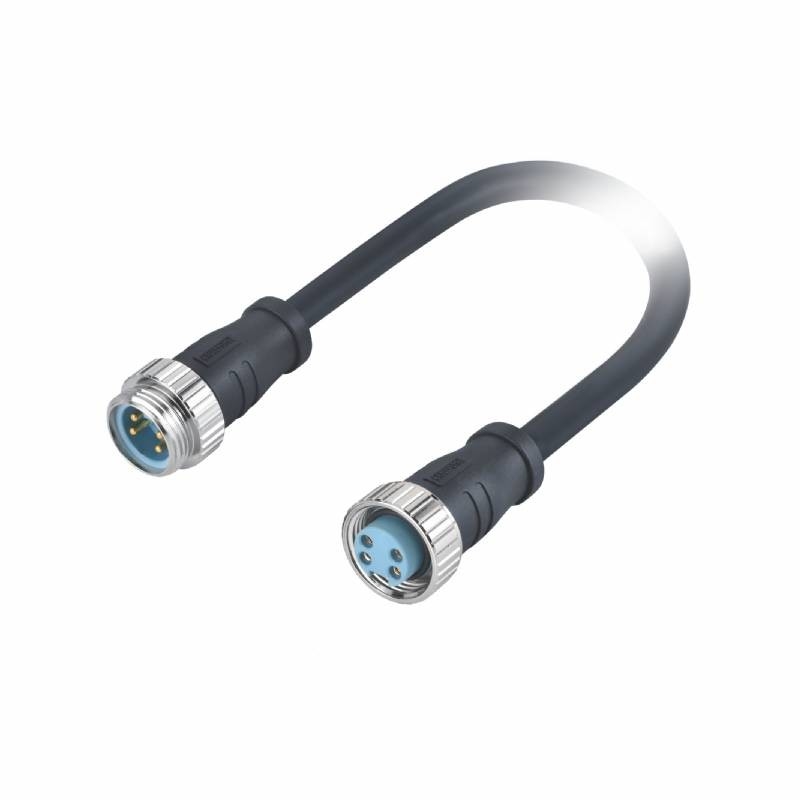

Rail Transit Mini Change Connector Unshielded Male To Female Black 5 Pin A Code Cable

Rail Transit Mini Change Connector Unshielded Male To Female Black 5 Pin A Code Cable

  • Rail Transit Mini Change Connector Unshielded Male To Female Black 5 Pin A Code Cable
Rail Transit Mini Change Connector Unshielded Male To Female Black 5 Pin A Code Cable
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, IP67, IP69K
Model Number: MF03C3LCAB16RK20
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 03 Pin Gender: Female To Male
Contact: Brass Keyway Coding: A Coding
Tightening Torque: Wire Screw 0.4 Nm Wire Gauge: 1.5 M㎡
Contacts Plating: Gold Over Molding: TPU
High Light:

0.4Nm Mini Change Connector

,

Mini Change Connector Unshielded

Un Shielded Mini Change Connector Rail Transit Male To Female Black 5 Pin A Code

Connector Technical Data
Model Number
MF03C3LCAB16RK20
Connectors No.
3 Pin
Rated Current
13A, 8A
Rated Voltage
300V
Impulse Voltage
2500V
Wire gauge AWG 16, AWG 18
Insulation resistance 100MΩ
Contact resistence 5MΩ
Contect Phosphor bronze
Contact plating Au
Screw nut Brass, CNC, Nickled plated


Description


First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.



Cableforce Feature

Cutom cable specification, PUR and PVC cable options
Degree of protection IP 67
3P, 4P, 5P are available
TPU over molded or plastic shell
Operating voltage 300V



FAQ



 Do you provide inspection on the incoming materials before production and inspect the finished products shipment?

Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.



● What does Bairui can provide for the product’ certification?

IP67, IP68, UL, CE and RoHS.
