| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, IP67, IP69K |
| Model Number: | MF05A2LWAB |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Contacts Poles: | 05 Pin | Gender: | Female Straight |
|---|---|---|---|
| Contact: | Brass | Keyway Coding: | A Coding |
| Tightening Torque: | Wire Screw 0.4 Nm | Wire Gauge: | 1.25 M㎡ |
| Contacts Plating: | Gold | Connector Body: | TPU |

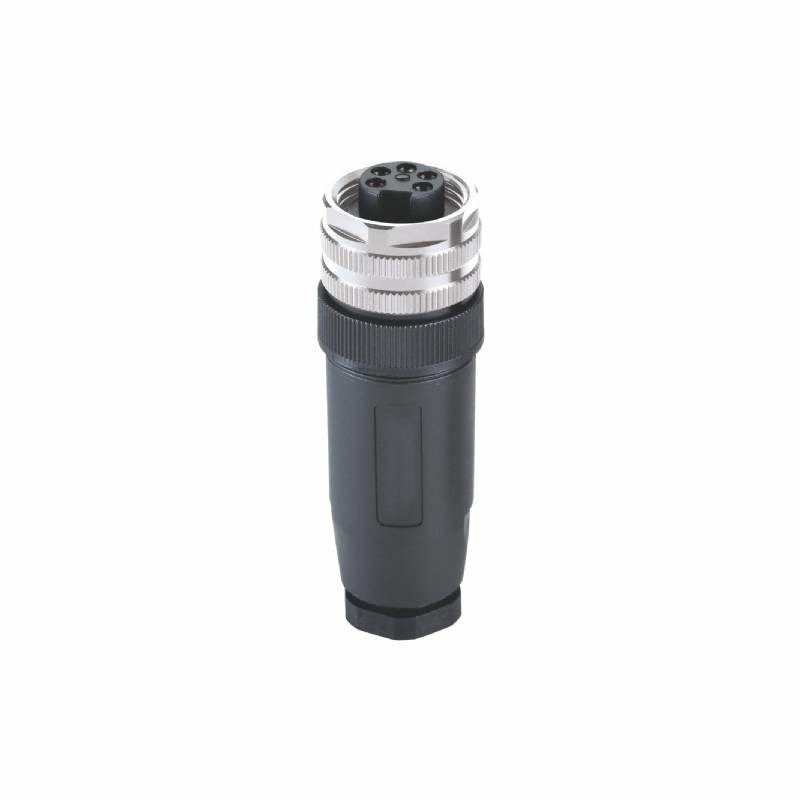

| High Light: | 5Pin Field Wire Cable Connector,CUL Field Wire Cable Connector,Rail Transit Mini Change Connector |
||
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MF05A2LWAB | ||||||||
|
Connectors No.
|
5 Pin
|
||||||||
|
Rated Current
|
13A, 8A
|
||||||||
|
Rated Voltage
|
300V
|
||||||||
|
Impulse Voltage
|
2500V
|
||||||||
| Wire gauge | AWG 16, AWG 18 | ||||||||
| Insulation resistance | 100MΩ | ||||||||
| Contact resistence | 5MΩ | ||||||||
| Contect | Phosphor bronze | ||||||||
| Contact plating | Au | ||||||||
| Screw nut | Brass, CNC, Nickled plated | ||||||||
7/8“ connectors are available in 3-pole (2 + PE), 4-pole (3 + PE), 5-pole (4 + PE) versions. Connectors with different pole counts are not plug compatible. The contact surfaces are gold-plated.
FAQ
● What is the necessary information needed for quotation?
The series(M5/M8/M10/M12/M23), coding, gender, pin number,cable length, quantity
● What does Bairui can provide for the product’ certification?
IP67, IP68, UL, CE and RoHS.
