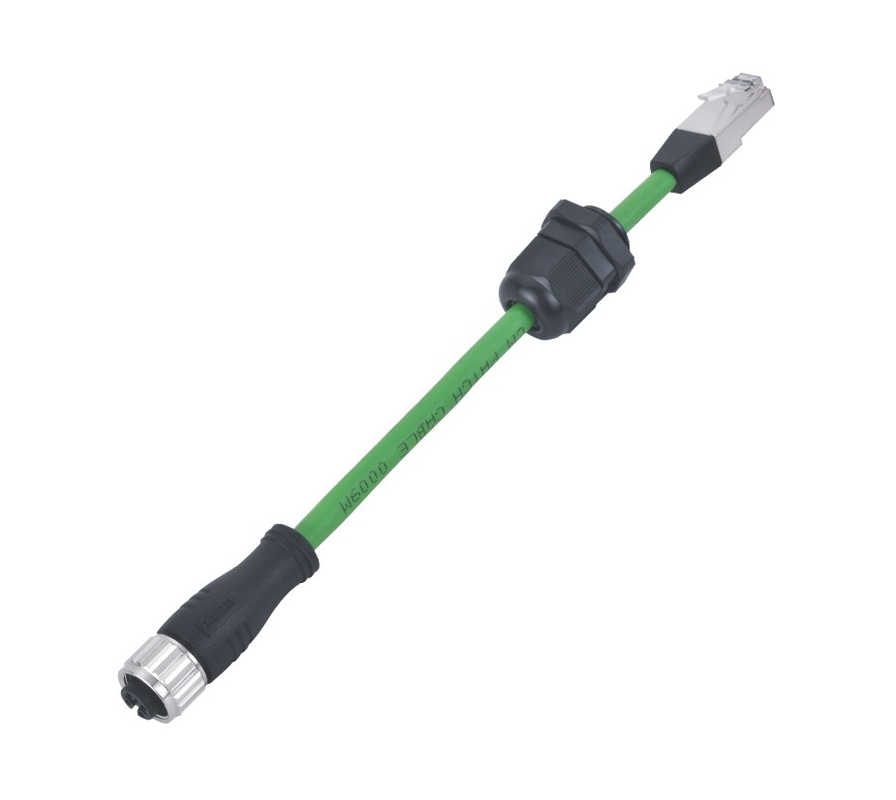

Name: D Code Male To Rj45 M12 Cable Assembly With Gland Connector Shielded Molded 1m Pvc Cat 5e 4x22awg Green
Brand: CABLEFORCE
SKU: RJ5EA1-MC04C5RSDSB22CG10
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (191 reviews)

Home Products Industrial Ethernet Cable

D Code Male To Rj45 M12 Cable Assembly With Gland Connector Shielded Molded 1m Pvc Cat 5e 4x22awg Green

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	RJ5EA1-MC04C5RSDSB22CG10

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

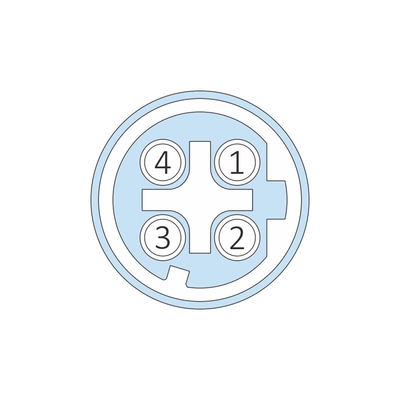

Contact Poles:	4 Pin	Gender:	Male To Male
Cable Jacket:	PUR, Halogen-free	Contacts Termination:	Soldering
Contacts Material:	Brass, Machined Solid Pin	Contacts Plating:	3μ" Gold Plating Thickness, 6μ" Gold Plating Thickness
Inserts:	TPU + GF	Housing/ Outer Shell:	PA66 + GF
Connector Flamability:	UL94 V2	Compliance:	RoHS Compliant, REACH Compliant
Drag Chain Bending Life:	300 Million Cycles	Ethernet Catagory:	Cat 5e (1000Mbps/100Mhz)
High Light:	d code m12 cable assembly , male to rj45 m12 cable assembly , gland m12 connector assembly

M12 D Code Male To RJ45 Assembly With Cable Gland Connector Shielded Molded 1M PVC Cat 5e 4x22AWG Green Ethernet Cable

Connector Technical Data
Model Number	RJ5EA1-MC04C5RSDSB22CG10
Wire gauge	0.34(AWG 22)
Coding	D coded
Rated current	4 A
Rated voltage	250V
Impulse voltage	2500V
Cable color	Green
Type	M12 D Code Cable Connector
Contact Carrier	TPU+GF
Screw Nut	Brass,CNC,Nickel-plated
Contact	Phosphor bronze
Pollution Degree	3
Protection Degree	IP67,IP68

Description of M12 D Code to RJ45 Ethernet Cable Connector

CABLEFORCE offers tailor-made industrial PROFINET connecting cable cordsets. We are also supplying of other fieldbus cables compatible with most major fieldbus protocols, including CANopen, PROFIBUS, DeviceNet™, CAN Bus, CC-Link and ASI Bus and industrial EtherCAT, EtherNet/IP™ and other industrial Ethernet protocols with bandwidth from Cat 5e, Cat 6A to Cat7.

We provide customers with the following cable custom services:

● Custom cable color and length, custom print and labeling as well as packaging
● Custom Material: Extreme Temperature Resistant, High Flexible, UV Resistance, Oil Resistance, LSZH, Hydrolysis Resistance, Anti-Corrosion;
● Connector Configuration: Single Ended, Double Ended, multi Ended, multi-core wire, mixed joint and other configurations;
● Mechanical Reliable: Mating Life, EMI/EMC Shielding, Waterproof, Dustproof, Anti Vibration, Abrasion Resistant, Bending Endurance, Drag Chain, Welding resistant, etc.;
● Transmission Performance: Bandwidth, Voltage and Current rating, Impedance and Measurement Accuracy, etc.

FAQ

● What is PROFIBUS and how it works?

Profibus (from process field bus) is a protocol for field bus communication in automation technology. Profibus links automation systems and controllers with decentralized field devices such as sensors, actuators, and encoders. Profibus networks exchange data using a single bus cable.

● What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.

● What is difference between PROFIBUS and Ethernet?

PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.
