Waterproof M16 4 Pin Connector Female Contacts Molded 0.5m Pur 4x16awg Cable Ip67 / Ip68

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MD04C2LSAB16RK05

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Coding:	A Coding	Plug Mating Life:	500 Times
Single Package Size:	44.5X36.5X23.5 Cm	Termination:	Soldering
Temperature Rating:	-40°C ~ + 80°C	Reference Standard:	IEC 61076-2-106
Cable Features:	UV-Resistant, Crosion Resistant, Hydrolysis Resistant, Oil Resistance	Contact Plating:	3μ" Gold Plating Thickness
Connector Flamability:	UL94 V-0
High Light:	waterproof m16 4 pin connector , ip67 m16 4 pin connector

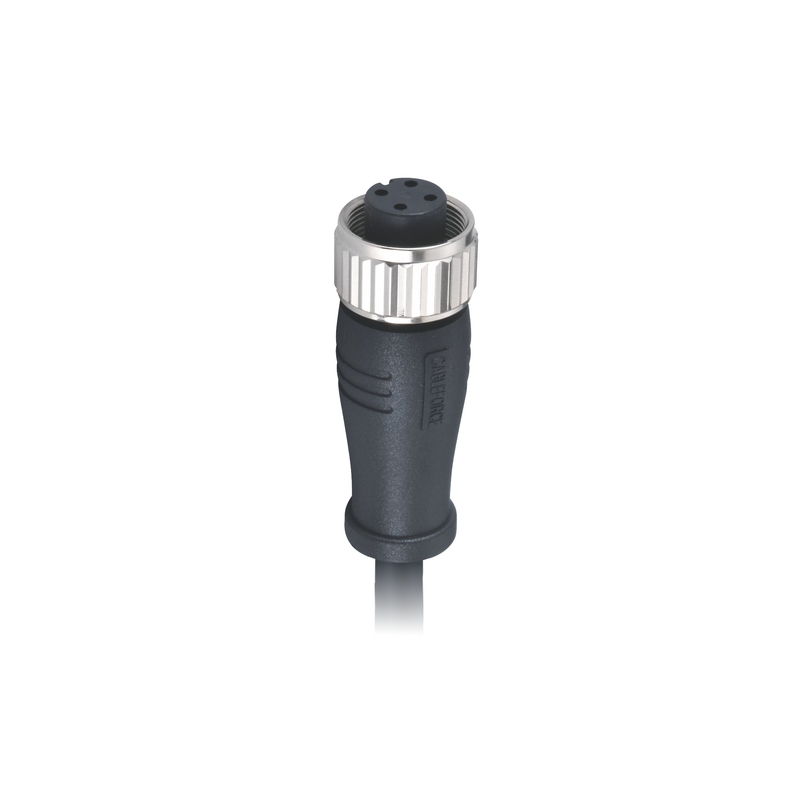

Waterproof M16 4 Pin Connector Female Contacts Molded 0.5M PUR 4x16AWG Cable IP67/IP68

Connector Technical Data
Model Number	MD04C2LSAB16RK20

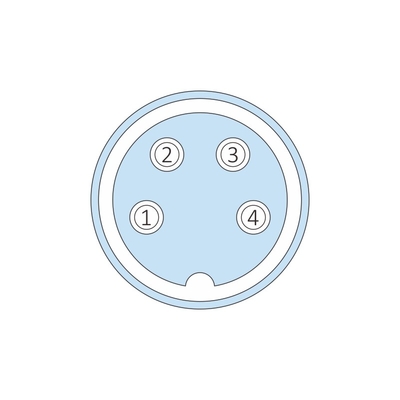

Contact No	4 pin
Coding	A coded
Contact Resistance	≤5mΩ
Insulation resistance	≥ 100MΩ
Termination	Soldering
Type	M16 Male Soldering Cable Connector
Contact Carrier	PA66+GF
Screw Nut	Brass,CNC,Nickel-plated
Contact	Male: Brass, Female: Phosphor bronze
Rated current	16A
Rated voltage	630V

Description of M16 4 Pin Female Connector

M16 Connectors is the circular connectors with threaded joint M16 designed to IEC 61076-2-106 and IEC 60130-9 with a robust metal housing and environmental protection rating of IP67 when mated, M16 connector is an ideal solution for power and signal transmission in harsh environments and industrial applications.

● Cableforce offers pole variants of 5Pin, 6Pin, 7Pin, 12Pin, 14 Pins
● Voltage rating: 300V, 125V, 60V
● Current rating: 8A, 4A
● Custom cable specification and lengths, molded with PVC, PUR or TPE cable
● The panel mount receptacle counter part with PCB contacts or Solder cup
● Oil-Resistant, Hydrolysis Resistant, UV-Resistant, Drag China cable options are available
● IP67 degree of protection
● Robust metal connector shells
● Excellent EMI shielding

CABLEFORCE Products Features

● Tailor made material to meet various application conditions

● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant

Security notices:

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.

The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.

Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
