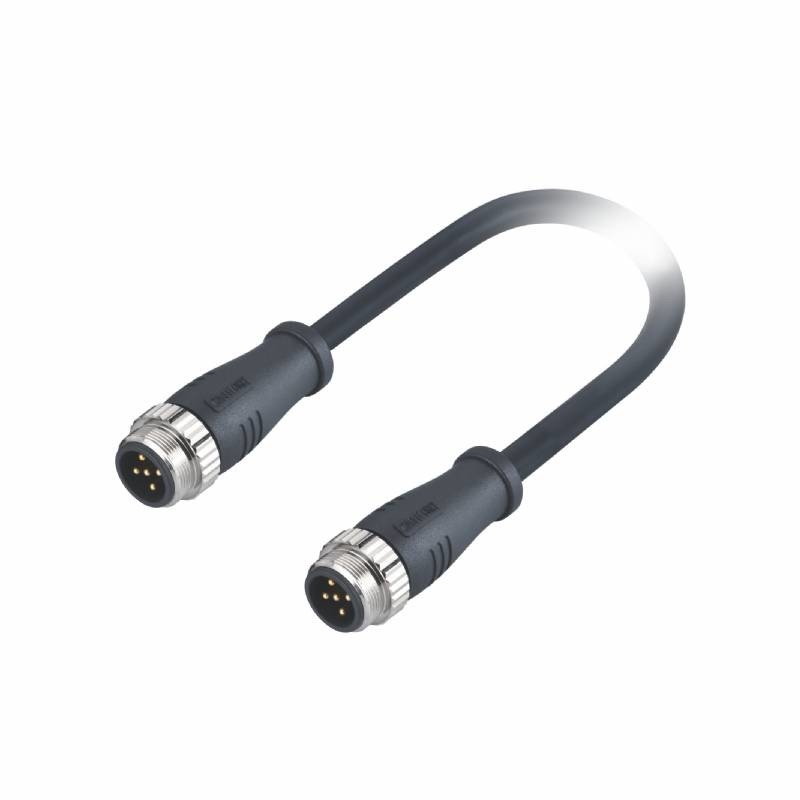

Male To Male M16 Circular Connector 3 Pin A Code 2m Unshielded Connecting Cable

Male To Male M16 Circular Connector 3 Pin A Code 2m Unshielded Connecting Cable

  • Male To Male M16 Circular Connector 3 Pin A Code 2m Unshielded Connecting Cable
Male To Male M16 Circular Connector 3 Pin A Code 2m Unshielded Connecting Cable
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MD03C5LSAB20CK20
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contact No: 3 Pin US HTS Code: 8544422900
Gender: Male To Female Or Male To Male Rated Current: 16A
Rated Voltage: 630V Impulse Voltage: 5000V
Contact: Brass Reference Standard: IEC 61076-2-101
High Light:

2m Cable M16 Circular Connector

,

3 Pin Cable M16 Circular Connector

,

M16 Male To Male Cable

M16 Circular Connector Male To Male 3 Pin A Code 2m Unshielded Connecting Cable

Connector Technical Data
Model Number MD03C5LSAB20CK20
Contact No 3 pin
Coding
A coded
Contact Resistance ≤5mΩ
Characteristic Impedance
150Ω ±15
Cable Length
2m
Type
M16 double ended Connector
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel plated
Certificate Number
EED32I002493
Export Carton Dimensions 44.5 X 36.5 X 23.5 cm
Export Carton Weight
10 Kilograms


Description

CABLEFORCE M16 circular connectors designed for both signal and power application.Its metal shielded body is highly resistant to harsh condition industrial environment.CABLEFORCE offers M16 cable assembly.M16 field wireable connector and panel mount connectors with solder cups.





CABLEFORCE Products Features


The ordering No. is MD03C3LSAB14RK20, which means M16, 4 Pin, Male to female double ended cable, Straight Orientation, Solder type of wire termination, A-code, Shielded connector, Brass with nickel plated screw, molded with 14AWG, 2 meter, black and PUR cable.
About our packaging: In common, we have two standard cartons: 44.5 cm × 36.5 cm × 23.5 cm and 36.5 cm × 23.5 cm ×20.5 cm. Waterproof bags and individual packaging manner. If you have other special requirements about packaging, please inform us.
We have customization service for you. Please feel free to contact us if you have any requirements or demands of our product. CableForce will choose the right materials for our customers !
At CableForce, you will experience our value-added products and services. With our systems, our process, our people and our extensive vendor base affords us solutions in the following technologies.





CABLEFORCE STRENGTH



CableForce focuses on the industrial cable and connector‘s R&D, Manufacture and Sales. We located in Dongguan City, in the southern China, with 1500㎡ premises and efficient modern machinery and equipment for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
