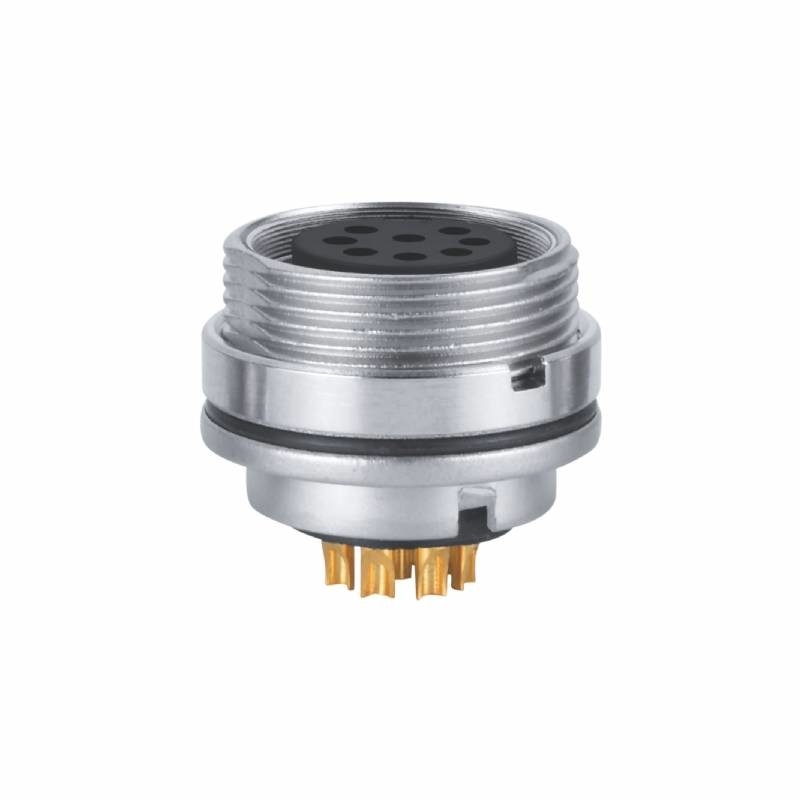

Soldering Type M16 5 Pin Connector Panel Mount Socket Reliability Test

Soldering Type M16 5 Pin Connector Panel Mount Socket Reliability Test

  • Soldering Type M16 5 Pin Connector Panel Mount Socket Reliability Test
Soldering Type M16 5 Pin Connector Panel Mount Socket Reliability Test
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MD05P2LSAB
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Reference Standard: IEC 61076-2-106 Termination: Soldering
Coding: A Coding Rated Current: 7A
Rated Voltage: 250V ( 32V DC ) Impulse Voltage: 1500V
Locking System: M16 X 1.0 Screw Contacts Plating: Au ( Gold )
High Light:

Soldering M16 5 Pin Connector

,

Panel Mount M16 5 Pin Connector

,

M16 Panel Mount Socket

M16 Panel Mount Connector Socket 5 Pin Soldering Type Reliability Test

Connector Technical Data
Ordering No MD05P2LSAB
Contact No 5 pin
Coding
A coded
Contact Resistance ≤5mΩ
Insulation resistance
≥ 100MΩ
Rated temperature
 -25°C ~ + 70°C
Lock Type
Front Fastened or Rear fastened
Contact Carrier
PA66+GF
Screw Nut
Brass,CNC,Nickel-plated
Contact
Male: Brass, Female: Phosphor bronze
O ring FKM Silicon
Pollution degree 3


Description


M16 male connector is 180 degrees straight. M16 panel mount connector needle core number of 5-pin, 8-pin. Protection: IP67; IP65 M16 Connector Features: UL standard wire or national standard, strong anti-interference, signal transmission and stability; aviation plug-side injection molding, beautiful appearance, with ordinary waterproof performance, long service life. All products are rigorously tested and meet the ROSH standard, in line with the reliability test and all electrical test requirements
Extremely Acid, Alkali, Chemical Cleaner Reagent Performance, Grease, Coolant, Lubricant and Emulsion Properties.





CABLEFORCE Products Features


Degree of protection IP 67 IP68

● 2P 3P 4P 5P 6P 7P 8P 12P are available

● Operating voltage: 250V ( 32V DC ) 125V ( 32V DC ) 60V ( 32V DC )
● Current rating : 7A 6A 5A 3A

● Straight or Right angled

● Lock type : Front Side Fastening or Rear Side Fstening

● Metal Shielded Housing







FAQ:



What is a panel mount connector?

Panel Mount is a mechanical feature or features built into the design of a connector half. It allows the connector to be secured to an equipment panel, external case or enclosure. Often (but not always), connectors fitted with panel mount features will be cable connectors.



What does chassis mount mean?

Chassis mount resistors are manufactured using wirewound resistor technology in a large ceramic core molded into an extruded aluminum, chassis-mount housing. ... For applications where the design of the resistor is to promote heat loss and cooling, a chassis mount resistor is an ideal resistor for your next design.



Rear mount VS Front mount?

The rear panel-mount part installs from inside the box and has the jam nut on the outside of the case;  the front panel one installs from the outside of the box and has the jam nut on the inside.





Soldering Type M16 5 Pin Connector Panel Mount Socket Reliability Test 0

Soldering Type M16 5 Pin Connector Panel Mount Socket Reliability Test 1
