Name: M12 4 Pin Female D Coded Connector Molding Panel Mount 1M Cat5e 4x22AWG
Brand: CABLEFORCE
SKU: MC04C2/P1LSDSB22CK10-C5E
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (159 reviews)

Home Products Industrial Ethernet Cable

M12 4 Pin Female D Coded Connector Molding Panel Mount 1M Cat5e 4x22AWG

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MC04C2/P1LSDSB22CK10-C5E

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Gender:	Male To Female	Wire Gauge:	0.34mm²(AWG 22) CAT 5E SFTP
Type:	M12 D Code Cable Connector	Application:	Profinet Ethernet
Characteristic Impedance:	100Ω ±15	Over-molding:	TPU
Reference Standard:	IEC 61076-2-101	Contact Carrier:	TPU+GF
Screw Nut:	Brass, CNC, Nickel-plated	Contact:	Brass, Phosphor Bronze
High Light:	M12 4 Pin D Coded Connector , Cat5e D Coded Connector , 4x22AWG Ethernet Cable Connector

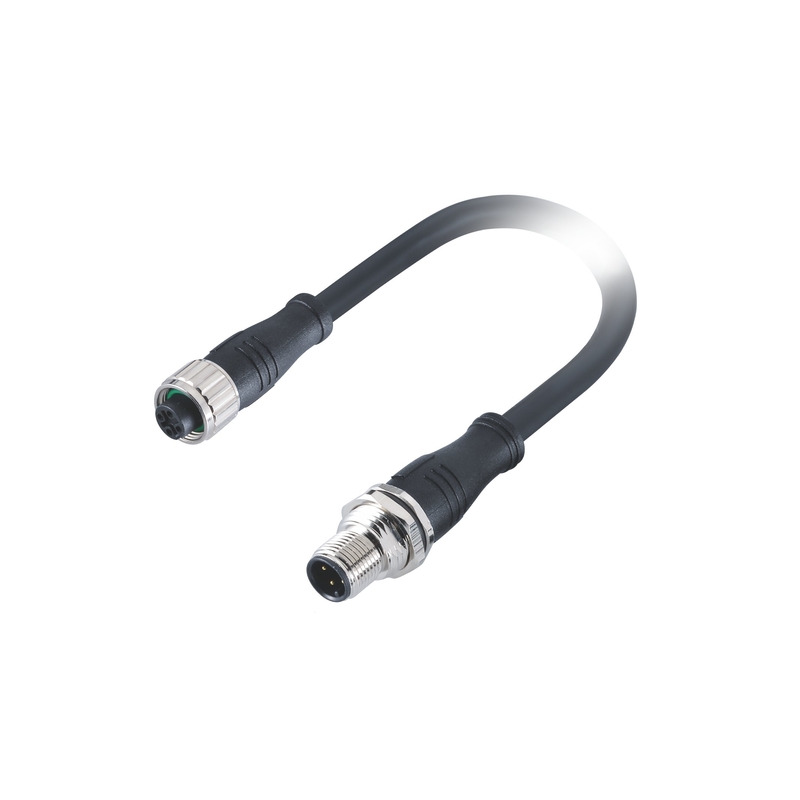

M12 4 Pin Female D Code Molding Type Connector to Panel Mount Connector Molded 1M Cat 5e 4x22AWG Ethernet Cable

Connector Technical Data
Model Number	MC04C2/P1LSDSB22CK10-C5E
Contact No	4 pin
Coding	D coded
Contact Resistance	≤10mΩ
Characteristic Impedance	150Ω ±15
Wire Gauge	0.34mm²(AWG 22)
Type	M12 D Code Cable Connector
Contact Carrier	TPU+GF
Screw Nut	Brass,CNC,Nickel-plated
Contact	Brass(Male), Phosphor bronze(Female)
Pollution Degree	3
Protection Degree	IP67,IP68

Description

The M12 metric size D-Coding connectors, it is commonly used connector in the Fieldbus cabling system, mainly designed and developed for industrial Ethernet/ Profinet cabling. M12 D-Coding connector designed with double keyway coding structure which differentiates itself from A, B, C, S, T, K, L-Codings.

● Cable plugs, field installable plugs, panel receptacles are available
● Cable length, LSZH, NFPA130 railway cable upon customer requesting
● Degree of protection IP67
● 4 poles per connector
● Operating voltage 250V; Current range: 4A
● Anti-vibration locking screw design

CABLEFORCE Products Features

● IP67 IP68 IP69K and UL approvals
● 360° shielded or non-shielded versions are available
● TPU over molded and PA+GF or metal shell
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.

FAQ

● What is PROFIBUS and how it works?

Profibus (from process field bus) is a protocol for field bus communication in automation technology. Profibus links automation systems and controllers with decentralized field devices such as sensors, actuators, and encoders. Profibus networks exchange data using a single bus cable.

● What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.

● What is difference between PROFIBUS and Ethernet?

PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.

M12 4 Pin Female D Coded Connector Molding Panel Mount 1M Cat5e 4x22AWG 0
