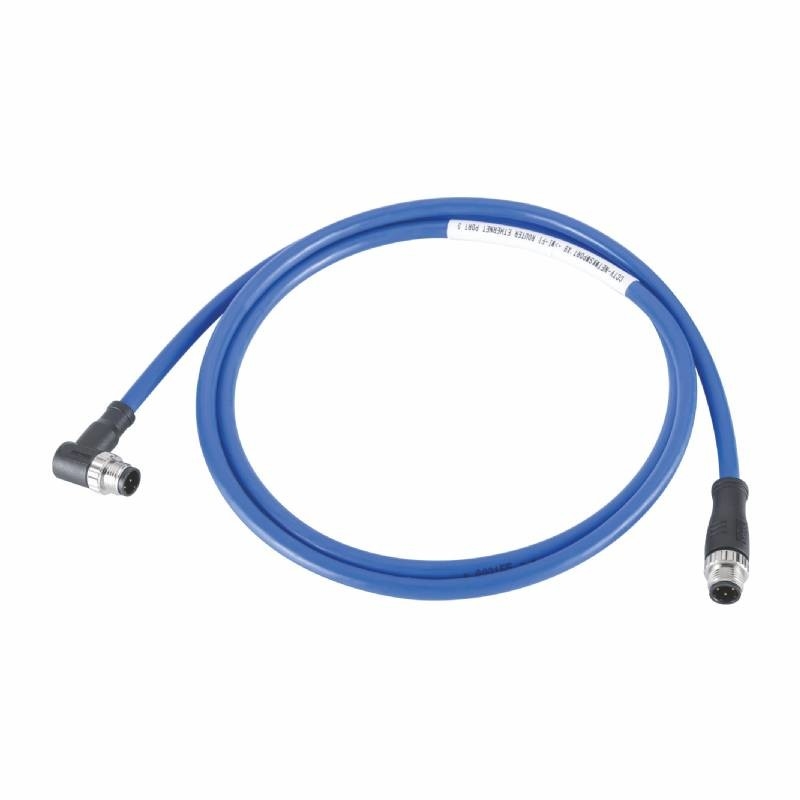

Cat 5e SFTP Industrial Ethernet Cable M12 D Code 4Pin Male Connectors 2x2x22AWG

Cat 5e SFTP Industrial Ethernet Cable M12 D Code 4Pin Male Connectors 2x2x22AWG

  • Cat 5e SFTP Industrial Ethernet Cable M12 D Code 4Pin Male Connectors 2x2x22AWG
Cat 5e SFTP Industrial Ethernet Cable M12 D Code 4Pin Male Connectors 2x2x22AWG
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC04C5RSDSB22RGxx-NFPA 130
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Coding: D Coding Gender: Male To Male
Cable Specification: 100Mbps, Cat 5e SFTP 2x2x22AWG Profinet Cable Termination: Soldering
Application: NFPA 130 Certified Low Smoke Zero Halogen (LSZH) Cable For Fixed Guideway Transit And Passenger Rail Characteristic Impedance: 100Ω ±10
Over-molding: TPU Reference Standard: IEC 61076-2-101
High Light:

Cat 5e M12 Industrial Ethernet Cable

,

2x2x22AWG Industrial Ethernet Cable

,

D Code M12 4 Pin Ethernet Cable

M12 NFPA 130 EN 45545 LSZH Industrial Ethernet Cable Male to Male 4 pin D Code

Connector Technical Data
Model Number MC04C5RSDSB22RGxx-NFPA 130
Contact No 4 pin
Coding
D coded
Contact Resistance ≤5mΩ
Characteristic Impedance
100Ω ±10
Cable Specification
100Mbps, Cat 5e SFTP 2x2x22AWG Profinet Cable
Type
NFPA 130 EN 45545 LSZH Ethernet Cable
Contact Carrier
TPU+GF
Screw Nut
Brass CNC Nickel plated
Contact
Male : Brass Female : Phosphor bronze
Pollution degree 3
Protection Degree
IP67,IP68


Description

For building powerful and secure Ethernet networks and reliable communication performance in railway vehicles. Transportation and city transit. The major issue in railway is to build a reliable distribution of the increasing volumes of data. CABLEFORCE offers pre-assembled connectivity solution for servers or CCTV cameras with M12 D coded (Cat 5e) and M12 X Coded ( Cat 6A Cat 7 ) connectors with EN45545 and NFPA 130 certified cables. Simple and fast installation in railway vehicles is enabled by the pre-configured plug and play solution.



CABLEFORCE Products Features


● Brand: Cableforce

● Country of origin: China

● NFPA 130 Certified Low Smoke Zero Halogen (LSZH) Cable for Fixed Guideway Transit and Passenger Rail

● 100Mbps, Cat 5e SFTP 2x2x22AWG Profinet Cable

● M12 D-Code 4Pin Male Connectors, EMI-Shielded

● Package: packaged in a resealable bag

● Cable Jacket is Labelled with Self Laminated Label





FAQ



What  is NFPA 130?

NFPA 130 is the Standard for Fixed Guideway Transit and Passenger Rail Systems. It contains requirements for train stations, subway stations, the trains or subway cars themselves, and the tracks or paths these vehicles travel on.



What is the purpose of EN 45545?

The EN 45545 aims to protect passengers and staff against onboard fire incidents on railway vehicles. Part two of the European standard (EN 45545-2) defines tighter requirements for the fire behavior of materials and components including flooring, seats and cables on railway vehicles.





Cat 5e SFTP Industrial Ethernet Cable M12 D Code 4Pin Male Connectors 2x2x22AWG 0

Cat 5e SFTP Industrial Ethernet Cable M12 D Code 4Pin Male Connectors 2x2x22AWG 1
