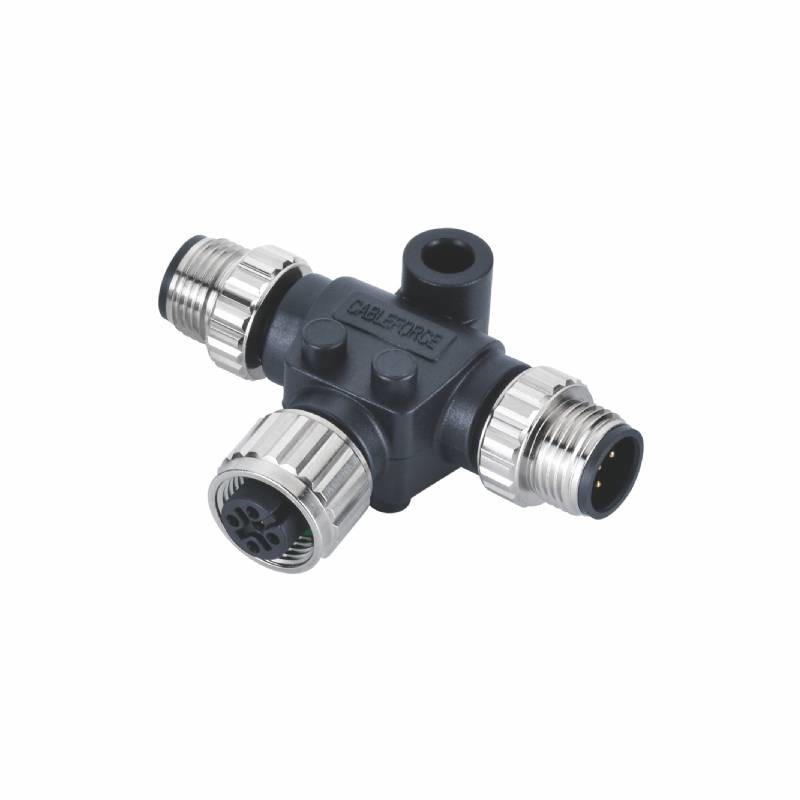

Shielded NMEA 2000 Cables M12 NMEA 2000 T Connector FKM O Ring

Shielded NMEA 2000 Cables M12 NMEA 2000 T Connector FKM O Ring

  • Shielded NMEA 2000 Cables M12 NMEA 2000 T Connector FKM O Ring
Shielded NMEA 2000 Cables M12 NMEA 2000 T Connector FKM O Ring
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC03T-MMFASB
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Coding: A Coding Gender: Male To Male Or Female
Reference Standard: IEC 61076-2-101 Mating Style: Thread Lock
Connector Body: TPU Characteristic Impedance: 100Ω ±15
Contact Carrier: TPU+GF Series: NMEA 2000 T Connector
High Light:

Shielded NMEA 2000 Cables

,

T Connector NMEA 2000 Cables

,

M12 NMEA 2000 T Connector

M12 NMEA 2000 T Connector Male To Male Or Female Shielded Oring FKM

Connector Technical Data
Model Number MC03T-MMFASB
Contact No 3 pin
Coding
A coded
Contact Resistance ≤5mΩ
Locking System
M12 x 1.0 screw
Contact plating
 Au (Gold)
Type
NMEA 2000
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel-plated
Contact
Male: Brass, Female: Phosphor bronze
O-ring FKM Silicon
Protection Degree
IP67,IP68


Description

The M12 Adapter and Splitters splits wires into 2 to 5 separate connectors, allowing installation of more single-channel input or output devices to each port of devices. Connectors are available with parallel circuits, which allow input or output signals to run or  trigger devices simultaneously, designed for Devicenet, CAN Bus. Profibus, NMEA 2000 cablings.





CABLEFORCE Products Features


Electrical T connector

Favorable waterproof feature: IP67 degree

● TPU over molded and PA+GF or metal shell
● Over-molding fixing style, easy to operate

● 3P 4P 5P 8P are available

● A code B code D code are available
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.





FAQ



What is T connector ?

A T connector is an electrical connector that connects three cables together. It is usually in the shape of a capital T. It is usually used for coax cables and the three connector points can be either female or male gender, and could be different or the same standard, such as F type, BNC or N type.



What is M12 interface?

M12 connection technology is well established in sensor-actuator and fieldbus cabling and provides several advantages in industrial environments. Figure 2: Pin configurations for M12 Ethernet connectors: (left) four pin D coded and (right) eight pin A coded.
