Name: Male To Malex2 NMEA 2000 Cables Y Splitter Connector Plastic Boat Cordsets
Brand: CABLEFORCE
SKU: MC03Y-MMMAP
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (126 reviews)

Home Products NMEA 2000 Cables

Male To Malex2 NMEA 2000 Cables Y Splitter Connector Plastic Boat Cordsets

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MC03Y-MMMAP

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Coding:	A Coding	Gender:	Male To Male X 2
Reference Standard:	IEC 61076-2-101	Rated Current:	4A
Rated Voltage:	250V	Impulse Voltage:	2500V
Protection Degree:	IP67,IP68	Series:	NMEA 2000 Y Splitter
High Light:	Male To Malex2 NMEA 2000 Cables , Y Splitter NMEA 2000 Cables , Plastic Boat NMEA 2000 Splitter

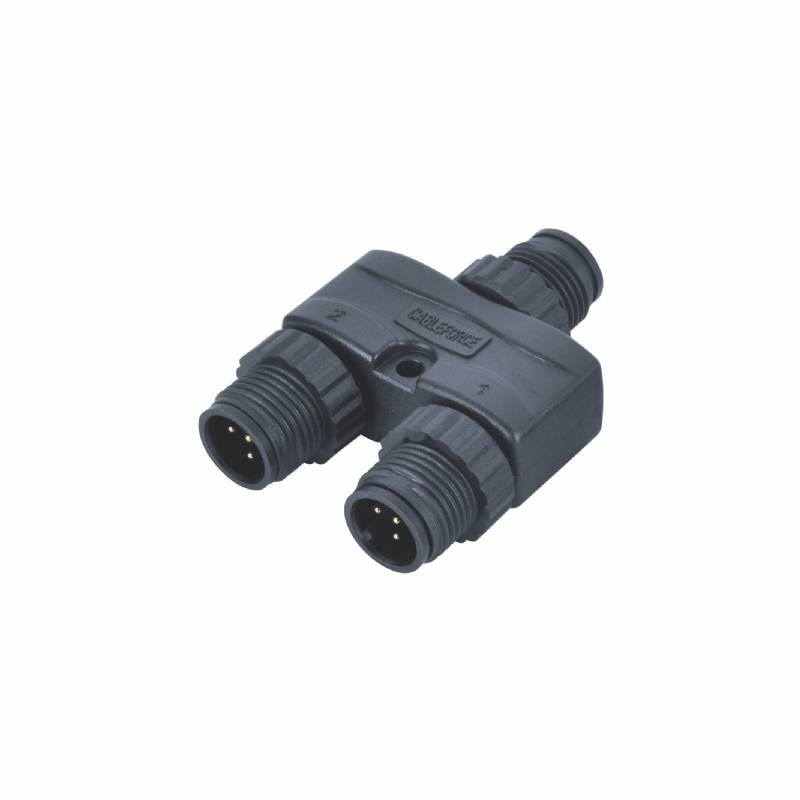

M12 NMEA 2000 Cables Y Splitter Connector Male To Malex2 Plastic Boat Cordsets

Connector Technical Data
Model Number	MC05Y-MMMAP
Contact No	5 pin
Coding	A coded
Screw Type	Plastc Screw
Screw Net	M12 x 1.0 screw
Contact plating	Au (Gold)
Type	NMEA 2000 Y Splitter
Contact Body	TPU
Contacts plating	Au ( Gold )
Contact	Male: Brass, Female: Phosphor bronze
O-ring	FKM Silicon
Protection Degree	IP67,IP68

Description

M12 Y-adapters splits wires into 2 separate connectors, allowing installation of two single-channel input or output devices to each port of hardwired distribution box. Connectors are available with parallel circuits, which allow input or output signals to run or trigger devices simultaneously.

CABLEFORCE Products Features

● M12*1 thread locking mechanism, anti-vibration locking design

● Easy quick connect and disconnect coupling
● Pin configurations: 4, 5, 8 positions

● 3P 4P 5P 8P are available

● A, B, D coding available
● Accept OEM & ODM order to meet your customized requirement
● RoHS, REACH compliant.

FAQ

● What is Y splitter cable?

A “Y Splitter” is a common term used for any cable that has a single connector on one end, and a dual connector on the other.

● What is a Y splitter cable used for?

Y splitter Cable The Shimano EW JC130 Y connector cable is used to connect two shifters to a Junction box or Systems Informations Display while using only one e Tube port. It is generally used with the EW RS910 junction mainly because that specific junction only has two e Tube ports.

Male To Malex2 NMEA 2000 Cables Y Splitter Connector Plastic Boat Cordsets 0
