NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body

NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body

  • NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body
NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC03Y-MFFAB
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Reference Standard: IEC 61076-2-101 Series: Y Splitter
Coding: A, B, C, D Gender: Male To Female X 2
Locking System: M12 X 1.0 Screw Connector Body: TPU
Contact Carrier: TPU + GF Protection Degree: IP67,IP68
High Light:

NMEA 2000 Y Splitter M12

,

TPU Body Y Splitter M12

,

M12 Y Splitter Connector

M12 NMEA 2000 Y Splitter Connector Male To Female X 2

Connector Technical Data
Model Number MC03Y-MFFAB
Contact No 3Pin, 4Pin, 5Pin, 8Pin
Coding
A coded
Screw Type Metal Screw
Locking System
M12 x 1.0 screw
Contact plating
 Au (Gold)
Type
M12 NMEA 2000 Y Splitter
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel plated
Contact
Male: Brass, Female: Phosphor bronze
O-ring FKM Silicon
Protection Degree
IP67,IP68


Description

M12 L-adapters splits wires into 2 separate connectors, allowing installation of two single-channel input or output devices to each port of hardwired distribution box. Connectors are available with parallel circuits, which allow input or output signals to run or trigger devices simultaneously.





CABLEFORCE Products Features


M12*1 thread locking mechanism, anti-vibration locking design

Easy quick connect and disconnect coupling
Pin configurations: 4, 5, 8  positions

● 3P 4P 5P 8P are available

A, B, D coding available
Accept OEM & ODM order to meet your customized requirement
● RoHS, REACH compliant.





FAQ



What is Y splitter cable?

A “Y Splitter” is a common term used for any cable that has a single connector on one end, and a dual connector on the other.



● What do y splitters do?

Y-splitter also called a Y-cable, is a type of cable adapter that is arranged in a Y-shaped formation and is used to connect one device to a pair of other devices.

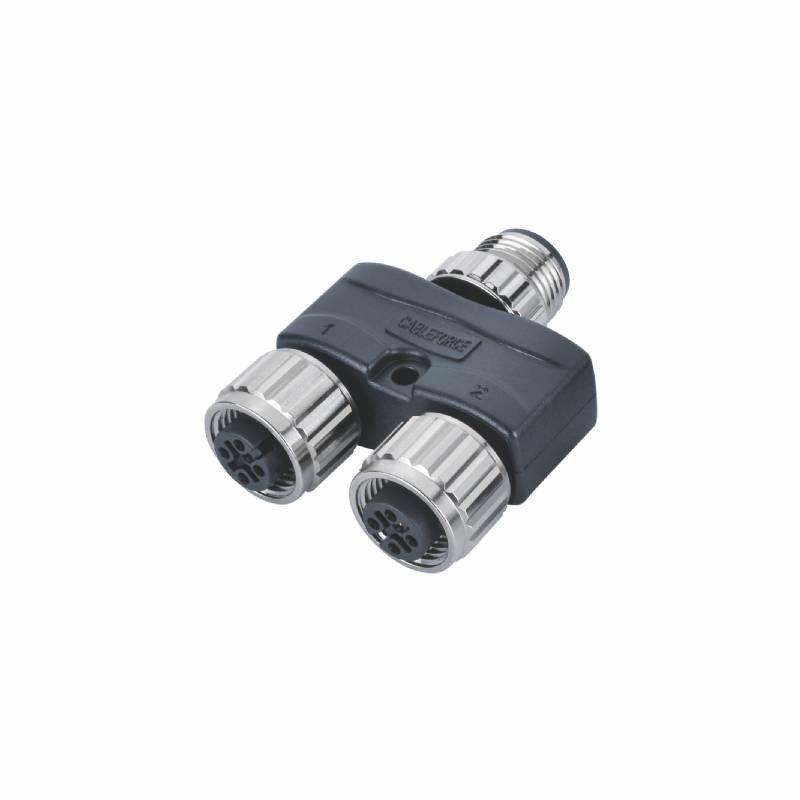

NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body 0

NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body 1
