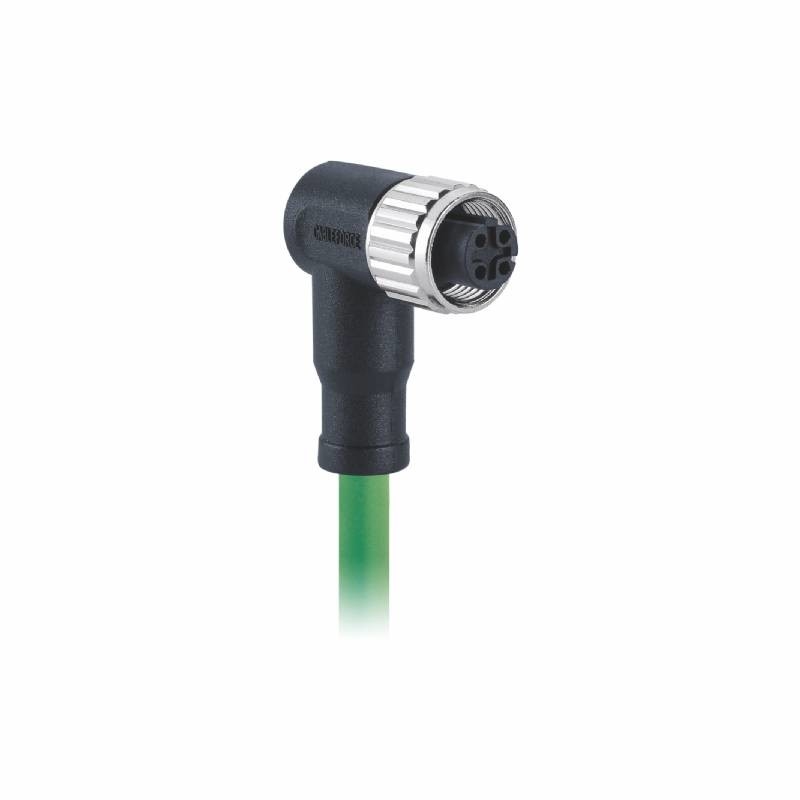

4 Pin Female D Code M12 Ethernet Cable PUR Jacket 5m AWG22 Ul Approvals

4 Pin Female D Code M12 Ethernet Cable PUR Jacket 5m AWG22 Ul Approvals

  • 4 Pin Female D Code M12 Ethernet Cable PUR Jacket 5m AWG22 Ul Approvals
4 Pin Female D Code M12 Ethernet Cable PUR Jacket 5m AWG22 Ul Approvals
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC04C1RSDSB22RG50
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 04 Pin Cable Length: 5M
Application: Ethernet Cat 5e Over-molding: TPU
Connector Gender: Female Connector Cable Jacket: PUR
Keyway Coding: D-Coding Cable Color: Green
High Light:

4 Pin M12 Ethernet Cable

,

D Code M12 Ethernet Cable

,

5m M12 4 Pin Ethernet Cable

M12 Ethernet Circular Connector 4 Pin Female D Code PUR Cable AWG22 Ul Approvals

Connector Technical Data
Part No. MC04C1RSDSB22RG50
Connectors No. 4Pin
Application Ethernet Cat 5e
Color Green
Rated Voltage 250V
Impulse voltage 2500V
Length 5 M
Insulation Resistance ≥100MΩ
Contact Resistance ≤5mΩ
Termination Soldering
Contact Male: Brass, Female: Phosphor bronze
Protection Degree IP67,IP68


Description

M12 Pre-molded (PUR/PVC) cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, the B-Coding 5 poles contacts configuration with 360°EMC shielding design. Compliant with IEC 61076-2-101 and mainly designed for Fieldbus signal transmission, provide quick connection between the field Devices and cables. CABLEFORCE offers ether singled ended cable or double ended cables which are ready for plug-in use.



CABLEFORCE Products Features


● IP67 IP68 IP69 and UL approvals

● Shielded version
● Anti-vibration locking screw design
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● Application : Ethernet Cat 5e SFTP
● Current rating : 4A

● Operation voltage : 250V

● Cable length : customized
● RoHS, REACH compliant.





FAQ



What is D-coded?

D-coded connectors are typically used in network cables for Ethernet and ProfiNet systems. D-coded connectors transfer data up to 100 Mb. These connectors typically provide three to five pins. These are ideal for high-speed data transfer in industrial applications.



What is CAT5e Cable?

CAT5e, also known as Category 5e or Category 5 Enhanced, is a network cable standard ratified in 1999. CAT5e offers significantly improved performance over the old CAT5 standard, including up to 10 times faster speeds and a significantly greater ability to traverse distances without being impacted by crosstalk. CAT5e cables are typically 24-gauge twisted pair wires, which can support Gigabit networks at segment distances up to 100 m.

 CAT5e vs CAT6 Speed?
Because CAT6 cables perform up to 250 MHz which is more than twice that of CAT5e cables (100 Mhz), they offer speeds up to 10GBASE-T or 10-Gigabit Ethernet, whereas CAT5e cables can support up to 1GBASE-T or 1-Gigabit Ethernet.
