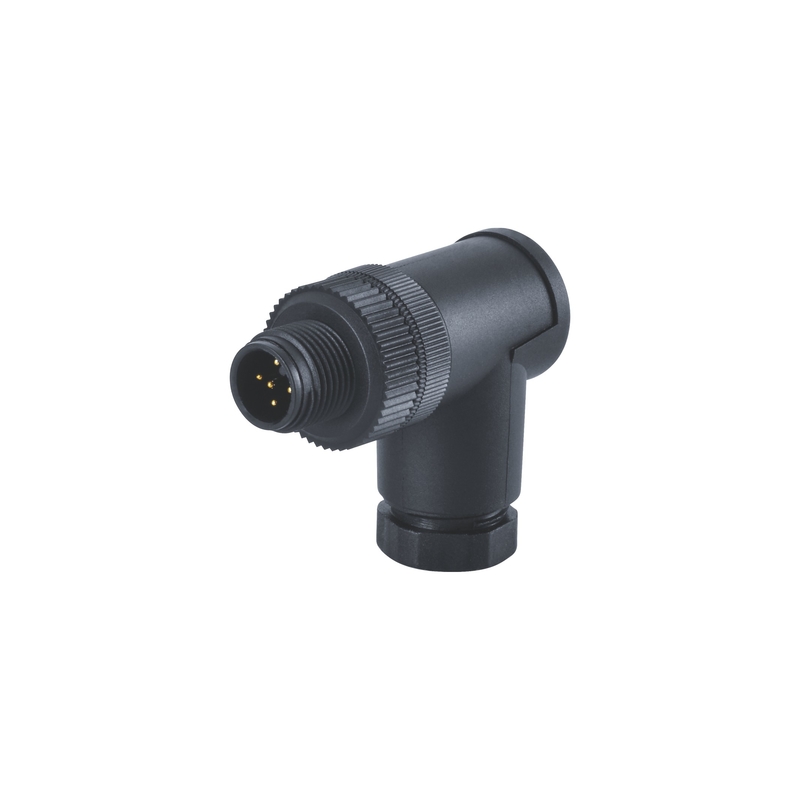

Right Angled Field Installation M12 Connector 5 Pin A Code Screw Termination Pg9

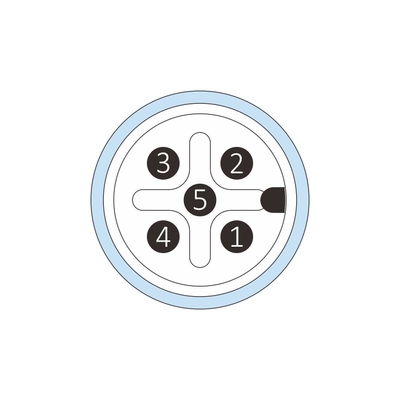

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, M, Y-Coding.

● Cableforce field wireable connector is available with contacts: 3pin, 4pin, 5pin, 8pin, 12pin
● We also sell the related bulk cables with unshieled, shielded, oil resistant, hydrolysis resistant, UV-resistant options
● The receptacle counter part with PCB contacts or Solder type panel mount connectors with wires
● Operating voltage 250V/ 60V/ 30V;
● Current range: 4A, 2A, 1.5A
● Degree of protection IP67

Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

How can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

Always double confirm drawing before production .

Using Best in Class Materials

Cableforce Advantages

1. 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 10 years warranty upon customer requirement.
3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time
4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5. Unique designed package for you can be provided upon customer requirement.
6. Special feature and service can be provided upon requirement.

Cableforce Company Profile

Cableforce focuses on the industrial connectors and cable assmebly's reaeach,development,manufature and sales.Whether the requirements are large or small,complex or simple,Cableforce has the experience and skills to get the job done right.With the efficient modern machinery and instruments of cable and connector‘s development and production,enable us supplying customers with 2D,3D designing,tooling & prototyping,cable cutting,soldering,crimping,epoxy resin injection,plastic injection molding,printing and testing.
