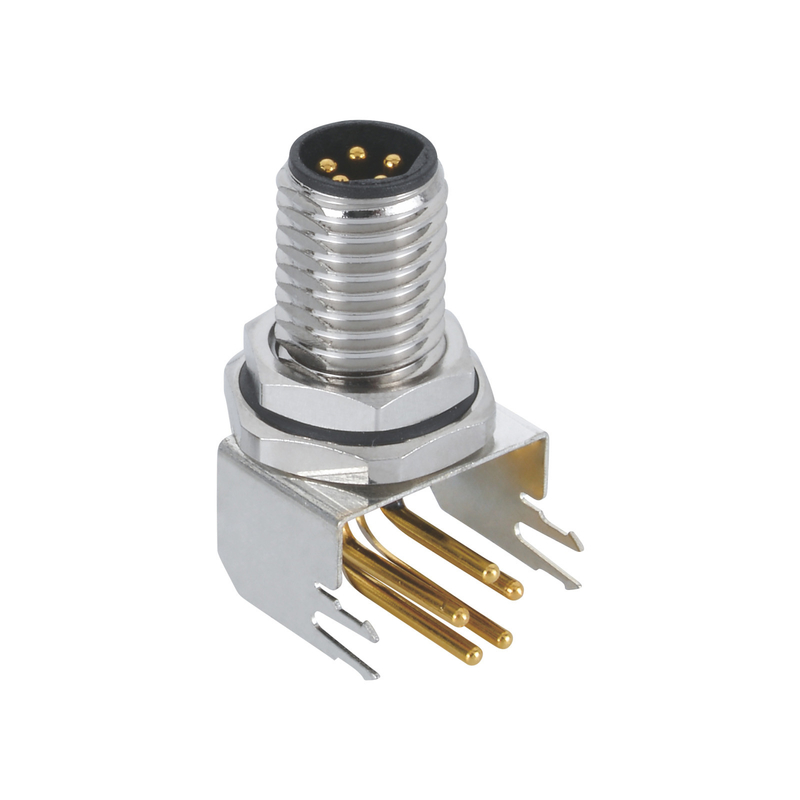

5Pin M8 Circular Connector 3A 30V Right Angled Male Panel Connector

5Pin M8 Circular Connector 3A 30V Right Angled Male Panel Connector

  • 5Pin M8 Circular Connector 3A 30V Right Angled Male Panel Connector
5Pin M8 Circular Connector 3A 30V Right Angled Male Panel Connector
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MB05P1LPBSB
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: M8 90° Panel Connector Contacts No.: 5Pin
Rated Current: 3A Rated Voltage: 30V
Tightening Torque: Recommend: 0.3Nm, Max: 0.6Nm Termination: PCB Dip Soldering
Protection Degree: IP67, IP68 Warranty: 1 Year
High Light:

5Pin M8 Circular Connector

,

M8 Circular Connector 3A 30V

,

Male M8 Right Angle Connector

M8 Male Panel PCB Contacts Shielded Right Angled Circular Connector Front Side Fastening

Connector Technical Data
Contacts No. 5Pin
Reference standard IEC 61076-2-104
Rated current 3A
Rated voltage 30V
Impulse voltage 500V
Locking system M8×1.0 screw
Tightening torque Recommend: 0.3Nm, Max: 0.6Nm
Termination PCB Dip Soldering
Rated temperature -25℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Contact carrier TPU+GF
Screw nut Brass, CNC, Nickel-plated
Contact Brass
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67, IP68
Pollution degree 3


Description

Our connectors can also be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.




Product Features
● Pin configurations: 3, 4, 5 positions
● A, B coding available
● Shielded and Un-shielded version available




FAQ

● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.


● What does the coding means on M8 connector?
This coding prevents incorrect mating on products.


● What is the Applications of the M8 connector?
Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves.


● What is the difference between M8 and M12?
Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connections. The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.


● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.


● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.


● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.


● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
