4 Pin Male To 4 Pin D Code Male m8 m12 connectors Molded PVC Cat5e 4x22AWG

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MB-MC04C5LSDSB22CG05

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Reference Standard:	IEC 61076-2-104	Rated Current:	1.5A
Rated Voltage:	30V	Cable Specification:	0.34mm² (AWG 22)
Gender:	Male To Male	Termination:	Soldering
Application:	Small Sensors,Shielded ,Actuators	Contact Carrier:	TPU+GF
Over-molding:	TPU	Pollution Degree:	3
Cable Color:	Green	Cable Length:	0.5 M Or Customized Length
Keywords:	M8 To M12 Cable
High Light:	D Code M8 M12 Connectors , Cat5e M8 M12 Connectors , 4x22AWG M8 Circular Connector

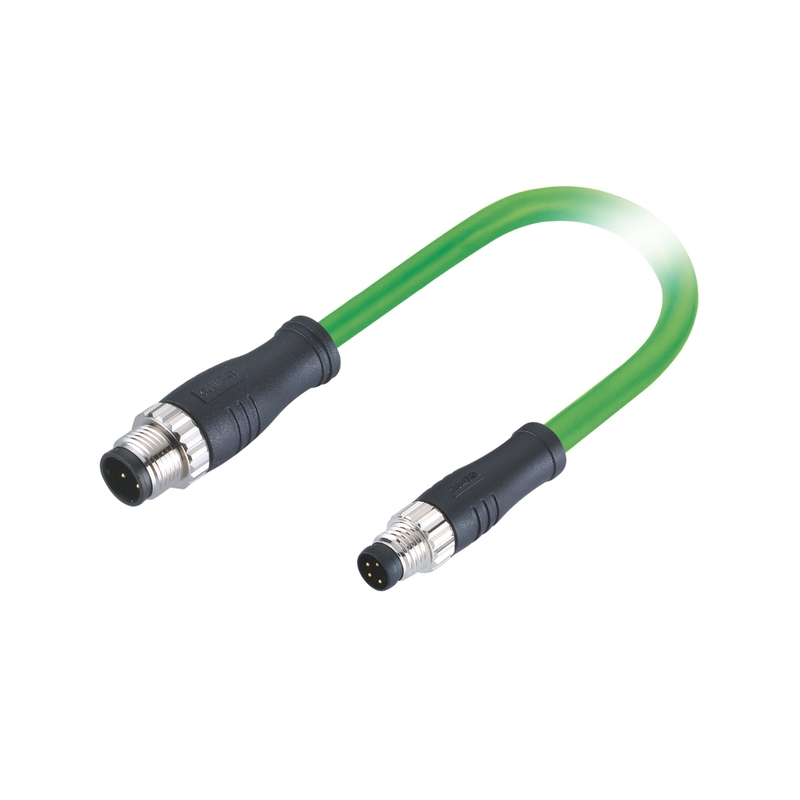

M8 4 Pin Male to M12 4 Pin D Code Male Connector Molded PVC Cat 5e 4x22AWG Ethernet Cable

Connector Technical Data
Model Number	MB-MC04C5LSDSB22CG05

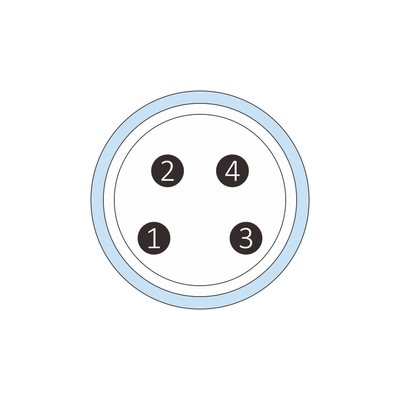

Product Name	M8 A code connector to M12 D Code male molded cable
Contact No	4 pin

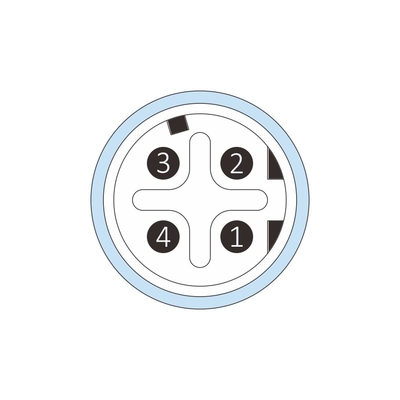

Coding	D Coding
Rated Current	4A
Rated Voltage	250V
Wire Gauge	0.34mm²(AWG 22)
Locking System	M8 × 1.0 screw
Connector Type	Straight
Contact Carrier	TPU+GF
Termination	Soldering
Screw Nut	Brass CNC Nickel plated
Contact	Brass
O-Ring	FKM,Silicon O-Ring
Cable Jacket	PVC Cable or PUR Cable
Protection Degree	IP67,IP68

Description Of M8 Circular Cable Connectors

CABLEFORCE offers tailor-made industrial PROFINET connecting cable cordsets. We are also supplying of other fieldbus cables compatible with most major fieldbus protocols, including CANopen, PROFIBUS, DeviceNet™, CAN Bus, CC-Link and ASI Bus and industrial EtherCAT, EtherNet/IP™ and other industrial Ethernet protocols with bandwidth from Cat 5e, Cat 6A to Cat7. We provide customers with the following cable custom services:

● Custom cable color and length, custom print and labeling as well as packaging
● Custom Material: Extreme Temperature Resistant, High Flexible, UV Resistance, Oil Resistance, LSZH, Hydrolysis Resistance, Anti-Corrosion;
● Connector Configuration: Single Ended, Double Ended, multi Ended, multi-core wire, mixed joint and other configurations;
● Mechanical Reliable: Mating Life, EMI/EMC Shielding, Waterproof, Dustproof, Anti Vibration, Abrasion Resistant, Bending Endurance, Drag Chain, Welding resistant, etc.;
● Transmission Performance: Bandwidth, Voltage and Current rating, Impedance and Measurement Accuracy, etc.

Ordering No. For Reference

● MB-MC04C5LSASB26RG05-C5E

● MB-MC04C5LSASB26RG10-C5E

● MB-MC04C5LSASB26RG20-C5E
● MB-MC04C5LSASB26RG30-C5E

● MB-MC04C5LSASB26RG50-C5E
● MB-MC04C5LSASB26RG100-C5E

FAQ

● What Size is an M8 Connector?

The M8 connectors can be soldered to cables with #24AWG conductors, and a 4 to 6 mm (. 16 to . 24") cable diameter. Male and female connectors, with straight or right angled connection styles provide a wide selection of connection options

●What are M12 connectors Application?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 2,2+3,3, 4, 5, 8,12, and 17 pins.

●How about M5 Connector?

Various M5 connector applications include transportation and control systems, automated doors & ramps, sensor connectivity as well as many data & communication device applications.
