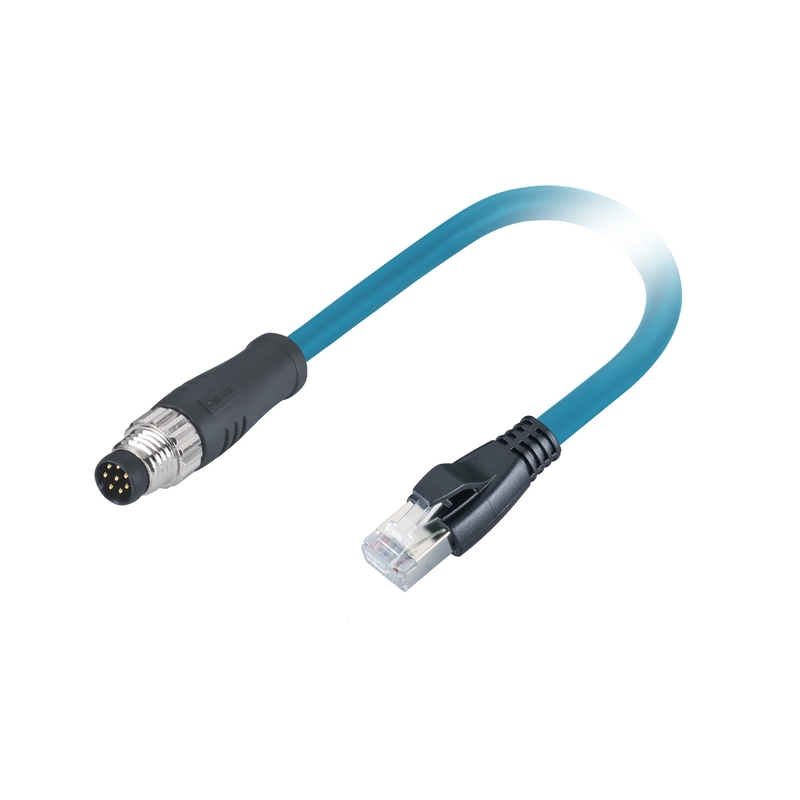

Name: Waterproof A Code M8 8 pin Connector Male To RJ45 Male Molded With PUR 1M Cat6A
Brand: CABLEFORCE
SKU: MB-RJ5E08C5LSASB26RG10-C6A
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (118 reviews)

Home Products M8 Circular Connector

Waterproof A Code M8 8 pin Connector Male To RJ45 Male Molded With PUR 1M Cat6A

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MB-RJ5E08C5LSASB26RG10-C6A

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Reference Standard:	IEC 61076-2-104	Rated Current:	1.5A
Rated Voltage:	30V	Cable Specification:	0.14mm² (AWG 26)
Gender:	Male To Male	Termination:	Soldering
Application:	Small Sensors,Shielded ,Actuators	Contact Carrier:	TPU+GF
Over-molding:	TPU	Pollution Degree:	3
Cable Color:	Dark Green	Cable Length:	1 M Or Customized Length
Keywords:	M8 Connector To RJ45
High Light:	Waterproof M8 8 Pin Connector , Cat6A M8 8 Pin Connector , Ethernet Cable Shielded M8 Circular Connector

China Supplier M8 A Code 6pin Connector Male To Female Double Ended Molded With PVC Cable Un Shielded

Connector Technical Data
Model Number	MB-RJ5E08C5LSASB26RG10-C6A

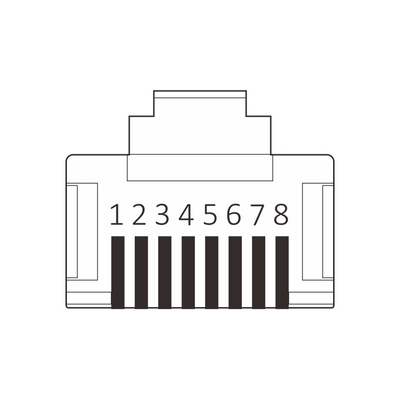

Product Name	M8 A code connector to RJ45 male molded cable

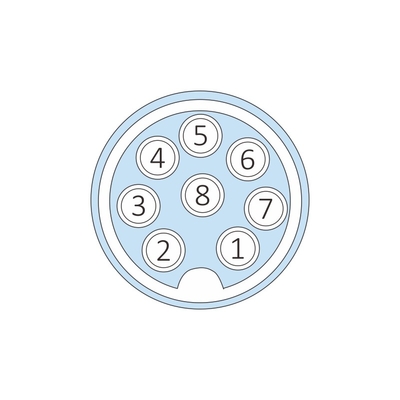

Contact No	8 pin
Coding	A Coding
Rated Current	1.5A
Rated Voltage	30V
Wire Gauge	0.14mm²(AWG 26)
Locking System	M8 × 1.0 screw
Connector Type	Straight
Contact Carrier	TPU+GF
Termination	Soldering
Screw Nut	Brass CNC Nickel plated
Contact	Brass
O-Ring	FKM,Silicon O-Ring
Cable Jacket	PVC Cable or PUR Cable
Protection Degree	IP67,IP68

Description Of M8 Circular Cable Connectors

CABLEFORCE offers tailor-made industrial PROFINET connecting cable cordsets. We are also supplying of other fieldbus cables compatible with most major fieldbus protocols, including CANopen, PROFIBUS, DeviceNet™, CAN Bus, CC-Link and ASI Bus and industrial EtherCAT, EtherNet/IP™ and other industrial Ethernet protocols with bandwidth from Cat 5e, Cat 6A to Cat7. We provide customers with the following cable custom services:

● Custom cable color and length, custom print and labeling as well as packaging
● Custom Material: Extreme Temperature Resistant, High Flexible, UV Resistance, Oil Resistance, LSZH, Hydrolysis Resistance, Anti-Corrosion;
● Connector Configuration: Single Ended, Double Ended, multi Ended, multi-core wire, mixed joint and other configurations;
● Mechanical Reliable: Mating Life, EMI/EMC Shielding, Waterproof, Dustproof, Anti Vibration, Abrasion Resistant, Bending Endurance, Drag Chain, Welding resistant, etc.;
● Transmission Performance: Bandwidth, Voltage and Current rating, Impedance and Measurement Accuracy, etc.

Ordering No. For Reference

● MB-RJ5E08C5LSASB26RG05-C6A

● MB-RJ5E08C5LSASB26RG10-C6A

● MB-RJ5E08C5LSASB26RG20-C6A
● MB-RJ5E08C5LSASB26RG30-C6A

● MB-RJ5E08C5LSASB26RG50-C6A
● MB-RJ5E08C5LSASB26RG100-C6A

FAQ

● What Size is an M8 Connector?

The M8 connectors can be soldered to cables with #24AWG conductors, and a 4 to 6 mm (. 16 to . 24") cable diameter. Male and female connectors, with straight or right angled connection styles provide a wide selection of connection options

●What are M12 connectors Application?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 2,2+3,3, 4, 5, 8,12, and 17 pins.

●How about M5 Connector?

Various M5 connector applications include transportation and control systems, automated doors & ramps, sensor connectivity as well as many data & communication device applications.
