| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |
| Model Number: | MB04A1LWASB |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |

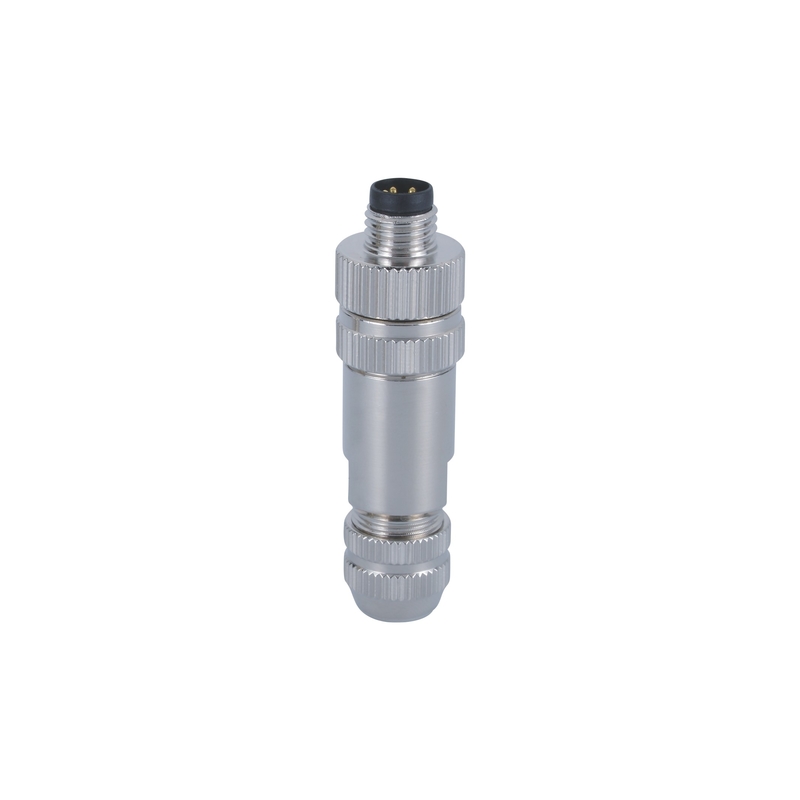

| Connector Type: | Field Wireable Connector | Contacts No.: | 3Pin, 4Pin |
|---|---|---|---|
| Wire Gauge: | 0.25~0.34mm²(AWG 24~22) | Screw Nut: | Brass, CNC, Nickel-plated |
| Reference Standard: | IEC 61076-2-104 | Rated Temperature: | -25℃ ~ +80℃ |
| Protection Degree: | IP67 | Warranty: | 1 Year |
| High Light: | CUL 4 Pin Male Connector,M8 4 Pin Male Connector,Brass Screw Shielded M8 Circular Connector |
||
| Connector Technical Data | |

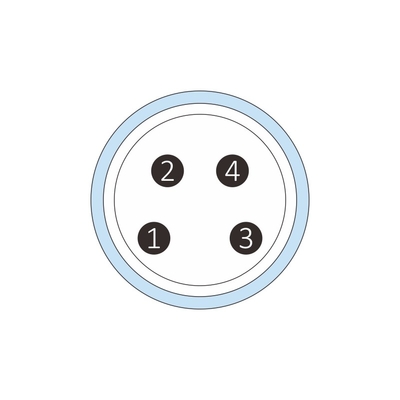

| Contacts No. | 3Pin, 4Pin |
| Referance standard | IEC 61076-2-104 |
| Rated current | 3A |
| Rated voltage | 60V |
| Impulse voltage | 1500V |
| Locking system | M8×1.0 screw |
| Tightening torque | Recommend: 0.2Nm, Max: 0.4Nm, Wire screw: 0.1Nm, Cable gland:0.3~0.8Nm |
| Termination | Screw fixing |
| Wire gauge | 0.25²~0.34²(AWG 24~22) |
| Rated temperature | Flexible: -25℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Over-molding | Brass, CNC, Nickel-plated |
| Contact carrier | PA66+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Brass |
| Contacts plating | Au(Gold) |
| O-ring | FKM, NBR |
| Protection degree | IP67 |
| Pollution degree | 3 |
M8 A-Coding connectors is a connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, generally connecting with automation sensors in factory packaging and delivery system, outdoor LED module, security grating screen, and new energy signal control applications.
● Cable plugs, field installable plugs, panel receptacles are available
● Degree of protection IP 67
● Operating voltage 60V, current 4A ~ 1A
● Anti-vibration locking design
● 3Pin, 4Pin aie available
FAQ
● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.
● What does the coding means on M8 connector?
This coding prevents incorrect mating on products.
● What is a Field Wireable connector?
Field wireable connectors and T-couplers are used to build custom patch cables, provide a quick-disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port. Axial, right-angle and T-connectors are available in a variety of sizes and terminal pole configurations.
