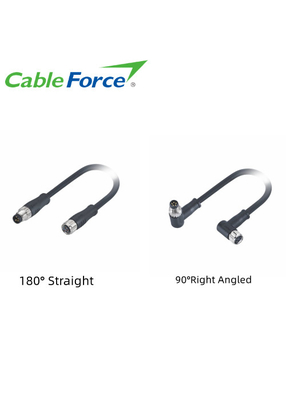

A Code Male To Female M8 6 Pin Connector With PVC Cable Unshielded

A Code Male To Female M8 6 Pin Connector With PVC Cable Unshielded

A Code Male To Female M8 6 Pin Connector With PVC Cable Unshielded
A Code Male To Female M8 6 Pin Connector With PVC Cable Unshielded
A Code Male To Female M8 6 Pin Connector With PVC Cable Unshielded
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MB06C3RSAB24CK50
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Reference Standard: IEC 61076-2-104 Rated Current: 1.5A
Rated Voltage: 30V Cable Specification: 0.14mm² (AWG 26)
Gender: Male To Female Termination: Soldering
Application: Small Sensors,Shielded ,Actuators Contact Carrier: TPU+GF
Over-molding: TPU Pollution Degree: 3
Cable Color: Black Cable Length: 5 M Or Customized Length
Keywords: M8 A Code Connector
High Light:

Double Ended Molded M8 Circular Connector

,

A Code M8 6 Pin Connector

,

PVC Cable M8 6 Pin Connector

China Supplier M8 A Code 6pin Connector Male To Female Double Ended Molded With PVC Cable Un Shielded

Connector Technical Data

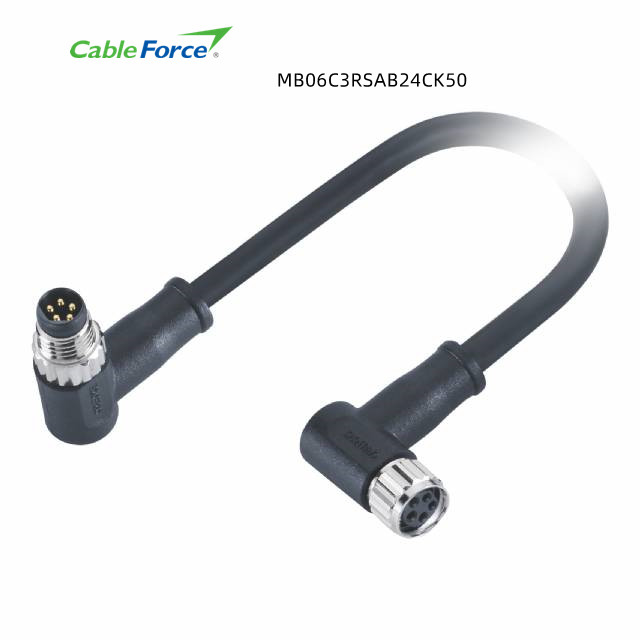

Model Number MB06C3RSAB24CK50
Product Name M8 A code connector
Contact No 6 pin
Coding A Coding
Rated Current 1.5A
Rated Voltage 30V
Wire Gauge
0.14mm²(AWG 26)
Locking System M8 × 1.0 screw
Connector Type
90° Right Angled
Contact Carrier
TPU+GF
Termination Soldering
Screw Nut
Brass CNC Nickel plated
Contact
Brass
O-Ring FKM,Silicon O-Ring
Cable Jacket PVC Cable or PUR Cable
Protection Degree
IP67,IP68

Description Of M8 Circular Cable Connectors


The Cableforce M8 series provides a wide range of matric M8 connectors for small sensors and actuators ,these connectors are ideally suited for industrial control networks where small sensors are required.Connectors are either factory TPU over -molded or panel receptacles supplied with sold - cup for wire connecting or with PCB panel solder contacts,Field attachable / mountable connector is also available for your choice.M8 connector include  A-coding (3,4,6,8 poles are available ) and B-coding (5 poles) ,A-coding can be use for flexible for application including small power applications for servo drives,Ethernet,and the B-coding widely apply in flexible solutions for application including small power applications for servo drives.



Ordering No. For Reference


● MB03C3RSAB24CK20

● MB03C3RSAB24RK50

● MB04C3RSAB24CK50
● MB05C3RSBB24RK20

● MB06C3RSAB26CK20
● MB08C3RSBB26RK100



FAQ

What Size is an M8 Connector?
The M8 connectors can be soldered to cables with #24AWG conductors, and a 4 to 6 mm (. 16 to . 24") cable diameter. Male and female connectors, with straight or right angled connection styles provide a wide selection of connection options



What are M12 connectors Application?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 2,2+3,3, 4, 5, 8,12, and 17 pins.



How about M5 Connector?
Various M5 connector applications include transportation and control systems, automated doors & ramps, sensor connectivity as well as many data & communication device applications.

What’s your advantage?
  1. Free Techincal Consultation
  2. Free Techincal Drawings
  3. Samples & Prototypings
  4. Using Best in Class Materials
  5. Custom Labels & Packing
  6. Competitive Pricing


A Code Male To Female M8 6 Pin Connector With PVC Cable Unshielded 0A Code Male To Female M8 6 Pin Connector With PVC Cable Unshielded 1
