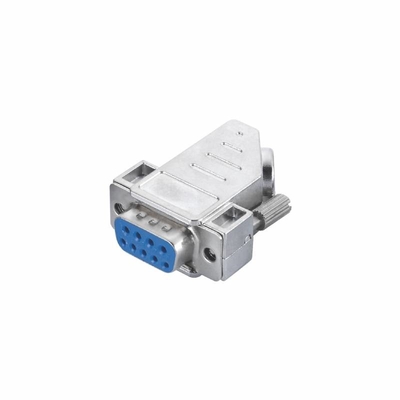

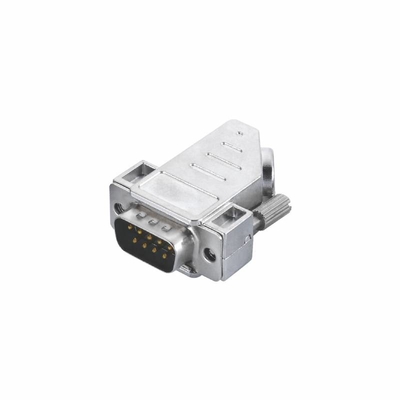

IEC 60807 3 9 Pin D Shell Connector IP69K Field Wireable Soldering Termination

IEC 60807 3 9 Pin D Shell Connector IP69K Field Wireable Soldering Termination

  • IEC 60807 3 9 Pin D Shell Connector IP69K Field Wireable Soldering Termination
  • IEC 60807 3 9 Pin D Shell Connector IP69K Field Wireable Soldering Termination
IEC 60807 3 9 Pin D Shell Connector IP69K Field Wireable Soldering Termination
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, IP67, IP69K
Model Number: DB09A1LSZ15
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Reference Standard: IEC 60807 3 Contacts No.: 9 Pin
Gender: Male Female Locking System: 2 X UNC 4 40 Screw
Termination: Soldering Connector Body: Zinc Alloy
High Light:

IEC 60807 3 9 Pin D Shell Connector

,

Soldering 9 Pin D Shell Connector

,

IP69K 9 Pin D Connector

Shielded Screen VGA D Sub Cable Connector Field Wireable Soldering Termination

Connector Technical Data
Model Number
DB09A1LSZ15
Connectors No.
9 Pin
Rated current 5A
Rated Voltage
300V
Impulse Voltage
300V
Insulation Resistance 100MΩ
Contact Resistance 10MΩ
Contact Carrier PBT GF


Describe

The D-subminiature or D-sub is a common type of electrical connector. They are named for their characteristic D-shaped metal shield. When they were introduced, D-subs were among the smallest connectors used on computer systems.


Types of D-sub Connectors

We can differentiate D-sub connectors using several factors:

  • Number of pins or jacks. Letters A through E and their corresponding numbers indicate the number of contacts in the shell of each connector’s plug or socket. For example, the smallest common type of D-sub is the DE-9 (also DB-9), made up of a plug with nine pins matched to a socket with nine jacks. Some D-subs have “HD” added to their names, which indicates that they are high-density. HD D-subs feature a closer arrangement of pins and jacks within the shell.
  •
  • Connection Methods. D-sub connectors vary in how they connect the contacts and the system circuitry. One of D-subs’ advantages is that they are well-suited for locking technology. Locking technology means that hardware keeps the plug and socket components in the mated position – usually by way of screws inserted into threaded holes attached to the metal shell of each part. Locked D-sub ports are more resistant to tampering and jostling than USB ports, HDMI, or Thunderbolts.
  •
  • Connection Duration. D-sub ports also offer a range of connecting styles for other uses, such as crimping (easiest for temporary and at-home connections) and soldering (for more permanent connections).

Another subtype of D-sub connector is an ITT trademark called the microminiature-D or “micro-D.” Micro-D connectors are even smaller than standard D-subs, and you can find them in use almost exclusively for space-grade



FAQ



Advantages and Disadvantages of D-sub Connectors

When D-subs emerged in the 1950s, they were the most compact and effective connectors on the market. Personal computers featured D-sub ports for an array of external connections, including printers and Ethernet components. You can still find them at use in consumer electronics today, but they no longer dominate the market.

D-subs ports’ large size and unpredictable data transfer speeds have made them susceptible to replacement by newer technologies like USB ports for applications such as connecting personal computers and external devices. The USB port has largely replaced DE-9 for use in personal computers and memory components. Another disadvantage of D-sub is that its implementation requires an additional power source, as it contains lines for data and communication but not for power.
