Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, IP67, IP69K |
| Model Number: | MBC2DB15A3LPZ24CK20 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Reference Standard: | IEC 60807 3 | Contacts No.: | VGA 15 Pin, DVI 25 Pin |
|---|---|---|---|
| Length: | 2 Meters | Termination: | Soldering |
| Connector Body: | Zinc Alloy | Gender: | Male |

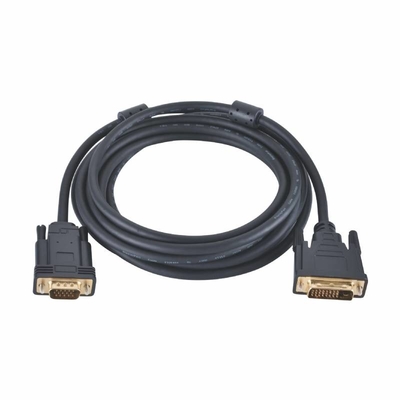

| High Light: | 1A 30V VGA To DVI Cable,Shielded VGA To DVI Cable,CUL DVI And VGA Cable |
||
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MBC2DB15A3LPZ24CK20 | ||||||||
|
Connectors No.
|
15 Pin, 25 Pin | ||||||||
| Rated current | 1A | ||||||||
|
Rated Voltage
|
30V
|
||||||||
|
Impulse Voltage
|
500V | ||||||||
| Insulation Resistance | 100MΩ | ||||||||
| Contact Resistance | 10MΩ | ||||||||
| Contact Carrier | PBT GF | ||||||||
D-Sub and DVI are the current standard interfaces in PC environments.
Known officially as D-Sub miniature, D-Sub is not exclusive to display use. It's also used for serial-port, parallel-port, SCSI, and other connectors, with the number of connector pins depending on the purpose of use. However, these connector standards are rarely if ever found in PCs now for general-purpose personal use, most such applications having migrated to USB
Applications
FAQ
●Can VGA Do 1080p Like HDMI?
The maximum resolution of the analog VGA is 800 x 600 pixels normally but this can be stretched from 1920 x 1080 to 2048 x 1536 pixels depending on how decent the signal is or if you have a good enough cable and transceiver on either end. It’s for this reason and many more that we’re still talking about VGA and SVGA in 2020 even though VGA was made back in 1987 and the D-sub type of multi-pin connector was made back in 1952. It also helps that modern TVs and projectors have DVI or VGA ports behind them to allow PC connectivity.
