Home ProductsRJ45 Patch Cord

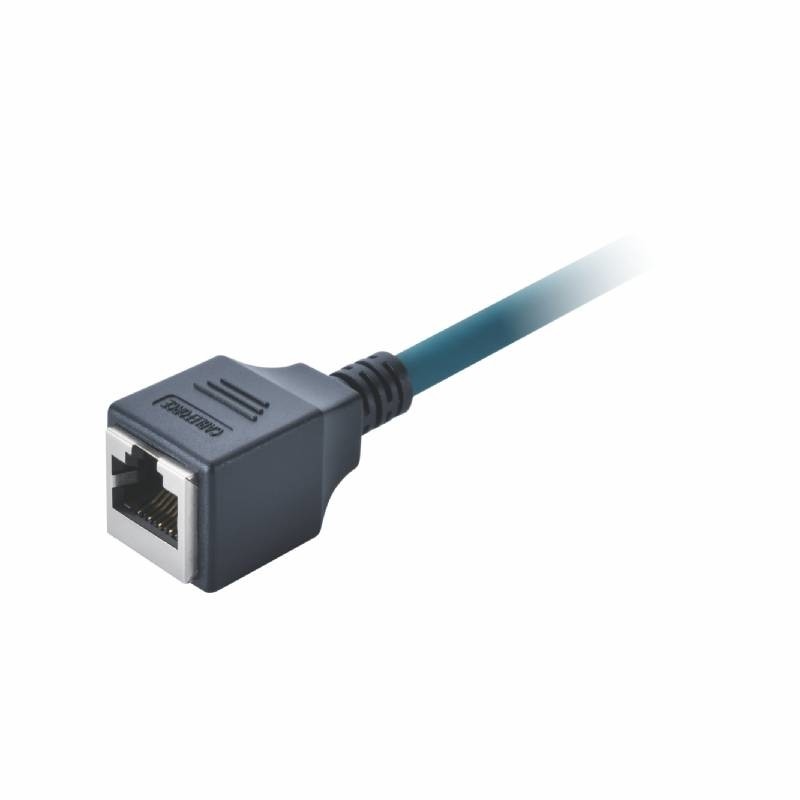

Green PUR 5m Cat5e Patch Cable M2x0.4 Screw Rj45 Socket Cable

Green PUR 5m Cat5e Patch Cable M2x0.4 Screw Rj45 Socket Cable

  • Green PUR 5m Cat5e Patch Cable M2x0.4 Screw Rj45 Socket Cable
Green PUR 5m Cat5e Patch Cable M2x0.4 Screw Rj45 Socket Cable
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, IP67, IP69K
Model Number: RJ5EC2LI26RG40
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Reference Standard: IEC 60603 7 7 Jacket Color: Green
Contacts No.: RJ45 8P8C Gender: Female
Termination: Insulation Percing Contact Cable Specification: AWG 26
Length: 5M Category: CAT 5E
High Light:

Green PUR 5m Cat5e Patch Cable

,

Socket 5m Cat5e Patch Cable

,

M2x0.4 Rj45 Socket Cable

Socket Cable Network Media RJ45 Patch Cord 8P8C Green PUR Male AWG 26 Plug

Connector Technical Data
Model Number
RJ5EC2LI26RG40
Connectors No.
RJ45 8P8C
Termination Insulation Percing Contect
Rated current 1.5A
Rated Voltage
30V
Impulse Voltage
1000V Contact to Contact, 1500 Contact to Screen
Locking System M2 x0.4 Screw
Contact carrier PC
Contect Phosphor Bronze, Gold Plated
Connector overmolding PVC, TPU


Description

Cableforce Electronics Co., Limited focuses on the industrial cable and connector‘s Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 3000㎡ premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, screw and contact pin machining, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.


Cable Characteristics (differences noted):

  • ANSI/TIA 568-2.D compliant and Permanent Link tested to Cat5e performance
  • Comes in shielded (F/UTP) or unshielded (U/UTP)
  • CMX rated LLDPE outdoor jacket for rain, snow, UV sunlight, and ice resistance
  • Not direct burial rated
  • 24AWG solid pure copper conductors

FAQ



● What is the difference between a cable and a connector?

A wire is a single strand of metal (e.g., copper) or optical fibers capable of transmitting power or data from one area to another. A connector is the unique end of a plug, jack, or the edge of a card that connects to a port.



●What is a RJ45 socket?

An RJ45 socket is a type of connector that is used to facilitate communication between two or more devices in a network. It resembles a telephone jack and is primarily used in Ethernet and computer networks. While an RJ45 socket resembles jacks used for telephone networks and wiring, it is characterized by a wider design.

Green PUR 5m Cat5e Patch Cable M2x0.4 Screw Rj45 Socket Cable 0
