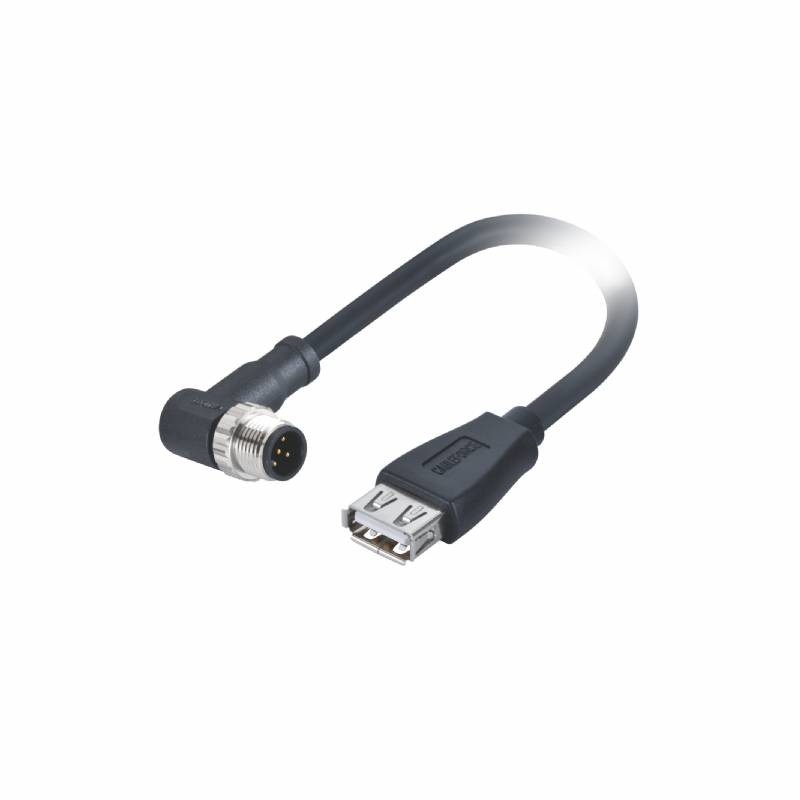

0.3m USB Connector Cables 4 Pin A Code Right Angled M12 USB Connector

0.3m USB Connector Cables 4 Pin A Code Right Angled M12 USB Connector

  • 0.3m USB Connector Cables 4 Pin A Code Right Angled M12 USB Connector
0.3m USB Connector Cables 4 Pin A Code Right Angled M12 USB Connector
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC04C1RSASB-U2C2-24CK03
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Coding: A-Coding Gender: Male To Female
Direction: Right Angled Type: M12 To USB2.0 Connector
Contact Carrier: TPU+GF Screw Nut: Brass,CNC,nickel-plated
Over-molding: TPU Reference Standard: IEC 61076-2-101
High Light:

0.3m USB Connector Cables

,

4 Pin M12 USB Connector Cables

,

Right Angled M12 USB Connector

M12 USB 2.0 Male Connector To Female Connector 4 Pin A Code 0.3m Cordsets

Connector Technical Data
Model Number MC04C1RSASB-U2C2-24CK03
Contact No 4 pin
Rated Current
1A
Rated Voltage
30V
Impulse Voltage
500V
Wire Gauge
0.34mm²(AWG 22)
Type
M12 to USB2.0 Connector
Contact Carrier
TPU+GF
Over-molding
TPU
O-ring
FKM Silicon O-Ring
Wiring Diagram
Red, White, Green, Black, Drain
Protection Degree
IP60


Description

Customized cable assembly with M12 5 Pin A-Coding right angled male connector molded with USB cable to USB 2.0 Female Plug, EMI-Shielded.





CABLEFORCE Products Features


● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Static: -40 ~ 80℃.
● Protection degree: IP60.
● RoHS, REACH compliant.



FAQ



What is A USB connector?

A USB port is a standard cable connection interface for personal computers and consumer electronics devices. USB stands for Universal Serial Bus, an industry standard for short-distance digital data communications. USB ports allow USB devices to be connected to each other with and transfer digital data over USB cables.



What can USB be used for?

The term USB stands for "Universal Serial Bus". USB cable assemblies are some of the most popular cable types available, used mostly to connect computers to peripheral devices such as cameras, camcorders, printers, scanners, and more.



What is USB and how it works?

USB is an interface that connects a device to a computer. With this connection, the computer sends or retrieves data from the device. USB gives developers a standard interface to use in many different types of applications. A USB device is easy to connect and use because of a systematic design process.





0.3m USB Connector Cables 4 Pin A Code Right Angled M12 USB Connector 0

0.3m USB Connector Cables 4 Pin A Code Right Angled M12 USB Connector 1
