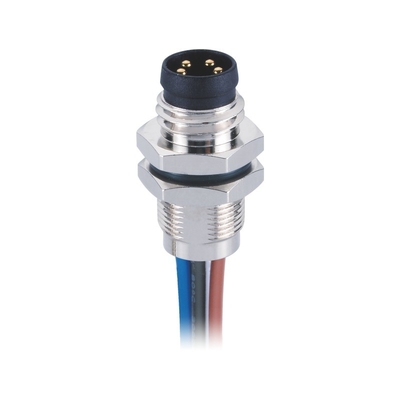

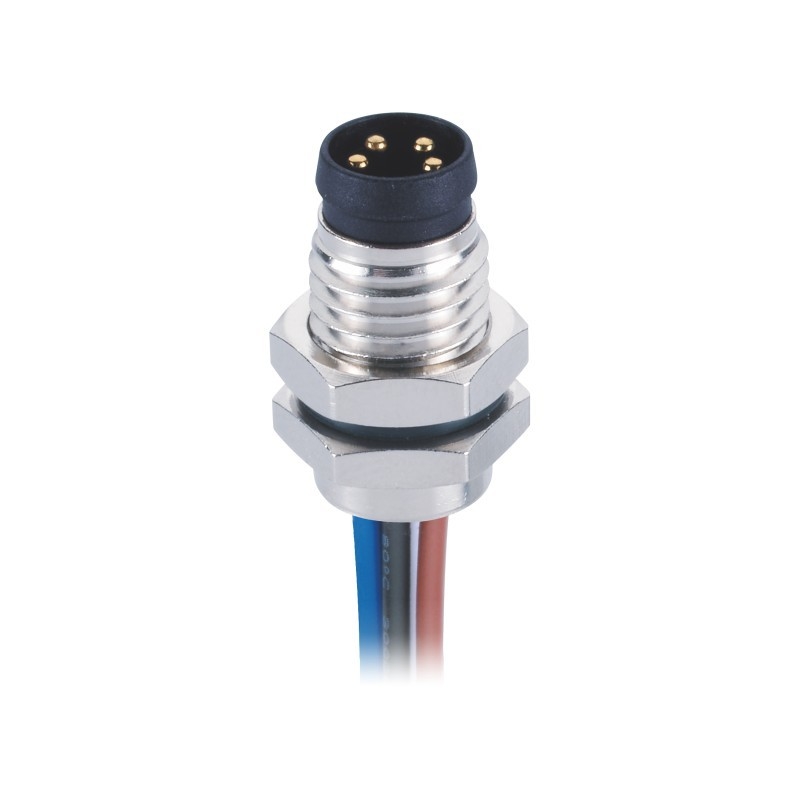

Panel M8 Circular Connector 4Pin A Code Male Front Rear Mount With 0.5M Single Wires

Panel M8 Circular Connector 4Pin A Code Male Front Rear Mount With 0.5M Single Wires

  • Panel M8 Circular Connector 4Pin A Code Male Front Rear Mount With 0.5M Single Wires
  • Panel M8 Circular Connector 4Pin A Code Male Front Rear Mount With 0.5M Single Wires
Panel M8 Circular Connector 4Pin A Code Male Front Rear Mount With 0.5M Single Wires
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MB04P1LSAB24W05
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: M8 Male Front Panel Mount Connector Contacts No.: 4Pin
Rated Current: 3A Rated Voltage: 60V
Cable Length: 0.5M Reference Standard: IEC 61076-2-104
Protection Degree: IP67, IP68 Warranty: 1 Year
High Light:

Panel M8 Circular Connector

,

Single Wires M8 Circular Connector

,

A Code M8 4 Pin Connector

M8 A Code Male Front Rear Mount Panel Circular Connector 4Pin With 0.5M Single Wires

Connector Technical Data
Contacts No. 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
Reference standard IEC 61076-2-104
Locking system M8×1.0 screw
Tightening torque Recommend: 0.3Nm, Max: 0.6Nm
Termination Soldering
Wire gauge 0.25²(AWG 24)
Rated temperature -25℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Contact carrier TPU+GF
Screw nut Brass, CNC, Nickel-plated
Contact Brass
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67, IP68
Pollution degree 3


Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice. Our connectors can also be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.





CABLEFORCE Products Features

● 3Pin, 4Pin, 5Pin, 6Pin, 8Pin aie available
● RoHS, CE compliant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements
● We can also quote on a huge selection of products that are not normally stocked
● High quality gold-plated solid phosphor bronze contacts, ≥600 times mating life
● Anti-vibration locking screw design
● Support samples retail and bulk orders





FAQ



What is Panel Mount connector?

Panel Mount is a mechanical feature or features built into the design of a connector half. It allows the connector to be secured to an equipment panel, external case or enclosure. Often (but not always), connectors fitted with panel mount features will be cable connectors.



● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.



● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.



● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.



● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
