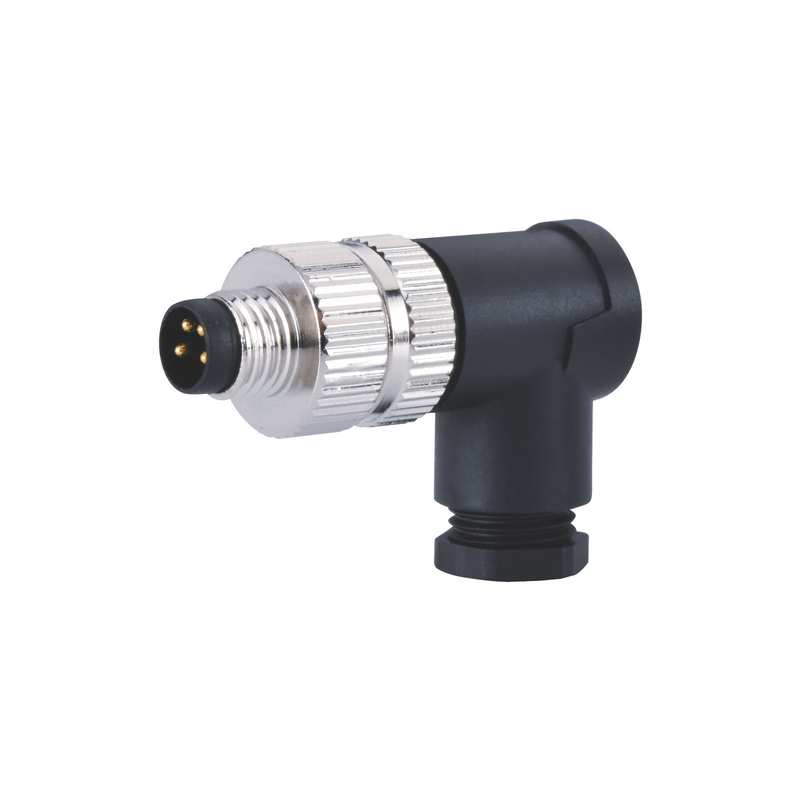

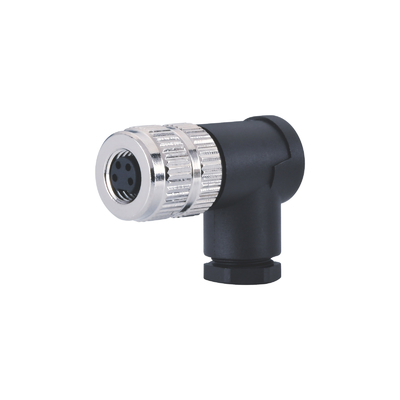

Right Angled Field Wireable M8 Connector PA66 GF Contact Carrier IP67 Rated

Right Angled Field Wireable M8 Connector PA66 GF Contact Carrier IP67 Rated

  • Right Angled Field Wireable M8 Connector PA66 GF Contact Carrier IP67 Rated
  • Right Angled Field Wireable M8 Connector PA66 GF Contact Carrier IP67 Rated
Right Angled Field Wireable M8 Connector PA66 GF Contact Carrier IP67 Rated
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: Field Wireable Right Angled Connector Contacts No.: 3Pin, 4Pin
Over-molding: PA66+GF Contact Carrier: PA66+GF
Wire Gauge: 0.25~0.34mm²(AWG 24~22) Reference Standard: IEC 61076-2-104
Protection Degree: IP67 Warranty: 1 Year
High Light:

Right Angled Field Wireable M8 Connector

,

IP67 Field Wireable M8 Connector

,

PA66 GF M8 Field Wireable Connector

M8 A Code Male Female Circular Field Wireable Right Angled Connector 3Pin 4Pin

Connector Technical Data
Contacts No. 3Pin, 4Pin
Referance standard IEC 61076-2-104
Rated current 3A
Rated voltage 60V
Impulse voltage 1500V
Tightening torque Recommend: 0.2Nm, Max: 0.4Nm, Wire screw: 0.1Nm, Cable gland:0.3~0.8Nm
Termination Screw fixing
Wire gauge 0.25²~0.34²(AWG 24~22)
Rated temperature Flexible: -25℃ ~ +80℃
Over-molding PA66+GF
Contact carrier PA66+GF
Screw nut Brass, CNC, Nickel-plated
Contact Brass; Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, NBR
Protection degree IP67
Pollution degree 3


Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice.




CABLEFORCE Products Features


● 3Pin, 4Pin aie available


FAQ

● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.

● What does the coding means on M8 connector?
This coding prevents incorrect mating on products.

● What is a Field Wireable connector?
Field wireable connectors and T-couplers are used to build custom patch cables, provide a quick-disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port. Axial, right-angle and T-connectors are available in a variety of sizes and terminal pole configurations.

● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.

● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.

● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.

● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
Right Angled Field Wireable M8 Connector PA66 GF Contact Carrier IP67 Rated 0Right Angled Field Wireable M8 Connector PA66 GF Contact Carrier IP67 Rated 1
