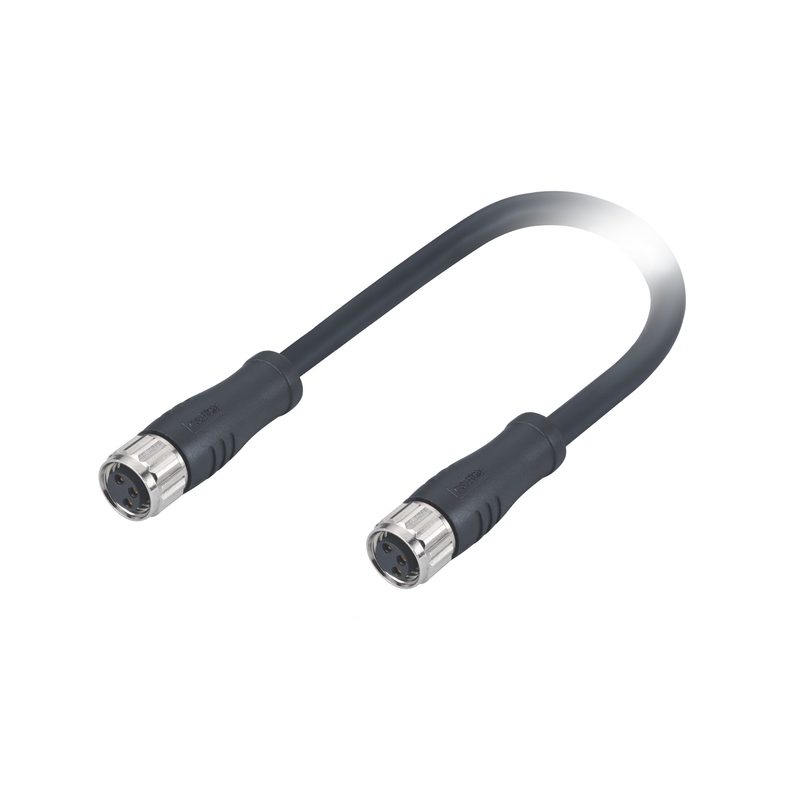

3Pin M8 Circular Connector Female To Female Shielded M8 Extension Cable

3Pin M8 Circular Connector Female To Female Shielded M8 Extension Cable

  • 3Pin M8 Circular Connector Female To Female Shielded M8 Extension Cable
3Pin M8 Circular Connector Female To Female Shielded M8 Extension Cable
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MB03C4LSAB24CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Type: Female To Female Connector Key Coding: A Code
Contacts No.: 3Pin Cable Material: PVC
Length: 1M Wire Gauge: 0.25²(AWG 24)
Contact: Phosphor Bronze Warranty: 1 Year
High Light:

3Pin M8 Circular Connector

,

UL M8 Circular Connector

,

Shielded M8 Extension Cable

M8 A Code Female To Female Circular Connector 3Pin Molded With Shielded Cable

Connector Technical Data
Contacts No. 3Pin
Referance standard IEC 61076-2-104
Rated current 3A
Rated voltage 60V
Impulse voltage 1500V
Wire gauge 0.25²(AWG 24)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Over-molding TPU
Contact carrier TPU+GF
Screw nut Brass, CNC, Nickel-plated
Contact Brass; Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon O-ring
Protection degree IP67, IP68
Pollution degree 3


Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. These connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice. Our connectors can also be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.




CABLEFORCE Products Features

● Optional contacts number: 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
● Authentication: RoHS, CE
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements

● Anti-vibration locking screw design

● Customized cable length, with PUR, PVC, LSZH, Ethernet cable options




FAQ

● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.



● What is the Applications of the M8 connector?

Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves.


● What is the difference between M8 and M12?
Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connections. The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
