Dongguan Cableforce Electronics Co., Ltd
Sales & Support:

|
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |
| Model Number: | MB03C5LSAB24CK10 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |

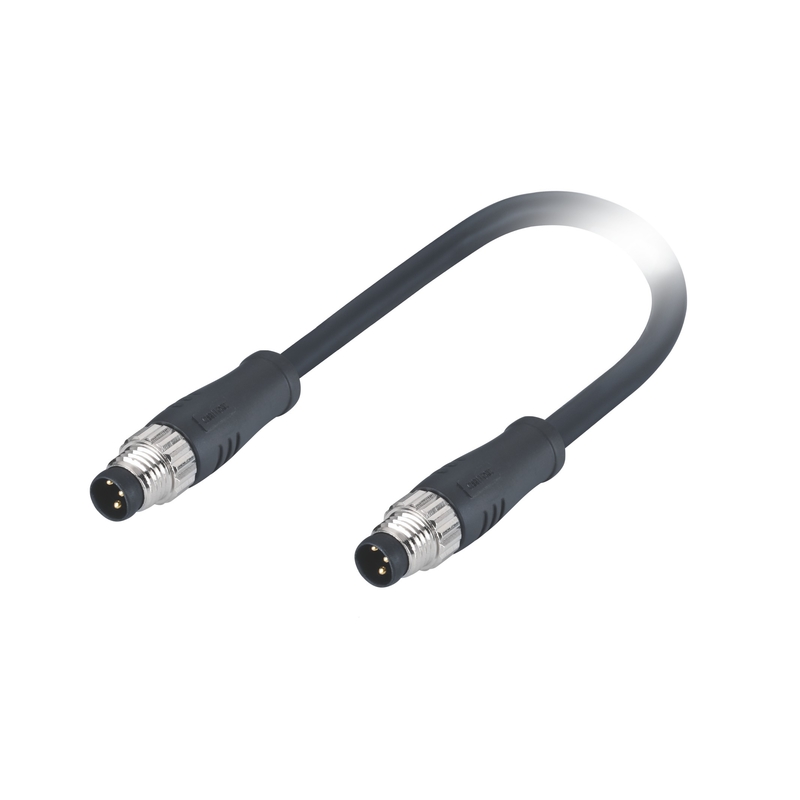

| Type: | Male To Male Connector | Key Coding: | A Code |
|---|---|---|---|
| Contacts No.: | 3Pin | Length: | 1M |
| Cable Material: | PVC | Wire Gauge: | 0.25²(AWG 24) |
| Screw Nut: | Brass, CNC, Nickel-plated | Contact: | Brass |
| High Light: | Male Male M8 Circular Connector,1M Cable M8 Circular Connector,PVC Unshielded M8 3 Pin Cable |
||
| Connector Technical Data | |||||
| Contacts No. | 3Pin | ||||
| Referance standard | IEC 61076-2-104 | ||||
| Rated current | 3A | ||||
| Rated voltage | 60V | ||||
| Impulse voltage | 1500V | ||||
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ | ||||
| Insulation resistance | ≥100MΩ | ||||
| Contact resistance | ≤5mΩ | ||||
| Over-molding | TPU | ||||
| Contact carrier | TPU+GF | ||||
| Screw nut | Brass, CNC, Nickel-plated | ||||
| Contact | Brass | ||||
| Contacts plating | Au(Gold) | ||||
| O-ring | FKM, Silicon O-ring | ||||
| Protection degree | IP67, IP68 | ||||
FAQ
● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.
● What is the Applications of the M8 connector?
Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves.
● What is the difference between M8 and M12?
Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connections. The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
Contact Person: Marco Yang
Tel: 13509009528
