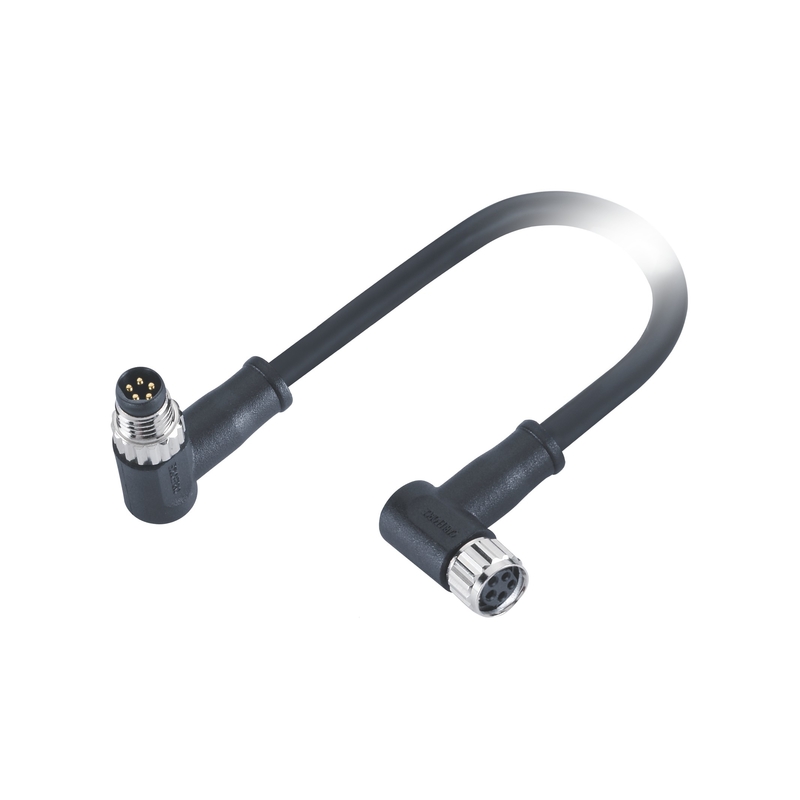

Name: B Code M8 5 Pin Cable Right Angled 5Pin Molded Male To Female Cable
Brand: CABLEFORCE
SKU: MB05C3RSAB24CK10
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (175 reviews)

Home Products M8 Circular Connector

B Code M8 5 Pin Cable Right Angled 5Pin Molded Male To Female Cable

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MB05C3RSAB24CK10

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Type:	Male To Female Right Angled Connector	Contacts No.:	5Pin
Key Coding:	B Code	Length:	1M
Cable Material:	PVC	Insulation Resistance:	≥100MΩ
Contact Resistance:	≤5mΩ	Screw Nut:	Brass, CNC, Nickel-plated
High Light:	B Code M8 5 Pin Cable , Right Angled M8 5 Pin Cable , M8 Male To Female Cable

M8 B Code Male To Female Right Angled Circular Connector 5Pin Molded With 1M PVC Cable

Connector Technical Data
Contacts No.	5Pin
Referance standard	IEC 61076-2-104
Rated current	3A
Rated voltage	60V
Impulse voltage	1500V
Wire gauge	0.25²(AWG 24)
Rated temperature	Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Over-molding	TPU
Contact carrier	TPU+GF
Contact	Brass
O-ring	FKM, Silicon O-ring
Protection degree	IP67, IP68

Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice. M8 connectors can be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.

CABLEFORCE Products Features

● Optional key coding: A Code, B Code, D Code, X Code, C Code, S Code, T Code, L Code, K Code, Y Code, P Code, H Code
● Optional contacts number: 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
● Authentication: RoHS, CE
● Rated temperature: Flexible: -25 ~ +80℃, Static: -40 ~ +80℃
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements

FAQ

● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.

● Can i have a sample for test?

Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.

● Are you a factory? where is your factory?

Yes, we are a factory, we located in Dongguan, Guangdong, China.
B Code M8 5 Pin Cable Right Angled 5Pin Molded Male To Female Cable 0
