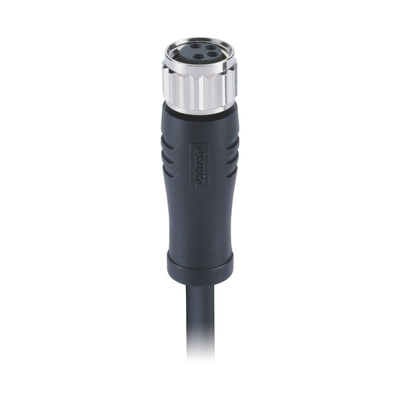

1M PVC AWG 24 Cable M8 Circular Connector A Code M8 4 Pin Female Connector

1M PVC AWG 24 Cable M8 Circular Connector A Code M8 4 Pin Female Connector

  • 1M PVC AWG 24 Cable M8 Circular Connector A Code M8 4 Pin Female Connector
1M PVC AWG 24 Cable M8 Circular Connector A Code M8 4 Pin Female Connector
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MB04C2LSAB24CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Type: Female Connector Contacts No.: 4Pin
Reference Standard: IEC 61076-2-104 Rated Current: 3A
Rated Voltage: 60V Wire Gauge: 0.25mm²(AWG 24)
Over-molding: TPU Contact Carrier: TPU+GF
High Light:

AWG 24 Cable M8 Circular Connector

,

PVC Cable M8 Circular Connector

,

A Code M8 4 Pin Female Connector

M8 A Code Female Circular Connector 4Pin Molded With 1M PVC AWG 24 Cable​

Connector Technical Data
Contacts No. 4Pin
Referance standard IEC 61076-2-104
Rated current 3A
Rated voltage 60V
Impulse voltage 1500V
Locking system M8×1.0 screw
Tightening torque Recommend: 0.2Nm, Max: 0.4Nm
Termination Soldering
Wire gauge 0.25²(AWG 24)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Over-molding TPU
Contact carrier TPU+GF
Screw nut Brass, CNC, Nickel-plated
Contact Brass
Contacts plating Au(Gold)
O-ring FKM, Silicon O-ring
Protection degree IP67, IP68
Pollution degree 3


Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice.





CABLEFORCE Products Features


● 3Pin, 4Pin, 5Pin, 6Pin, 8Pin aie available
 RoHS, CE compliant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements

● We can also quote on a huge selection of products that are not normally stocked

High quality gold-plated solid phosphor bronze contacts, ≥600 times mating life

Anti-vibration locking screw design

Support samples retail and bulk orders





FAQ



What is M8 connector?

The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.



What is the difference between M8 and M12?

Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connectionsThe M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
