L Code M12 Panel Mount Connector Female Front Side Fastening With Pcb Contacts Pg9

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MC05P2LPABP9

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Connector Type:	M12 5pin Right Angled PCB Panel Connector	Termination:	PCB Dip Soldering
Panel Locking Side:	Front Side Fastening The Nut	Insert:	Phosphor Bronze
Reference Standard:	IEC 61076-2-111	Rated Current:	4A
Rated Voltage:	60V	Housing/ Outer Shell:	Brass With Nickel Plasting
Poles:	5 Pin	Cable Flamability:	VW-1
Pollution Degree:	IP67,IP68	Temperature Rating:	-40°C ~ + 105°C
Compliance:	RoHS Compliant	Sealing:	Epoxy Resin, O-Ring
High Light:	l code m12 panel mount connector , female m12 panel mount connector

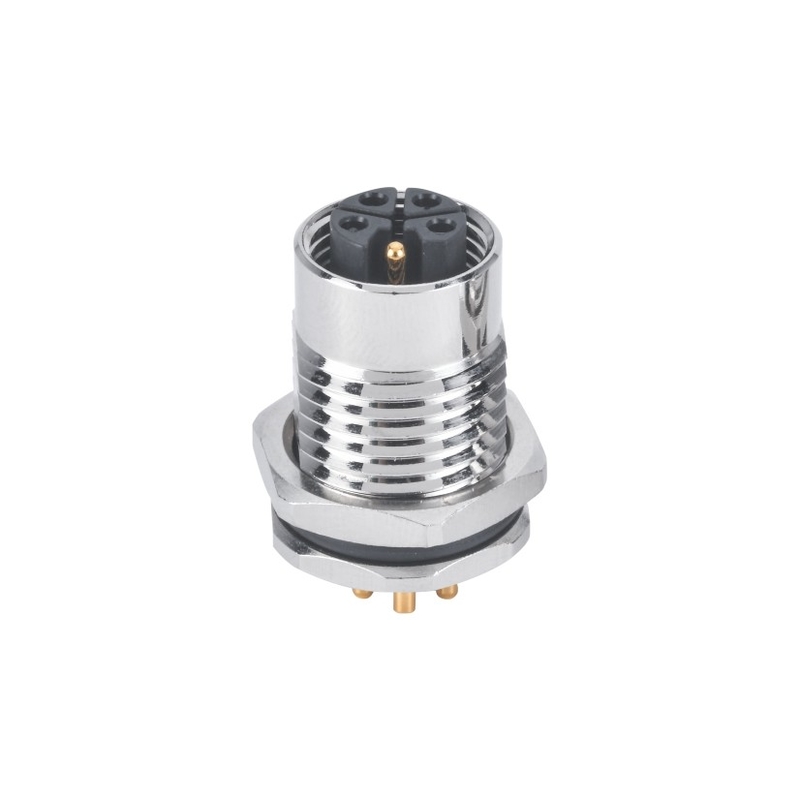

Panel Receptacle M12 L Code Connector Female Front Side Fastening With PCB Contacts, PG9

Connector Technical Data
Contacts No.	MC05P2LPABP9
Rated current	4A
Rated voltage	63V DC
Impulse voltage	1500V
Locking system	M12*1.0 Screw
Termination	PCB Dip Soldering
Tightening Torque	0.6Nm
Rated temperature	Flexible: -25℃ ~ +80℃;Static:-40℃ ~ +105℃
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Contact	Phosphor bronze
Contacts plating	Au(Gold)
O Ring	FKM,Silicon
Pollution Degree	3

Description of M12 L Code Panel Connector

CABLEFORCE has introduced the M12 L-Code 63V/16A DC power supply PROFINET compliant connector which provides high power current ratings combined with IP67 protection degree for application in harsh environmental conditions. Its compact design and high power transmission make it a cost-effective solution for operations that need a reliable, installation space saving power connector.

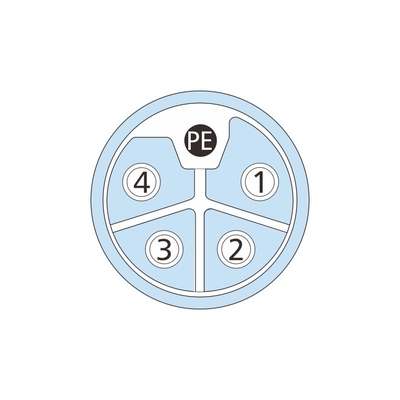

● L-Code, 5Pin (4+FE)

● Rated: 63V DC/ 12A

● Gold-plated crimp contacts

● PVC, PUR cable with custom specification service

● Panel receptacle with either 14AWG prewired or PCB solder contacts

● Protection degree IP67/IP68

CABLEFORCE Products Features

● Tailor made material to meet various application conditions

● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.

Application Of M12 Circular Connector
Our products are widely used in LED lighting, outdoor soft strip display, electrical equipment, automated robots, electric bicycles, ships, electric vehicles, etc.

LED lighting
Ships
outdoor soft strip display
automated robots
electric bicycles
electrical equipment
electric vehicles

FAQ

● Do you provide Customized service?
Yes, Cableforce provide Customized service and Technical Drawings to you to confirm whether meet your requirments before produce .And our enginers have more than 10 years experience for waterproof connector industry.
● How about CABLEFORCE Product Application?
Our products are widely used in Factory Automation,Rail Transit ,Boat ,PLC,Motor and Sensor.
● What is CABLEFORCE Mission?
Globally supplying customers with excellent quality cable and connectors at affordable price,to create better life for our staff, shareholders,suppliers,and related parties.
