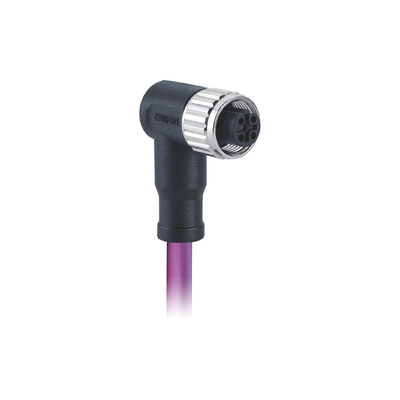

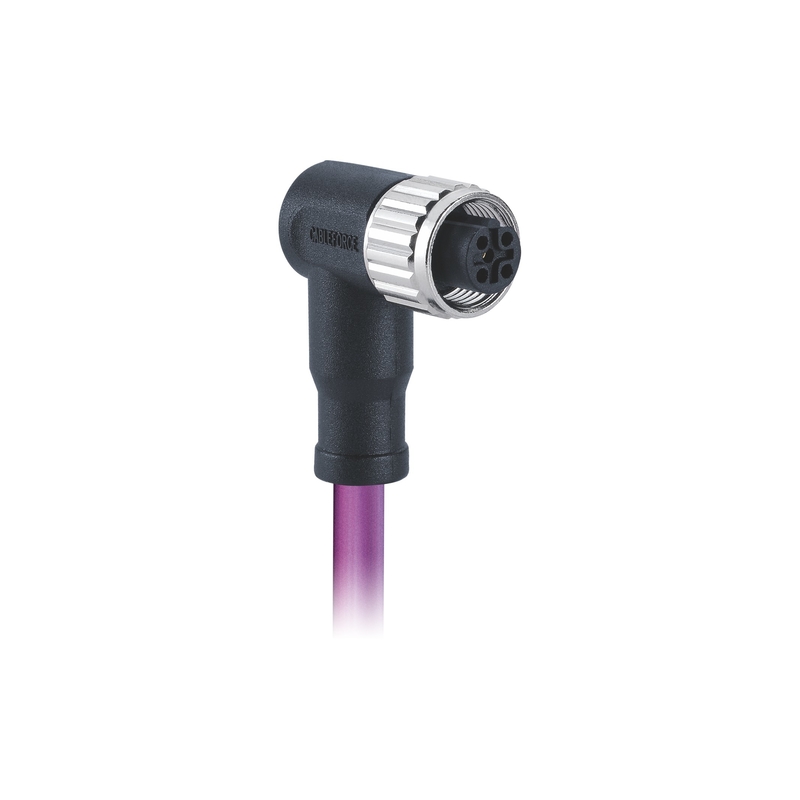

Name: Profibus Cable M12 5 Pin B Coded Connector Female Elbow Molded
Brand: CABLEFORCE
SKU: MC05C2RSBSB22RV05-PFB
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (180 reviews)

Home Products M12 Circular Connector

Profibus Cable M12 5 Pin B Coded Connector Female Elbow Molded

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MC05C2RSBSB22RV05-PFB

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Reference Standard:	IEC 61076-2-101	Protection Degree:	4A
Wire Gauge:	60V	Impulse Voltage:	1500V
Gender:	Female	Contacts Poles:	5 Pin
Cable Specification:	2Px22AWG Profibus Cable	Coding:	B Coding
Over-molding:	TPU	Shielded Type:	360°EMI-shielded
Locking System:	M12 × 1.0 Screw	Contact:	Phosphor Bronze
Contact Carrier:	TPU+GF
High Light:	m12 5 pin b coded , m12 5 pin b coded female , profibus cable m12 b coded connector

Profibus Cable M12 B Code Connector 5 Pin Female Elbow Molded 0.5M PUR Shielded Cable

Connector Technical Data
Reference Standard	IEC 61076-2-101
Contact No	5 pin
Coding	B Coding
Insulation Resistance	≥100MΩ
Contact Resistance	≤5mΩ
Rated Voltage	60V
Rated Current	4A
Cable Specification	2Px22AWG Profibus Cable
Type	M12 B Coding Connector
Contact Carrier	TPU+GF
Termination	Soldering
Screw Nut	Brass,CNC,Nickel-plated
Contact	Phosphor bronze
Pollution Degree	3
Protection Degree	IP67,IP68
Rated Temperature	Flexible:-25℃~+80℃ /,Static:-40℃~+80℃
Cable Length	1M,2M,5M,10M,20M or Customized

Description

The M12 metric size B-Coding connectors, it is commonly used connector in the Fieldbus cabling system, such as PROFIBUS cabling. M12 B-Coding connector designed with B specified single keyway coding structure which differentiates itself from A-, C-, D-, S-, T-, K-, L-Coding.
● Cable plugs, panel receptacles are available
● Cable specification base on customer requesting
● Degree of protection IP67
● 5 poles per connector
● Operating voltage 60V;

● Current range: 4A
● 360° EMI-Shielded
● Anti-vibration locking screw design

Cableforce Products Catagory For your Reference

M5-Circular Cable Connectors
M8-Circular Cable Connectors
M12-Circular Molded Cable
M12-Circular Panel Connectors
M12-Field Wireable Connectors
M12-T-Adapter & Y-Splitter
M16-Circular Connectors
7/8''Mini-change Circular Cable Connectors
I/O-Industrial Data Cable Connectors
Rail Transit Vehicle Cables
Plastic Optical Fiber Cable
Cable Assembly and Wire Harness
NMEA2000-Boat Cable Connectors
Regular Use Bulk Cable

FAQ

● How many type of Contacts Version?

There are 5 kinds of contacts version about Cableforce connector ,Crimping Type,Solder Type,Screwing Type,PCB Contacts ,IDC.

● What's Quick Detail Of M12 Circular Connector?

1) Colours:Black,blue,white and yellow color supported

2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional

3) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

4) Contact pin: Screw terminal and soldering terminal available

5) Cable length:Different cable length could be customized

6) Advanced structure: Self-locking

● Where are your client come from?

We have lots of clients from many Countries and regions, Our main clients come from America, Europe and Australia.Cableforce's Mission :Globally supplying customers with excellent quality cable and connectors at afforable price.At Cableforce,you will experience our value-add products and services.With our systems ,our process,our people and our extensive vendor base affords us solutions to meet your requirements.
