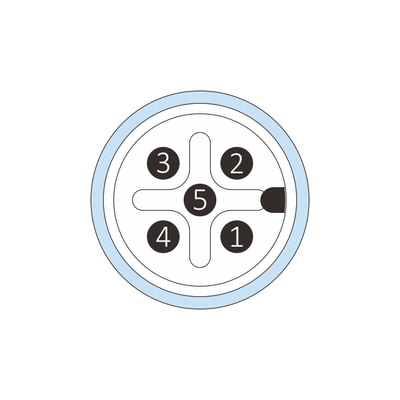

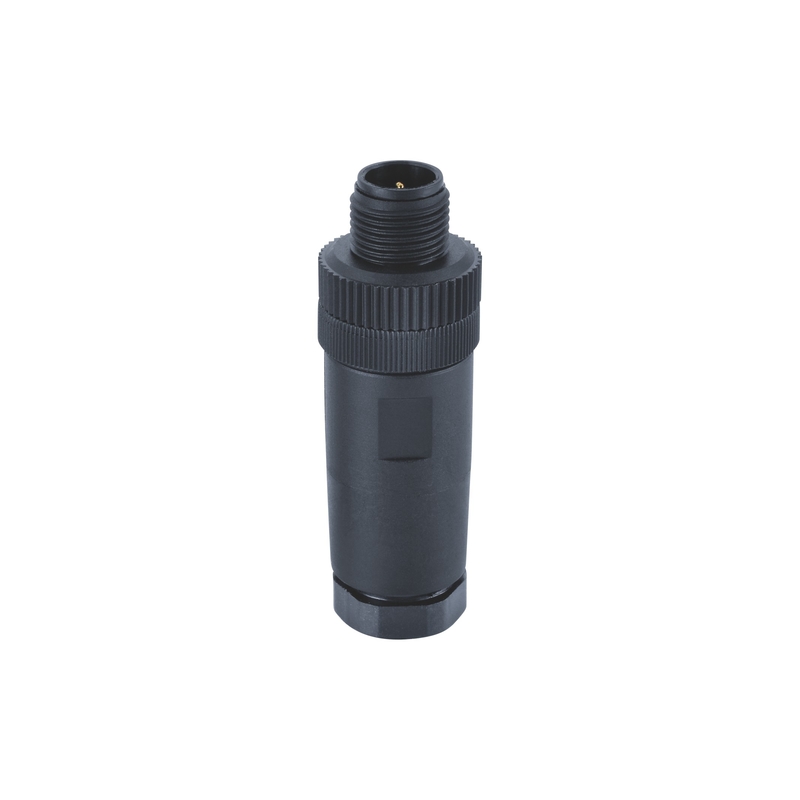

Field Installation M12 Male Connector 5 Pin A Code Plastic Screw PG7 PG9 IP67 IP68

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.

● Cable plugs, field installable plugs, panel receptacles, T-connectors, Y-Splitters are available
● Cable length base on customer requesting
● 2, 3, 4, 5, 6, 8, 12, 17 poles are available
● Operating voltage 250V/ 60V/ 30V; Current range: 4A, 2A, 1.5A

● IP67 IP68 IP69K and UL approvals
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.

FAQ

● What is the Application of M12 Connector?

• Senor and Actuator
• Factory automation
• Industrial safety control
• Logistic and packaging
• Railway transit
• Industrial Ethernet
• Vision Control

● How many times of Cable Moving Application Drag Chain can be chose?

• 5 Million times
• 10 Million times
• 20 Million times

●What's Cableforce Core Benefits can provide to customers?

• Free Technical Consultation
• Samples & Prototyping
• Free Technical Drawings
• Timeline Planning
• Quality Control & 100% Testing 100%
• Safe and reliable system that is easy to install
• Manufactured, assembled and tested in our facility
• Guaranteed for life
• CE,IP67,UL Certified
• Excellent weathering,UV and temperature resistance
• High impact strength even
• Ingress protection up to IP68
• RoHS and REACH compliant
• Free of halogen, LSZH
• Excellent chemical resistance: to fuels, oils, alkalies, weak acids.





M12 Connector.pdf
