| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |
| Model Number: | MC05A2LSAP |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Reference Standard: | IEC 61076-2-101 | Gender: | Female |
|---|---|---|---|
| Keywords: | M12 A Code Connector | Coding: | A Coding |
| Insulation Resistance: | ≥100MΩ | Contact Resistance: | ≤5MΩ |
| Rated Current: | 4A | Rated Voltage: | 60V |
| Cable Outlet: | PG7 (4~6mm) , PG9 (6~8mm) | Screw Nut: | PA66+GF |
| Contacts Plating: | AU (Gold) | Connector Body: | PA66+GF |
| Contact: | Phosphor Bronze | O Ring: | FKM,NBR |
| Pollution Degree: | 3 | Protection Degree: | IP67,IP68 |
| High Light: | PG7 M12 5 Pin Connector,PG9 M12 5 Pin Connector,M12 Circular Connector with Plastic Screw |
||
|
Connector Technical Data
|
|||||||||
| Model Number | MC05A2LSAP | ||||||||
| Contact No | 5 pin | ||||||||
|
Insulation Resistance
|
≥100MΩ
|
||||||||
|
Contact Resistance
|
≤5mΩ
|
||||||||
| Rated Current | 4A | ||||||||
| Rated Voltage | 60V | ||||||||
| Cable Outlet | PG7 (4~6mm) , PG9 (6~8mm) | ||||||||
| Rated Temperature | -25℃~+90℃,-40℃~+125℃ | ||||||||
| Locking System | M12 ×1.0 Screw | ||||||||
| Tightening Torque | 0.4Nm | ||||||||
| Termination | Soldering | ||||||||
|
Wire Gauge
|
0.34mm²(AWG 22)
|
||||||||
|
Type
|

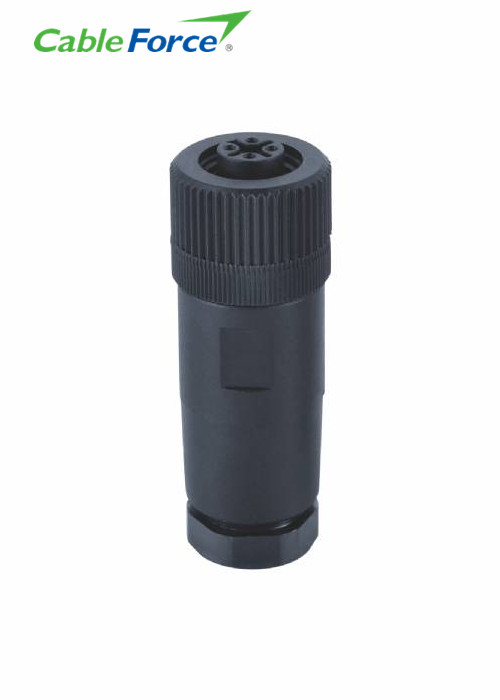

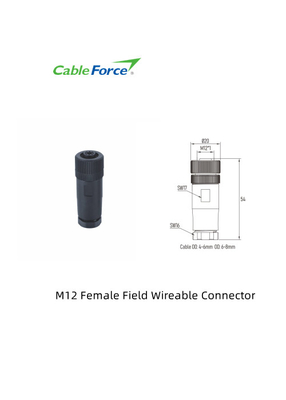

M12 Field Wireable Cable Connector Plastic Screw
|
||||||||
| Contace Body | PA66+GF | ||||||||
|
Contact Carrier
|
PA66+GF
|
||||||||
|
Screw Nut
|
PA66+GF | ||||||||
|
Contact
|
Phosphor bronze
|
||||||||
| Contacts Plating | Au (Gold) | ||||||||
|
Pollution Degree
|
3 | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
Cableforce's M12 series family inclode M12 Field wireable /installable connectors which permit high flexibility for wiring cables in the field. It enables quick assembly and disassembly of often differing cable lengths. The wire connection normally use soldering termination, crimping and screw termination, Cableforce offers both Plastic Shell and Metallic Shell with EMC shielding function.And this kind of M12 Connector 3,4,5,CAN/DVN,8,12Pins are available.
CABLEFORCE Products Features
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● IP67 IP68 IP69K and UL approvals
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.
FAQ
● What is the Application of M12 Connector?
● How many times of Cable Moving Application Drag Chain can be chose?
●What's Cableforce Core Benefits can provide to customers?
M12 Connector.pdf
