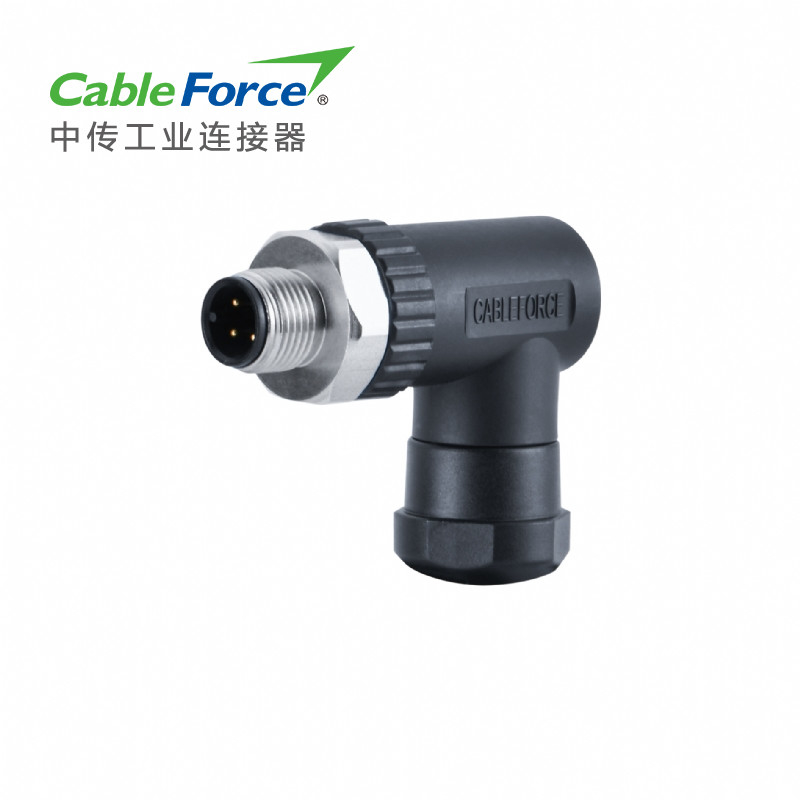

Field Wireable A Code M12 Circular Connector EMI Shielded Screw fixing PG7 Sensor

Field Wireable A Code M12 Circular Connector EMI Shielded Screw fixing PG7 Sensor

Field Wireable A Code M12 Circular Connector EMI Shielded Screw fixing PG7 Sensor
Field Wireable A Code M12 Circular Connector EMI Shielded Screw fixing PG7 Sensor
Field Wireable A Code M12 Circular Connector EMI Shielded Screw fixing PG7 Sensor
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, IP67, IP69K
Model Number: MC04A1RWAB-P7
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 04 Pin Gender: Male
Termination: Screw Fixing Tightening Torque: 0.4Nm
Wire Gauge: 0.34 M㎡ (AWG 22) Connector Body: PA66+GF
Contact: Brass Contacts Plating: AU (Gold)
High Light:

Screw Fixing M12 Circular Connector

,

PG7 Sensor M12 Circular Connector

,

EMI Shielded M12 Male Connector

M12 Male A Code Connector Field Wireable EMI Shielded Screw Temination PG7 Sensor

Connector Technical Data
Model Number
 MC04A1RWAB-P7
Connectors No.
4 Pin
Rated Current
4A
Rated Voltage
250V
Impulse Voltage
2500V
Cable outlet PG7
Wire gauge AWG 22
Insulation resistance ≥100MΩ
Contact resistence ≤5MΩ
Termination Screw Fixing
Contact plating Au (Gold)
Screw nut Brass, CNC, Nickled plated

Description
A right angle cord is a cord with a plug that connects the cord at a 90-degree angle from the plug. This type of cord connector takes up a narrower space than standard plugs and guides the cord to run along the wall or device.Right angled ,Straight connector are available. In Cableforce,Customers can select in specific requirements.



Cableforce Products Certificates
  • M8 CE Certificate, M8 IP67 Certificate
  • M12 CE Certificate, M12 IP67, IP69K Certificate
  • M12 Design Patent

  • UL File No. E516028 for both M8 and M12 cable connectors

  • ISO 9001: 2015 Certified

 FAQ

●Why is EMI Shielding Important?
Electromagnetic interference (EMI) can disrupt electronic devices, equipment, and systems that are used in critical applications. Examples include medical, military, and aerospace electronics; mass transit systems; industrial touch screens; and navigation and vehicular control systems - just to name a few.The causes of electromagnetic interference are numerous, and include both man-made and natural sources. The results can range from temporary disturbances and data losses to system failure and even loss of life.

●Is stainless steel good for EMI?
For the shielding materials should have high conductance. Such as steel, copper, aluminum, stainless steel, etc., are the most common materials used for EMI shielding.

Field Wireable A Code M12 Circular Connector EMI Shielded Screw fixing PG7 Sensor 0
Field Wireable A Code M12 Circular Connector EMI Shielded Screw fixing PG7 Sensor 1
M12 Connector.pdf
