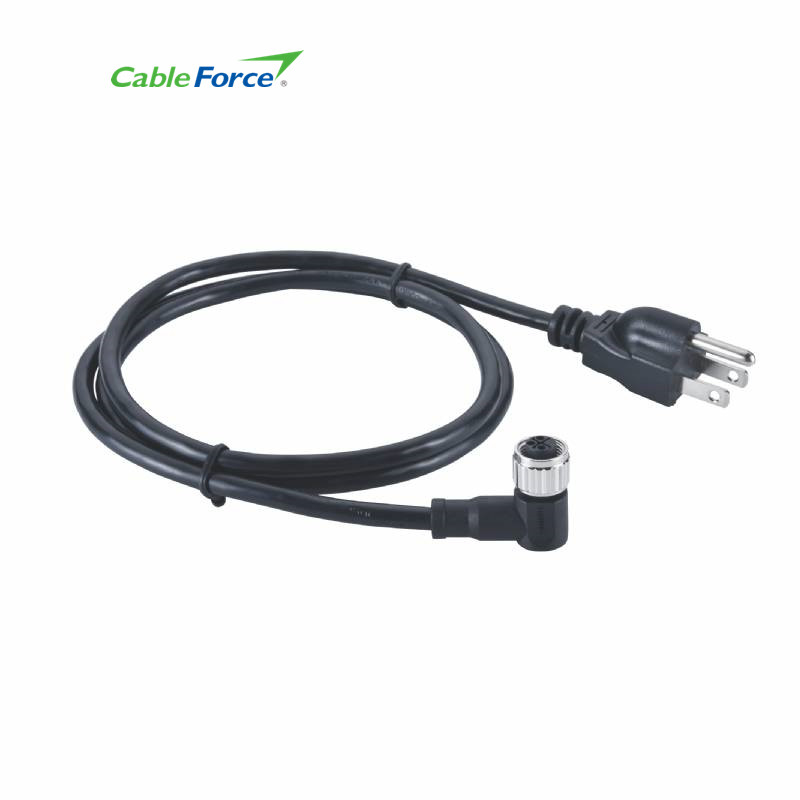

M12 S Code Right Angled 3 Pin Connector To NEMA 5-15P Molded 14AWG Cable

M12 S Code Right Angled 3 Pin Connector To NEMA 5-15P Molded 14AWG Cable

M12 S Code Right Angled 3 Pin Connector To NEMA 5-15P Molded 14AWG Cable

M12 S Code Right Angled 3 Pin Connector To NEMA 5-15P Molded 14AWG Cable

M12 S Code Right Angled 3 Pin Connector To NEMA 5-15P Molded 14AWG Cable

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MC03C2RCSB14RK18-NEMA5-15P

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Connector Gender:	Female Connector	Reference Standard:	IEC 61076 2 111
Keyword:	M12 S-Code	Cable Length:	Customized
Contact:	Phosphor Bronze	Contacts Poles:	2 + PE (3Pin)
Termination:	Crimping	Cable Specification:	AWG 24
High Light:	Phosphor Bronze 3 Pin Connector , M12 S Code 3 Pin Connector , 14AWG Cable M12 Circular Connector

M12 S Code Female Right Angled 3 Pin Connector To NEMA 5-15P USA Power Plug Molded 14AWG Cable

Connector Technical Data
Model Number	MC03C2RCSB14RK18-NEMA5-15P
Brand Name	Cableforce
Contact Carrier	PA66+GF
Rated Voltage	630V AC
Impulse Voltage	5000V
Wire Gauge	1.5mm²(AWG 14)
Application	Sensors
O Ring	FKM,Silicon
Insulation Resistance	≥100MΩ
Contact Resistance	≤5mΩ
Pollution degree	3
Protection Degree	IP67,IP68

Description

M12 S-Coding 3Pin(2+PE) Right angled female to NEMA 5-15P USA power plug Cable Connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-poles, compliant with IEC 61076-2-111 and mainly designed for servo motor's power transmission.

Feature Of M12 Circular Connector

1.Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors

4. 90 degree right angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
5. Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
6. Connector Screw/Nut:Plastic/Brass/Stainless steel
7. A-coding/B-coing/D-coding/X-coding/S-coding/K-coding

FAQ

●What is difference between PUR and PVC cable

If you have a wet environment then PVC tends to be the most suitable cable as it has good resistance to water and is therefore the preferred cable for food-processing applications. In machining applications PUR becomes the cable to use owing to its better resistance to cutting and hydraulic oils.

● What is Advantage Of Waterproof Connector

The waterproof connector is simply disassembled and assembled by locking the tail nut, so that the connector and the cable form a perfect fit, not easy to fall off, and its waterproof effect can achieve to IP67.

M12 S Code Right Angled 3 Pin Connector To NEMA 5-15P Molded 14AWG Cable 0

M12 Cable.pdf
