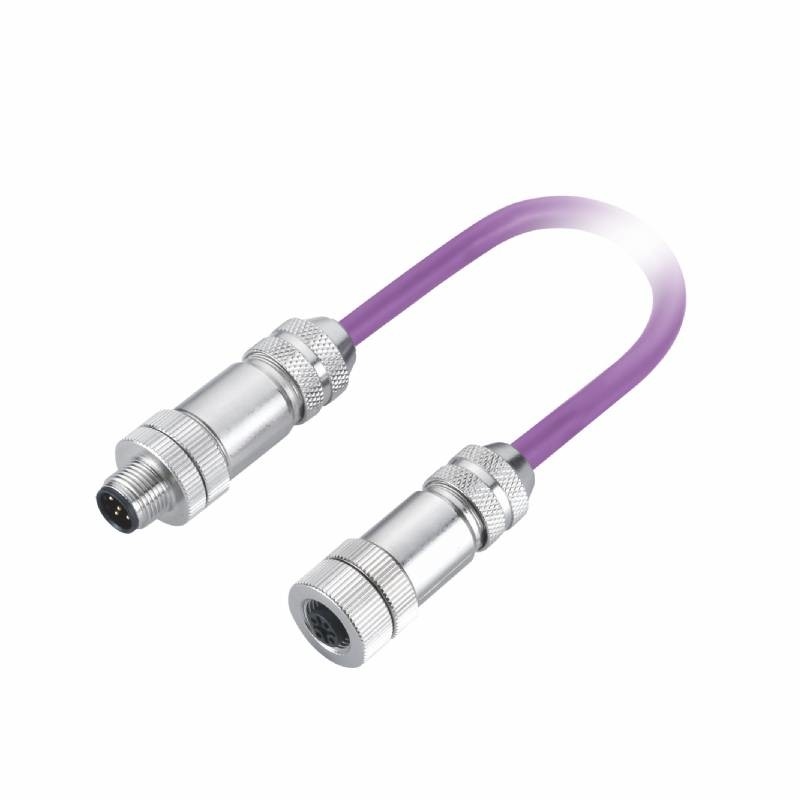

M12 B Code Profibus Cable Connector Wiring Field Installable IP67 EMI Shielded

M12 B Code Profibus Cable Connector Wiring Field Installable IP67 EMI Shielded

M12 B Code Profibus Cable Connector Wiring Field Installable IP67 EMI Shielded
M12 B Code Profibus Cable Connector Wiring Field Installable IP67 EMI Shielded
M12 B Code Profibus Cable Connector Wiring Field Installable IP67 EMI Shielded
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC05A3LWBSB22RV03-PFB
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Keyword: M12 B Code Profibus Cable Connector Coding: B Coding
Reference Standard: IEC 61076-2-101 Rated Voltage: 60 V
Rated Current: 4 A Screw Nut: Brass,CNC,nickel-plated
Gender: Male To Female Character Istic Impedance: 150Ω ±15
Application: Profibus DP Over-molding: TPU
High Light:

M12 Profibus Cable Connector

,

EMI Shielded Profibus Cable Connector

,

IP67 Profibus M12 Circular Connector

M12 Connector B Code Profibus Wiring Field Installable Connector IP67 EMI Shielded

Connector Technical Data
Model Number MC05A3LWBSB22RV03-PFB
Contact No 5 pin
Insulation Resistance
≥100MΩ
Contact Resistance
≤10mΩ
Characteristic Impedance
150Ω ±15
Locking System M12 ×1.0 screw
Wire Gauge
0.34mm²(AWG 22)
Type
M12 B Code Field Installable Cable Connector
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel-plated
Contact
Brass(Male), Phosphor bronze(Female)
Pollution Degree
3
Protection Degree
IP67,IP68

Description

CABLEFORCE developed the cable and connectors for application of Profibus-DP (Decentralized Periphery) and Profibus-PA ( Process Automation) to meet Guideline of PROFIBUS Cabling and Interconnection technology. The Profibus interconnection products portfolio mainly included RS-485 series connectors: M12 A-Code 5Pin,M12 B-Code 5Pin , Sub-D 9Pin , Mini Change connectors and the match able pair twisted cables (18AWG≈0.9mm2, 22AWG≈0.34mm2).



CABLEFORCE Products Features



● 360° shielded or non-shielded versions are available
● TPU over molded and PA+GF or metal shell
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant

● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.

● IP67 IP68 IP69K and UL approvals



FAQ



What is the difference between Modbus and PROFIBUS?

Modbus supports up to 249 slaves and 1 master. Profibus supports up to 124 nodes, which can be masters or slaves. The transmission medium further restricts this. Modbus can be used on RS232, RS422 and RS485.



How do you test a Profibus connector?

Probably the best way to physically check a Profibus cable is to use the Siemens BT200 tester , which will test for Cable A/B breaks , cable A/B being swopped , cable shield breaks and incorrect terminations etc.



What is PROFIBUS and how it works?

Profibus (from process field bus) is a protocol for field bus communication in automation technology. Profibus links automation systems and controllers with decentralized field devices such as sensors, actuators, and encoders. Profibus networks exchange data using a single bus cable.
