Place of Origin: | Guangdong, China |
Brand Name: | CABLEFORCE |
Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |
Model Number: | MC04C2LSAS22CK50 |
Minimum Order Quantity: | 100 |
---|---|
Price: | Negotiated |
Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
Delivery Time: | 2~3 weeks |
Payment Terms: | T/T |
Supply Ability: | 60000 pcs/month |
Reference Standard: | IEC 61076 2 101 | Termination: | Soldering |
---|---|---|---|
Connector Gender: | Female | Keyway Coding: | A Code |
Contacts Poles: | 4 Pin | Cable Length: | 5M,Customized |
Cable Jacket: | PVC | Cable Color: | Black |
Pollution Degree: | 3 | Keywords: | M12 Connector |
High Light: | SUS 316 4 Pin Female Connector,5M 4 Pin Female Connector,PVC Jacket M12 Circular Connector |
Connector Technical Data
|
|||||||||
Model Number
|

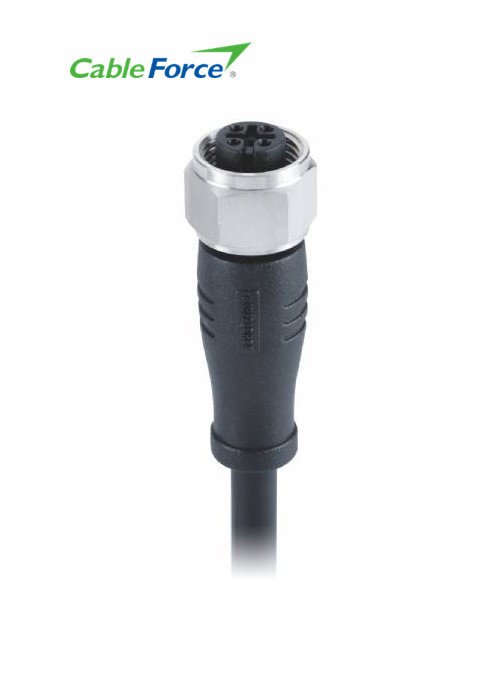

MC04C2LSAS22CK50
|
||||||||
Connectors No.
|
4 Pin
|
||||||||
Locking System
|
M12×1.0 Screw
|
||||||||
Rated Current | 4 A | ||||||||
Rated Voltage | 250 V | ||||||||
Impulse Voltage | 2500 V | ||||||||
Wire Gauge
|
AWG 22
|
||||||||
Over molding
|
TPU
|
||||||||
Screw nut | Brass, CNC, nickel plated | ||||||||
Rated Temperature
|
Flexible:-25℃~+80℃;Static:-40℃~+80℃ | ||||||||
Contact Carrier
|
TPU+ GF | ||||||||
Contact Plating
|
Au(Gold)
|
||||||||
Cable Jacket | PVC,PUR | ||||||||
Protection Degree
|
IP67,IP68
|
Application areas
FAQ
We accept bank transfer, T/T, Paypal , or other payment methods.Quotation will be send you within 24 hours after receiving your specific enquiry.
● How about your Standard Packing ?
Contact Person: Marco Yang
Tel: 13509009528
