Dongguan Cableforce Electronics Co., Ltd
Sales & Support:

|
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | CUL Certified, CE/ EMC, IP67, IP69K |

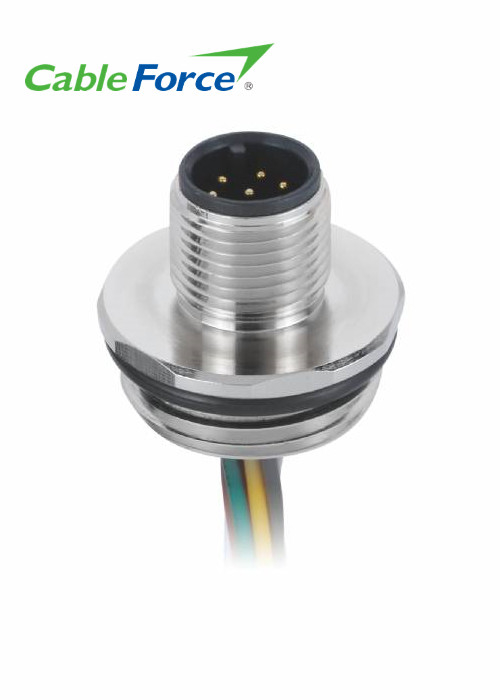

| Model Number: | MC5P3LSAB12-22W05 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Reference Standard: | IEC 61076-2-101 | Connector Gender: | Male Connector |
|---|---|---|---|
| Keywords1: | M12 Panel Connector | Keywords2: | Rear Fastened Connector |
| Contacts Poles: | 5 Pin | Keyway Coding: | A-Coding |
| Tightening Torque: | 0.6Nm | Cable Length: | 0.5M |
| Wire Color: | White, Brown, Green, Yellow, Grey, Pink, Blue, Red, Orange, Violet, Black, Light Purple | Wire Gauge: | AWG 22 |
| High Light: | Male Panel M12 A Code Connector,5 Pin M12 A Code Connector,Rear Fastened M12 Circular Connector |
||
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MC5P3LSAB12-22W05 | ||||||||
|
Connectors No.
|
5 Pin
|
||||||||
|
Rated Current
|
4 A
|
||||||||
|
Rated Voltage
|
60 V
|
||||||||
|
Impulse Voltage
|
1500V
|
||||||||
| O ring | FKM, Silicon | ||||||||
| Insulation resistance | ≥100MΩ | ||||||||
| Contact resistence | ≤5MΩ | ||||||||
| Termination | Soldering | ||||||||
| Contact carrier | PA66, GF | ||||||||
|
Pollution degree
|
3 | ||||||||
A-, B-, D- and X-coded are most prevalent. This is because the A-, B- and D-coded connectors have been around for a long time and are some of the original M12 connectors. X-coded connectors are becoming more popular for high-speed industrial Ethernet and will eventually replace the A and D-coded parts for Ethernet applications.
A new code, K-coded, is under development for ac power, while a L-coded design will be released soon for Profinet dc power.
●EMI-Shielded an Un-Shielded are available
●CE,IP67,UL Certified
●Using Best in Class Materials
FAQ
● Why do you choose Cableforce as your partner?
Cableforce is a company to supply customers with excellent quality cable and connectors at affordable price, Cableforce has the experience and skills to get the job done right.
● How can I get more information about Cableforce?
If you are interested in our product , welcome to visit our wesite to know more about our company and services.
Here are some of catalogue for your reference
