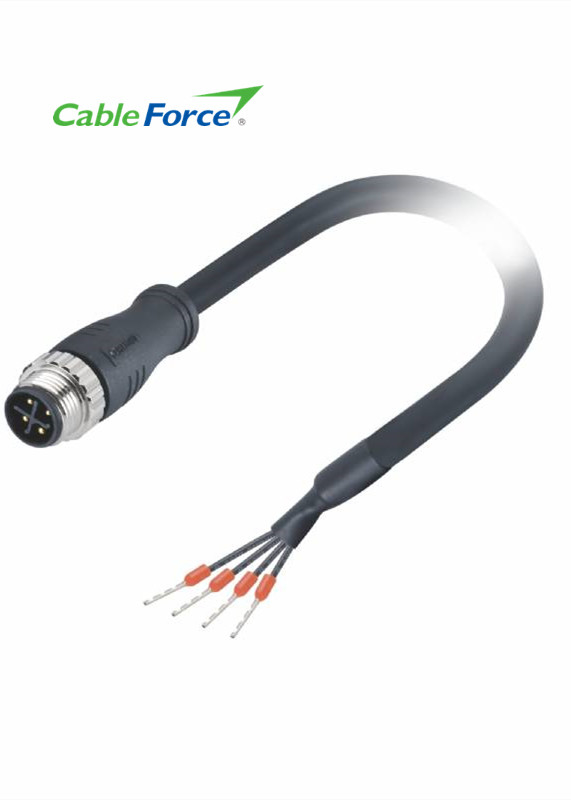

4 Pin UnShielded M12 S Coded Connector 12A Power Cable End With Terminals

4 Pin UnShielded M12 S Coded Connector 12A Power Cable End With Terminals

4 Pin UnShielded M12 S Coded Connector 12A Power Cable End With Terminals

4 Pin UnShielded M12 S Coded Connector 12A Power Cable End With Terminals

4 Pin UnShielded M12 S Coded Connector 12A Power Cable End With Terminals

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	MC04C1LCSB16CK10-T

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Keyword:	M12 S-Code	Reference Standard:	IEC 61076 2 111
Connector Gender:	Male Connector	Termination:	Crimping
Cable Length:	Customized	Contacts Poles:	2 + PE (3Pin)/3 + PE(4Pin)
Tightening Torque:	Recommend : 0.4Nm Max : 0.8Nm	EMI Shielding Or LED:	Unshielded
High Light:	4 Pin M12 S Coded Connector , UnShielded M12 S Coded Connector , 0.4Nm M12 Circular Connector

M12 S Coded Connector 4 Pin UnShielded 12A Power Cable End With Terminals

Connector Technical Data
Model Number	MC04C1LCSB16CK10-T
Brand Name	Cableforce
Contact	Brass
Rated Voltage	630V AC
Impulse Voltage	5000V
Wire Gauge	1.5mm²(AWG 16)
Application	Sensors
Tightening Torque	Recommend : 0.4Nm Max : 0.8Nm
Insulation Resistance	≥100MΩ
Contact Resistance	≤5mΩ
Contact Carrier	PA66 + GF
Pollution degree	3
Protection Degree	IP67,IP68

Description

Cableforce M12 S-Coding 3Pin(2+PE) or 4Pin (3+PE) Cable Connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 4-poles, compliant with IEC 61076-2-111 and mainly designed for servo motor's power transmission.360°Shielded or non-shielded versions are available.

Feature Of M12 Circular Connector

1.Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance

5. High temperature 260 degree ,solder reflowing
6. 90 degree angled or straight(180 degree) overmolded M8 connector with PUR or PVC cable
7. Cable jacket with different colors,grey,black,orange,yellow,blue,overmolded color can be customized.
8. Connector Screw/Nut:Plastic/Brass/Stainless steel
9. A-coding/B-coing/D-coding

FAQ

●Application Of IP68 Cable Connector

The ip68 cable connector is widely used in video transmission, transformer and network signal transmission equipment in the market; also in communication field, outdoor display screen, home network port, signal transmitting and receiving equipment, 4G network field, etc

● Advantage Of Waterproof Connector

Waterproof Connector is simply disassembled and assembled by locking the tail nut, so that the connector and the cable form a perfect fit, not easy to fall off, and its waterproof effect can achieve to IP67.

4 Pin UnShielded M12 S Coded Connector 12A Power Cable End With Terminals 0

M12 Cable.pdf

4 Pin UnShielded M12 S Coded Connector 12A Power Cable End With Terminals 1
