Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |
| Model Number: | MC17C3RSAB26CK10 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Reference Standard: | IEC 61076-2-101 | Gender: | Male To Female |
|---|---|---|---|
| Cable Specification: | AWG 26 | Termination: | Soldering |
| Application: | Sensors | Contact Carrier: | TPU+GF |
| Over-molding: | TPU | Pollution Degree: | 3 |
| Cable Color: | Black | Cable Length: | 1 M |
| High Light: | Male To Female M12 Circular Connector,Sensor M12 A Coded Connector,17 Pin M12 A Coded Connector |
||
|
Connector Technical Data
|
|||||||||
| Model Number | MC17C3RSAB26CK10 | ||||||||
| Contact No | 17 pin | ||||||||
| Coding | A Coding | ||||||||
| Rated Current | 1.5A | ||||||||
| Rated Voltage | 30V | ||||||||
|
Wire Gauge
|
0.14mm²(AWG 26)
|
||||||||
|
Connector Type
|
Right Angled | ||||||||
|
Contact Carrier
|
TPU+GF
|
||||||||
|
Screw Nut
|
Brass CNC Nickel plated
|
||||||||
|
Contact
|
Brass | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||

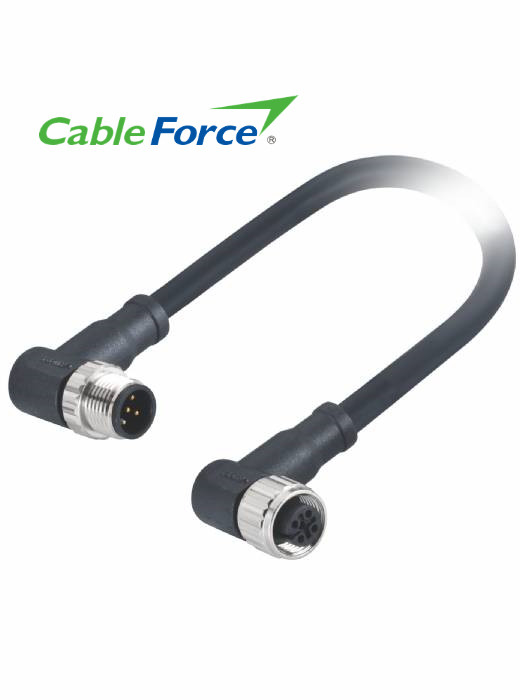

M12A-Coding 17Pin Cable Connectors with 12mm thread locking mechanism, rated IP67 and IP68 protection degree, contacts configuration covers pins of 17-poles, Compliant with IEC 61076-2-101 and mainly designed for Sensors, Actuators, Encoders, Servo motors.
● MC17C3RSAB26RK10
● MC04C3RSAB22RK20
● MC02C3RSAB16CK20
● MC08C3RSAB24CK50
FAQ
● What is an IP67 Connector?
IP67 waterproof connectors are typically mounted on an enclosure and are intended to prevent water and dust ingress into the enclosure. They are used frequently in applications where the enclosure is exposed to a harsh environment and water and dust ingress must be prevented.
●What are M12 connectors used for?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 2,2+3,3, 4, 5, 8,12, and 17 pins.
