Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |

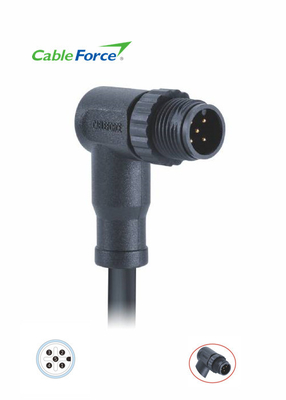

| Model Number: | MC05C1RSAP22RK50 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Contacts Poles: | 5 Pin | Cable Length: | Customized |
|---|---|---|---|
| Connector Gender: | Male Connector | Keyway Coding: | A Code |
| Reference Standard: | IEC 61076 2 101 | Screw Nut: | PA66+GF |
| Termination: | Soldering | O-Ring: | FKM / Silicon |
| High Light: | IP67 Waterproof M12 A Code Connector,5pin M12 A Code Connector,Plastic Screws M12 Circular Connector |
||
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MC05C1RSAP22RK50
|
||||||||
|
Connectors No.
|
5 Pin | ||||||||
| Contact | Brass | ||||||||
| Rated Voltage |
60 V
|
||||||||
| Rated Current | 4 A | ||||||||
|
Wire Gauge
|
0.34mm²(AWG 22)
|
||||||||
|
Tightening Torque
|
Recommend : 0.4Nm ,Max : 0.8Nm
|
||||||||
|
Insulation Resistance
|
≥100MΩ
|
||||||||
|
Contact Resistance
|
≤5mΩ
|
||||||||
|
Contact Carrier
|
TPU + GF | ||||||||
|
Pollution degree
|
3 | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
● IP67 IP68 IP69K and UL approvals
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.
● 360° Shielded or Un-Shielded versions are available
FAQ
● Can you produce customized product orders?
Sure. With 15+ years manufacturing experience, Cableforce are able to provide you with one-stop Custom Connector Solutions.
● Are all M12 connectors interchangeable?
M12 connectors are one of the most popular industrial connector solutions on the market. They are part of an IEC specification that ensures all A-Code connectors are interchangeable with each other.
●What is the difference between M8 and M12?
M8 connectors have M8 size mating thread, M12 connectors have M12 size mating thread, and so on. Another difference is the pin counts. M8 connectors have 3, 4, or 6 pins, M12 connectors have 2-17 pins, and M23 connectors have 6-19 pins (although the most common are 12 or 19 pins)
